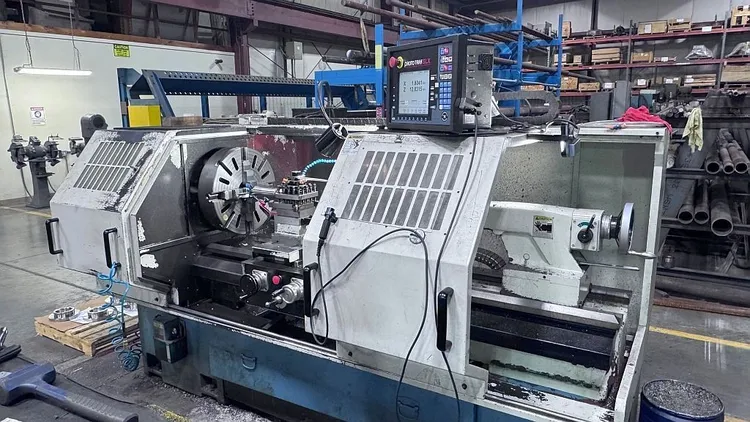

Used PROTOTRAK TRL2460SX | LATHES, COMBINATION, N/C & CNC

Swing Over Bed: 24" (609.6 mm)
Swing Over Cross Slide: 14.5" (368.3 mm)
Distance Between Centers: 60" (1,524 mm)
Height of Centers: 12" (304.8 mm)
Cross Slide Travel (X-axis): 12.5" (317.5 mm)
Spindle Bore: 4.09" (104.4 mm)
Spindle Taper: MT#8, reducing to MT#5
Spindle Nose: D1-8 Camlock

Spindle Speeds:
Low Range: 40–670 RPM
High Range: 100–1,800 RPM
Number of Speeds: 2
Tailstock: Standard with 6.88" (174.8 mm) quill travel,
3" (76.2 mm) quill diameter, and MT#5 taper

Coolant Tank Capacity: 15 gallons (56.8 liters)

Bed Dimensions:
Width: 15.75" (400 mm)
Height: 12.625" (320.7 mm)

Control & Drive System

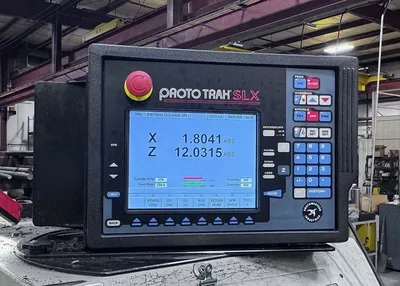

CNC Control: ProtoTRAK SLX with 10.4" color active-matrix LCD
Manual Operation: 2-axis digital readout (DRO)
Servo Motors: AC brushless with ground ball screws
Spindle Drive Motor: 15 HP
Lubrication: Automatic lubrication system
Coolant System: Integrated

Physical Dimensions & Weight
Approximate Weight: 7,500 lbs (3,402 kg)
Dimensions:
Length: 114" (2,896 mm)
Width: 53" (1,346 mm)
Height: 70" (1,778 mm)
