Used LODGE & SHIPLEY 25 Standard
Have one to sell?
ConditionUsed
1 available

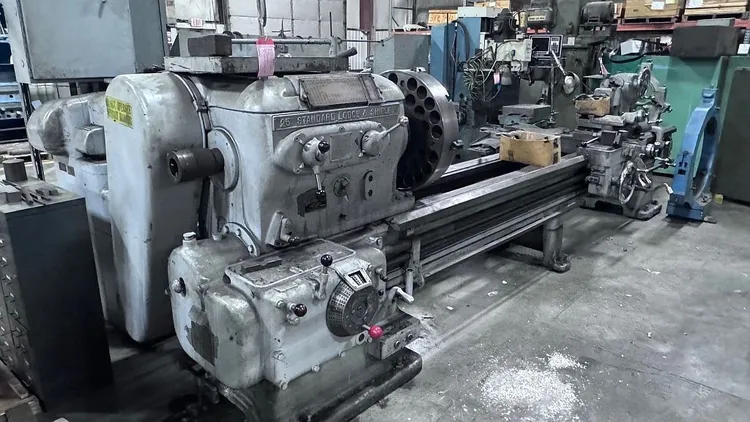

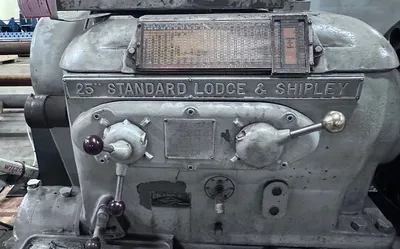

LODGE & SHIPLEY 25 Standard Lathe in used condition. Features a 25" swing, 35" gap swing, 108" center distance, and 2.5" spindle bore. Runs on 15 HP, handling up to 500 RPM with 24 speeds. Ideal for various machining needs.
• Swing Over Bed: 25 inches
• Swing Over Cross Slide: 19 inches
• Distance Between Centers: 108 inches
• Spindle Speeds: 24 speeds ranging from 9 to 500 RPM
• Spindle Bore: 2.5 inches
• Spindle Nose: D1-6 camlock
• Threading Range: Inch threads only
• Feeds: Inch feeds only
• Horsepower: 15 HP
• Voltage: 220/440 V, 3-phase
• Cycles: 60 Hz
• Approximate Weight: 20,000 lbs
• Approximate Dimensions: 192" x 72" x 72"
