Used MONARCH 16X54
Have one to sell?
ConditionUsed
1 available

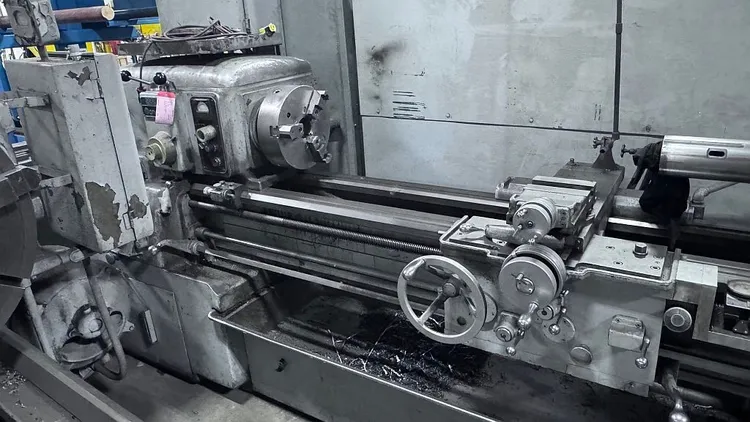

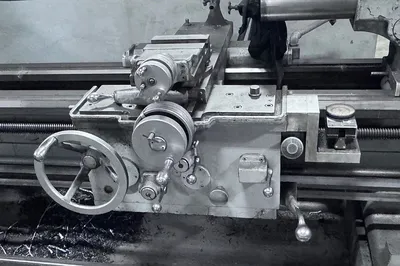

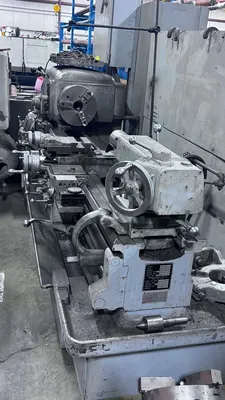

MONARCH 16X54 Engine Lathe, used condition. Features: 16.5" swing, 54" centers, 2.0625" spindle bore, 15 HP, up to 1,800 RPM. Robust design, D1-6 camlock, 1.5 to 92 TPI threading. Tailstock: 9" travel, #4 Morse Taper. Approx. 9,000 lbs.
• Swing Over Bed: 16.5 inches
• Swing Over Cross Slide: 10 inches
• Distance Between Centers: 54 inches
• Spindle Speeds: 30 to 1,800 RPM
• Spindle Bore: 2.0625 inches
• Spindle Nose: D1-6 camlock
• Threading Range: 1.5 to 92 TPI
• Feeds: 0.0011 to 0.070 inches per revolution
• Tailstock Quill Diameter: 2.875 inches
• Tailstock Quill Travel: 9 inches
• Tailstock Quill Taper: #4 Morse Taper
• Horsepower: 15 HP
• Electrical: 220/440 V, 3-phase, 60 Hz
• Approximate Dimensions: 10' L x 4' W x 4' H
• Overall Length: Approximately 10 feet
• Overall Width: Approximately 4 feet
• Overall Height: Approximately 4 feet
• Weight: Approximately 7990 LBS
