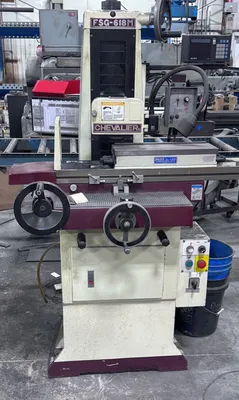

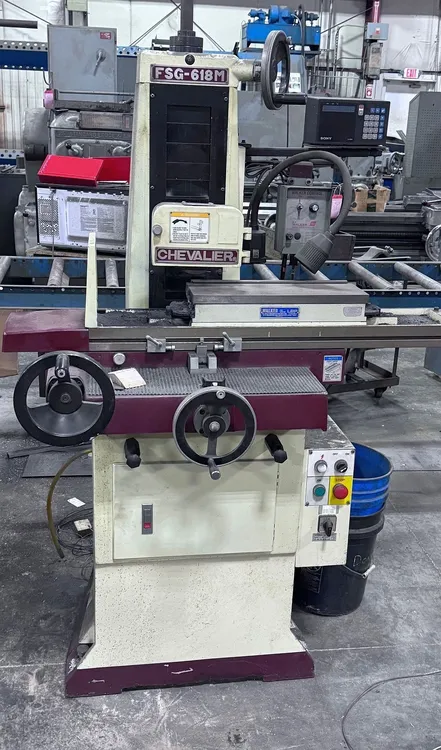

Used Chevalier FSG-618M Reciprocating Surface Grinder

General specifications
Model: FSG-618M

• Table Size: 6" x 18"
• Max Grinding Length: 18"
• Max Grinding Width: 8"
• Max Distance Table Surface to Spindle Centerline: 20"
• Spindle Speed: 3,450 RPM
• Grinding Wheel Size: 8" diameter x 1/2" width x 1-1/4" bore
Feed and accuracy
• Crossfeed Handwheel Graduation: 0.001"
• Crossfeed Micro Feed Graduation: 0.00005"
• Vertical Handwheel Graduation: 0.0001"
• Vertical Micro Feed Graduation: 0.00005"
• Dressing Depth: 0.01 mm (0.0004")
• Grinding Depth per Stroke: 0.001 mm (0.00005")
Drive and construction
• Spindle Motor: 2 HP (some variations may have 1.5 HP or 2HP)
• Spindle: High-precision cartridge-type spindle with 4 pairs of Class 7 (P4) angular contact ball bearings
• Guideways: Saddle saddle travels on hand-scraped double V-guideways laminated with Turcite-B
• Lubrication: Automatic lubrication system for saddle, column ways, and leadscrews
• Table Drive: Continuous loop, steel-core reinforced, cog timing belt system
Net Weight: 1,480 lbs
Specification subject to verification
