CLEEREMAN 30 Heavy Duty & Sensitive Single Spindle Drills
Have one to sell?
ConditionUsed
1 available

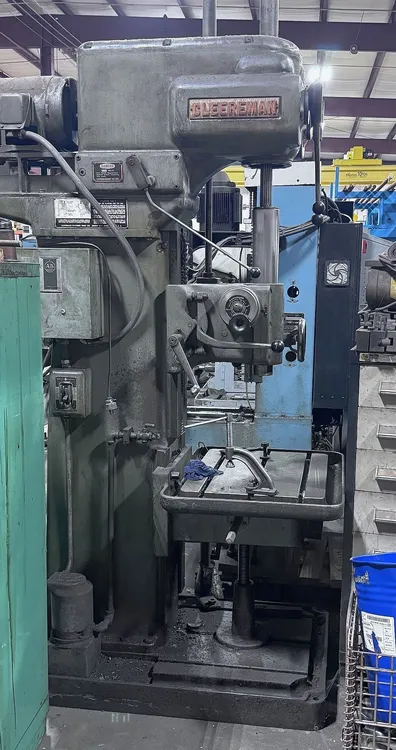

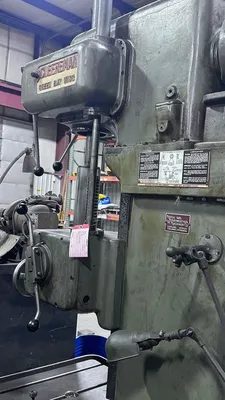

CLEEREMAN 30, a used heavy duty & sensitive single spindle drill, features a 30" swing, 7.5 hp power, and operates at 1,000 RPM. Designed for precise, powerful drilling tasks, this model offers reliability for various industrial applications.
Specifications:
• Swing / Throat / Center 30.00"
• Spindle Travel 12"
• Vertical Adjustment of Sliding Head 17"
• Spindle Taper #4 Morse Taper
• Center of Spindle to Front of Lower Column 14"
• Max Distance Spindle to Tabletop 25"
• Min Distance Spindle to Tabletop 13"
• Table Size 30" x 16"
• Distance Spindle Nose to Table 27"
• Vertical Adjustment of Table 12"
• Spindle Speeds 50 to 1000 RPM
• Spindle Feeds 0.005 to 0.045 IPR
• Spindle Quill Diameter 4"
• Spindle Quill Stroke 12"
• Power Feed Spindle Travel 12"
• Motor Power 7.5 HP
• Overall Dimensions (L x W x H) 80" x 68" x 110"
• Weight 5,000 lbs
