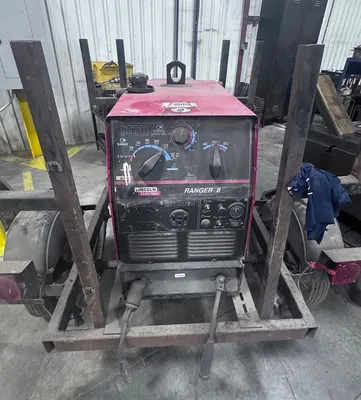

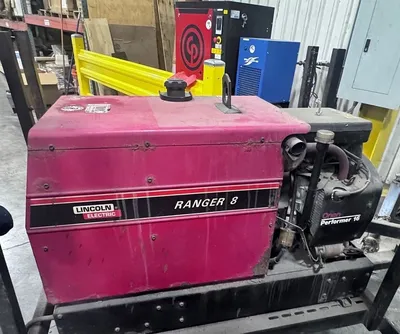

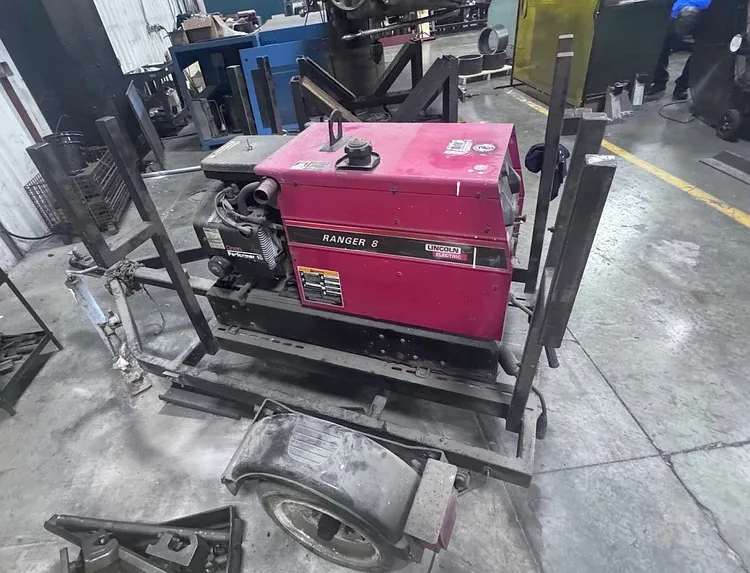

Used LINCOLN ELECTRIC RANGER 8 | WELDERS, ARC

The Lincoln Electric Ranger 8 is an engine-driven arc welder with a 10,000-watt generator that can also be used for welding. Key specs include: 250A AC/DC CC output, 50-250 amp welding amperage range, and a single-phase generator with 8,000 watts of continuous power (10,000 peak). It can perform AC/DC Stick, TIG, and general-purpose CV wire-feed welding.

Welding
• Rated Output: 250A AC/DC CC at 25V, 100% duty cycle
• Amperage Range: 50 to 250 amps
• Welding Processes: AC/DC Stick, AC/DC TIG, and general-purpose CV wire-feed welding
• CV Tap Settings: 60-200 amps
Generator
• Generator Watts: 8,000 watts (continuous)
• Peak Watts: 10,000 watts
• Phase: Single
• Outlets: One 240V outlet and four 120V outlets
• Auxiliary Power: Can operate simultaneously with welding
Engine
• Engine Type: Onan OHV engine
• Engine Horsepower: 20.5 HP
• Fuel Type: Gasoline
• Fuel Tank: 9-gallon capacity
• Features: Automatic engine shutdown for low oil pressure and an automatic engine idler for fuel economy
