Used TRAK QCM-1 TR | Bed Type Mills

Have one to sell?
(440) 359-2655
leads@wigglesworth.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Bed Type Mills
Manufacturer:
TRAK
Model:
QCM-1 TR
Stock #:
13191
Status:
For Sale

Description

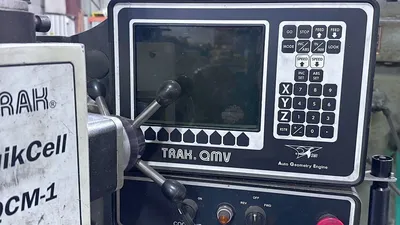

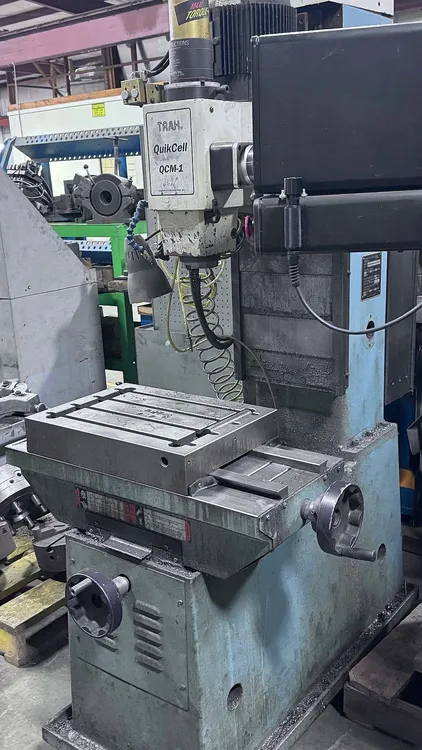

TRAK QCM-1 TR bed type mill, 3-axis, used condition. Features 14"x19.625" table, 14" long and cross travel, 2 HP spindle, #40 taper, 250-5,000 RPM range. Dimensions: 55"x31.5"x78". Weight: 3,000 lbs. Max table load: 880 lbs.

Table-W14"355.6 mm
Table-L19.625"498.47 mm
# Axis33
Travel-Long14"355.6 mm
Travel-Cross14"355.6 mm
Power2 hp1.5 kW
RPM0 RPM0 RPM
Taper#40#40
Dimensions55″ L × 31.5″ W × 78″ H55″ L × 31.5″ W × 78″ H
Weight3,000 lbs3,000 lbs

Specification
• X-Axis Travel 14″
• Y-Axis Travel 14″
• Z-Axis Travel 18″
• Table Size 19.625″ L × 14″ W
• Maximum Table Load 880 lbs
• Spindle Taper NST #40
• Spindle Speed Range 250 – 5,000 RPM
• Spindle Motor Power 2 HP
• Overall Dimensions (L × W × H) 55″ L × 31.5″ W × 78″ H
• Machine Weight 3,000 lbs
