New 2025 OB7-Stretch Collaborative Robot - CNC Tending / Deburring Package
Have one to sell?
ConditionNew
1 available
New
Discover the future of automation with the all-new 2025 OB7 Collaborative Robot CNC Tending Package by PRODUCTIVE ROBOTICS. Ideal for enhancing productivity, this state-of-the-art robot is ready to transform your workspace. Secure the latest model today.

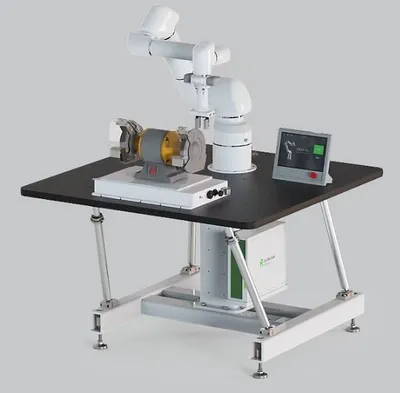

All inclusive deburring package
Complete out-of-the-box solution with everything needed to add OB7 automated deburring to your shop floor
Package includes
• OB7 Robot
• Controller & Zero-Teach tablet
• Robot Stand
• 47” x 47” Worktable
• PG2 Parallel Programmable Electric Deburring Stage
• Robot Machine Interface
• All Necessary Cables
Technical Specifications
• Mounts Most Common Bench Top Grinder Motors
• Automatic Adjustment as Media Wears
• Any Standard Deburring Media (Wheels) Can Be Used
• Force Range 0-14.9 lb
• Air Pressure 0-60 psi
• Max Supply Pressure 145 psi
• Air Consumption (at max supply pressure) 4.4 L/min
• Adjustment Range 50 mm (2”)
• Weight Capacity of Deburring Motor 22.6 kg (50 lbs)
• Dimensions 332 mm x 594 mm x 73 mm
• Parts Weight Capacity 4 kg (dependent on gripper)
• Deburring Force adjustable from: 1.5 lb to 14.9 lb
Specifications:
• # of Axis:.................... 7
• Payload:..................... 8.8 lb
• Horizontal Reach:...... 1.25m
• Reach:........................ 1.25m
• Repeatability:.............. +/- 0.1mm ~ .004"
• Speed:......................... 0-2+ m/s
• IP Class 61
• Joint Ranges:............. +/- 360 Degrees (all)
• Programming:............ No Programming Learns by Demonstration
• Safety:........................ ISO 10218-1 Compliant
• Robot Mounting Flange Diameter: 220 mm: OB7

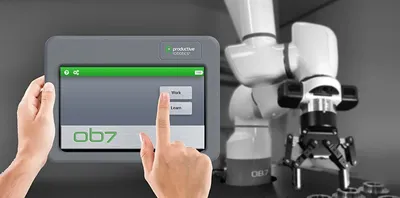

Zero programming tablet:
Using visual ‘tiles’ and a drag & drop interface, control tablet is incredibly intuitive to use.
Specifications
IP Rating: IP41
Connection: USB
Dimensions: 253 mm x 125 mm x 37 mm (10” x 5” x 1.5”)
Cable: 5 meters (16 ft)
USA direct factory support
Fast online support by our welding and robotics experts at our US factory. We speak your language.
Discover the future of automation with the all-new 2025 OB7 Collaborative Robot CNC Tending Package by PRODUCTIVE ROBOTICS. Ideal for enhancing productivity, this state-of-the-art robot is ready to transform your workspace. Secure the latest model today.
T.R. Wigglesworth Machinery Company is proud to offer the latest generation of Productive Robots.
OB7 ROBOTS ARE THE NEWEST GENERATION OF COLLABORATIVE ROBOTS
PROVIDING UNMATCHED AUTOMATION PRODUCTIVITY, FLEXIBILITY AND ACCURACY FOR BUSINESSES OF ALL SIZES.
OB7 robots bring home the competitive edge for manufacturers across all industries including defense, aerospace, electronics, medicine, food, and others. By providing consistent repeatable operation in production tasks, OB7 eliminates errors, reduces scrap, and improves throughput. From high volume production to short runs and high mix/low volume jobs, OB7 automates any task you throw at it. With zero complicated software programming, automation is fast and simple. Your existing staff can teach OB7 to automate in minutes.
Automation for all
OB7 collaborative robots (cobots) provide high quality, safe automation for small and large businesses alike, for practically any task that needs to be repeated—including machine tending, dispensing, finishing processes, and far more.
By ensuring that every second counts between cycles and processes while maintaining total accuracy, OB7 will provide fast gains in throughput, productivity, and consistency in production.
Zero programming means no coding, classes or special training needed. Anyone can teach OB7 to do hundreds of complex automation jobs simply and quickly. Just ‘show’ OB7 and it learns.
Consistent, nonstop deburring
Re-allocate manpower and resources elsewhere and let OB7 run 24/7 if needed. Job setup is simple and easy to begin work in minutes.

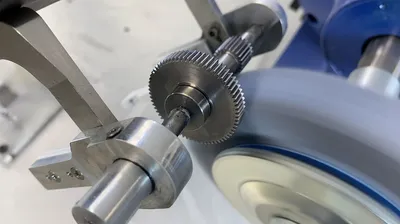

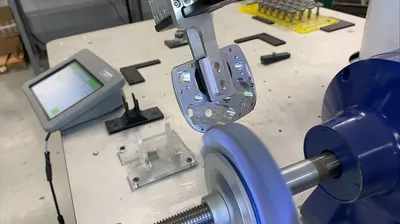

In operation, the Deburring Stage applies constant force to the part while the OB7 robot guides it along the deburring media. Constant force is maintained as the deburring wheels wear. The deburring motor is controlled by the OB7 robot.
Imperial
| # Axis | 7 |
| Payload | 4 kg |
| Horizontal Reach | 1.2 m |
| Reach | 1.25m |
| Repeatability | +/- 0.1mm ~ .004" |
| Speed | 0-2+ m/s |
| IP Class | 61 |
| Joint Ranges | +/- 360 Degrees (all) |
| Programming | No Programming Learns by Demonstration |
| Safety | ISO 10218-1 Compliant ; Power and force limited |
| Robot Mounting Flange Diameter | 220 mm: OB7 |
| Gripper Mounting Flange: | ISO 9409-1-50-4-M6 |
| Working Temperature: | 0-37 Celsius 32-100 Fahrenheit |
| Power Source | 100 - 240 VAC 50-60hz |
| Uninterruptible Power: | 10 minutes (robot stopped) for moving robot to new location |
| Power Consumption: | OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload |
| Linear Speed: | 2m/s max (Dependent on position) |
| Weight | 58 lbs. |
All inclusive deburring package
Complete out-of-the-box solution with everything needed to add OB7 automated deburring to your shop floor
Package includes
• OB7 Robot
• Controller & Zero-Teach tablet
• Robot Stand
• 47” x 47” Worktable
• PG2 Parallel Programmable Electric Deburring Stage
• Robot Machine Interface
• All Necessary Cables
Technical Specifications
• Mounts Most Common Bench Top Grinder Motors
• Automatic Adjustment as Media Wears
• Any Standard Deburring Media (Wheels) Can Be Used
• Force Range 0-14.9 lb
• Air Pressure 0-60 psi
• Max Supply Pressure 145 psi
• Air Consumption (at max supply pressure) 4.4 L/min
• Adjustment Range 50 mm (2”)
• Weight Capacity of Deburring Motor 22.6 kg (50 lbs)
• Dimensions 332 mm x 594 mm x 73 mm
• Parts Weight Capacity 4 kg (dependent on gripper)
• Deburring Force adjustable from: 1.5 lb to 14.9 lb
Specifications:
• # of Axis:.................... 7
• Payload:..................... 8.8 lb
• Horizontal Reach:...... 1.25m
• Reach:........................ 1.25m
• Repeatability:.............. +/- 0.1mm ~ .004"
• Speed:......................... 0-2+ m/s
• IP Class 61
• Joint Ranges:............. +/- 360 Degrees (all)
• Programming:............ No Programming Learns by Demonstration
• Safety:........................ ISO 10218-1 Compliant
• Robot Mounting Flange Diameter: 220 mm: OB7
Zero programming tablet:
Using visual ‘tiles’ and a drag & drop interface, control tablet is incredibly intuitive to use.
Specifications
IP Rating: IP41
Connection: USB
Dimensions: 253 mm x 125 mm x 37 mm (10” x 5” x 1.5”)
Cable: 5 meters (16 ft)
USA direct factory support
Fast online support by our welding and robotics experts at our US factory. We speak your language.
