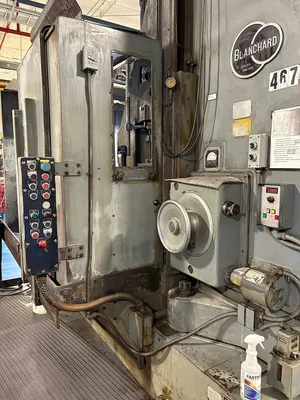

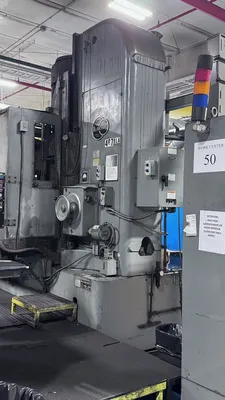

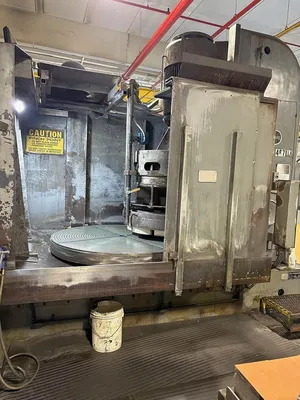

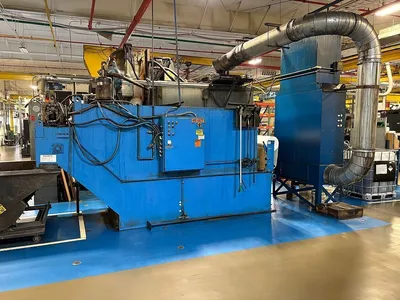

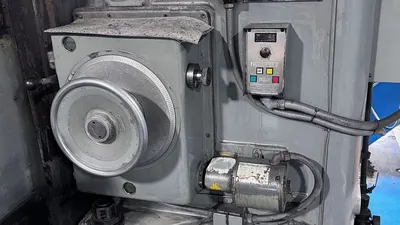

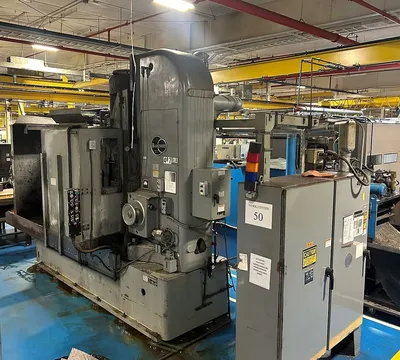

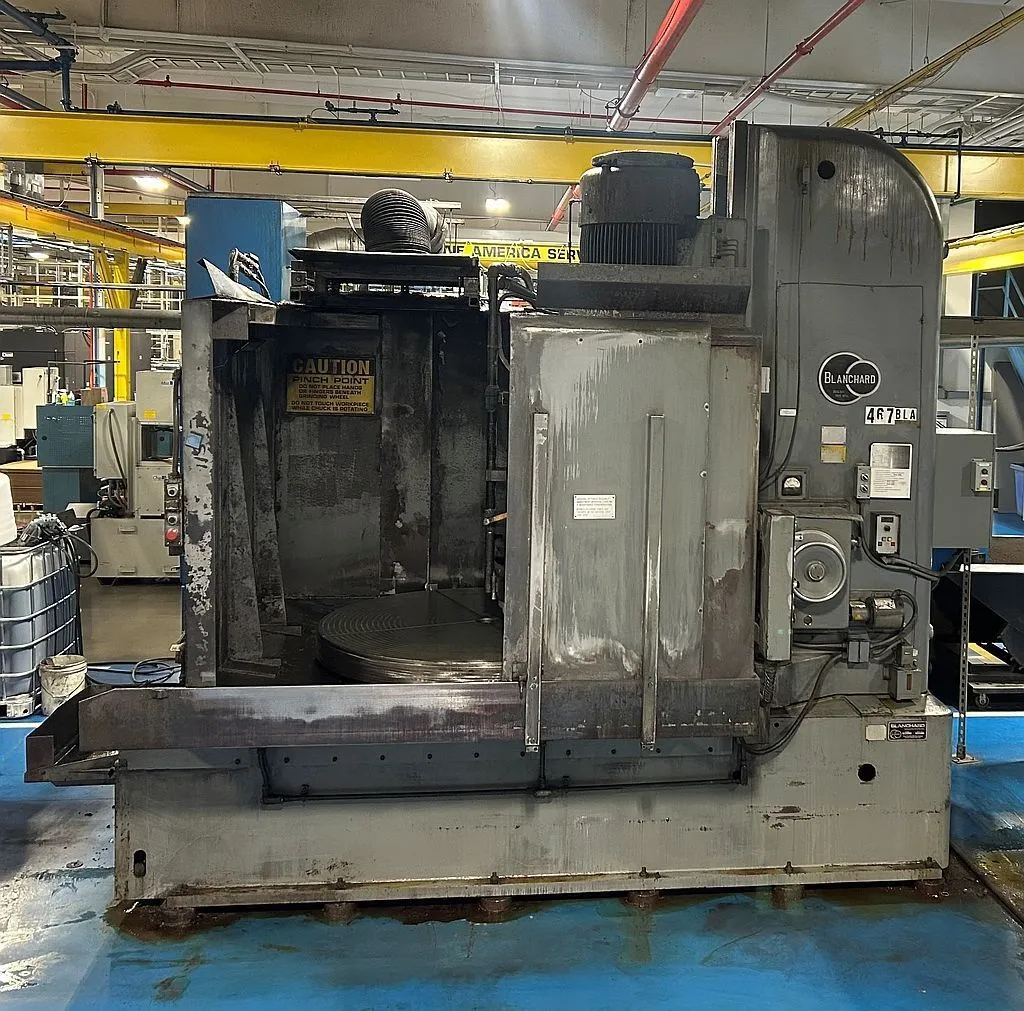

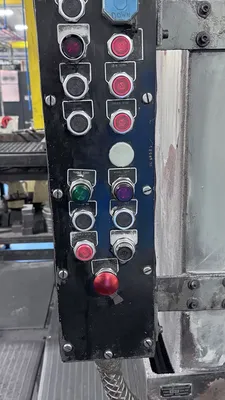

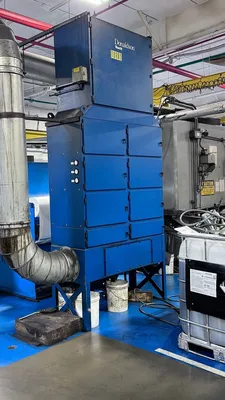

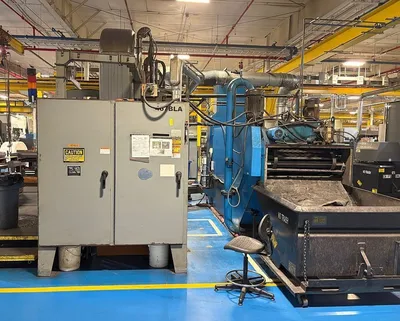

BLANCHARD 36HD-66 Heavy Duty Vertical Spindle Rotary Surface Grinding Machine

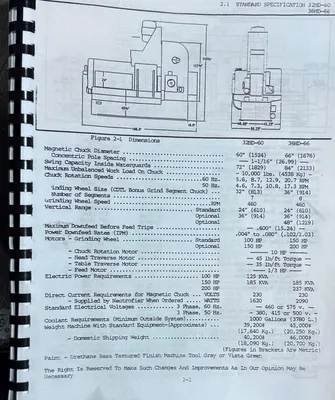

pecification 36HD-66

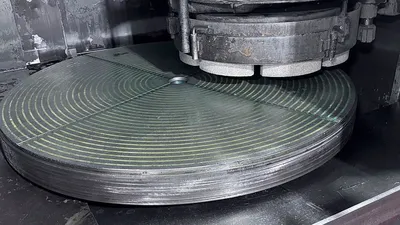

Magnetic Chuck Diameter 66" (1676 mm)
Concentric Pole Spacing 1-1/16" (26.99 mm)
Swing Capacity Inside Waterguards 84" (2133 mm)
Maximum Unbalanced Work Load on Chuck 10,000 lbs (4538 kg)
Chuck Rotation Speeds (60 Hz) 5.6, 8.7, 12.9, 20.7 RPM
Chuck Rotation Speeds (50 Hz) 4.7, 7.3, 10.8, 17.3 RPM

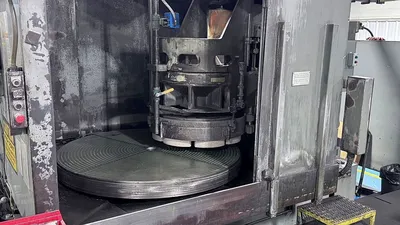

Grinding Wheel Size (CDWL Bonus Grind Segment Chuck) 36" (914 mm)
Number of Segments 40
Grinding Wheel Speed 860 RPM
Vertical Range (Standard) 24" (610 mm)
Vertical Range (Optional) 36" (914 mm)
Maximum Downfeed Before Feed Trips 0.600" (15.24 mm)
Power Downfeed Rates (IPM) 0.004" – 0.080" (0.102–2.03 mm)

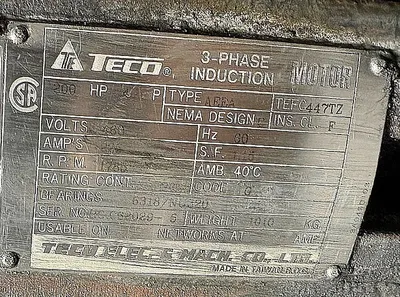

Motors – Grinding Wheel 200 HP (High output Option)
Chuck Rotation Motor 20 HP
Head Traverse Motor 10 HP
Table Traverse Motor 3 HP
Feed Motor 3 HP

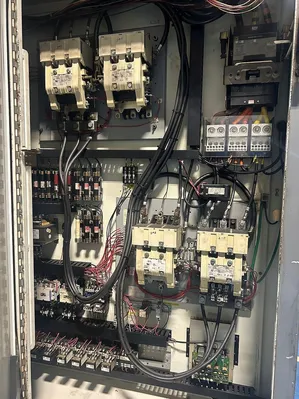

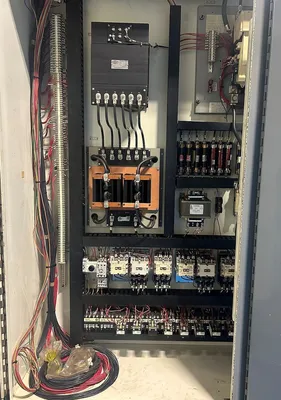

Electric Power Requirements 185 KVA
Direct Current for Magnetic Chuck 230 V
Standard Electrical Voltages 3 Phase – 230, 380, 415, or 460 V (50 / 60 Hz)

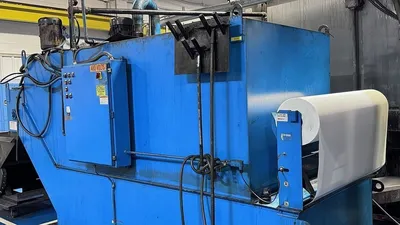

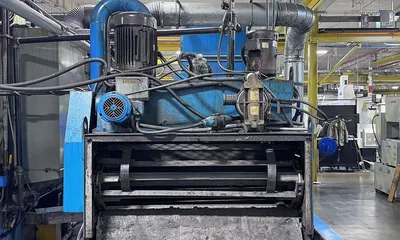

Coolant Requirements (Minimum Outside System) 1,000 Gallons (3780 L)
Weight (Standard Equipment, Approx.) 45,000 lbs (20,400 kg)
Domestic Shipping Weight (Approx.) 46,000 lbs (20,900 kg)
Paint Urethane Base Textured Finish — Machine Tool Gray or Vista Green
Overall Dimensions (from drawing) Length ≈ 143 in (363 cm) × Width ≈ 89.25 in (227 cm) × Height ≈ 117 in (297 cm)
