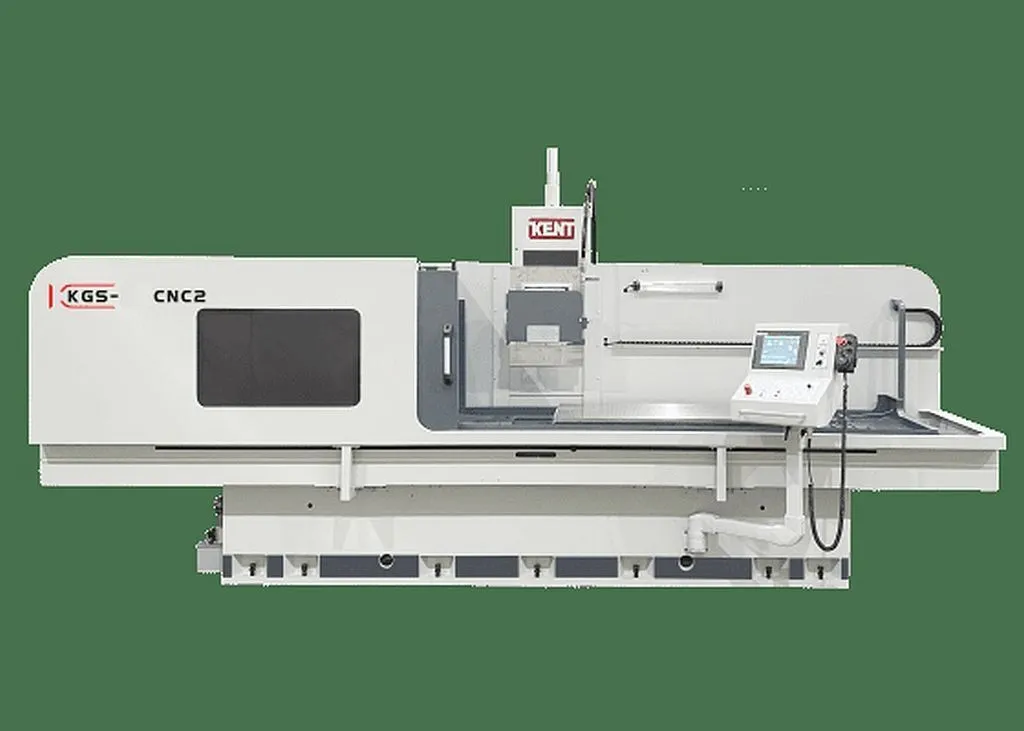

KENT KGS-820CNC2 High Precision Surface Grinder "In Stock Now"
Have one to sell?
ConditionNew
500 available
New
Discover the KENT KGS-820CNC2 high precision surface grinder, model year 2025. New and ready for precision work with a 2000 x 800 mm table and 2400 mm longitudinal travel. Comes with essential accessories and advanced cooling systems.
SPECIFICATIONS: .......... KGS-820CNC2
TABLE WORKING AREA (MM): .......... 2000 X 800
LONGITUDINAL TRAVEL (MM): .......... 2400
CROSSFEED TRAVEL (MM): .......... 840
DISTANCE FROM SPINDLE CENTER TO TABLE (MM): .......... 850
WHEEL DIMENSION (MM): .......... 508 X 80 X 203.2
TABLE LOAD INCLUDING MAGNETIC CHUCK (KG): .......... 2300 KG
STANDARD ACCESSORIES .
1 GRINDING WHEEL / 1 PCS
2 WHEEL BALANCING STAND AND ARBOR / 1 SET
3 WHEEL BALANCING TABLE / 1 SET
4 WHEEL FLANGEE & EXTRACTOR / 1 SET
5 TOOL BOX & TOOLS / 1 SET
6 WHEEL DRESSING DIAMOND TIP & HOLDER / 1 SET
7 WORKING LAMP / 1 SET
8 LEVELING PAD & BOLTS / 1 SET
9 OIL CHILLER / 1 SET
10 SPINDLE MOTOR INVERTER / 1 SET
11 FANUC CONTROLLER / 1 SET
12 COOLANT SYSTEM WITH MAGNETIC SEPARATOR 1 PCS
13 ELECTRO MAGNETIC CHUCK 800*2000 MM 1 PCS
14 FULL ENCLOSED GUARD 1 SET
OPTIONAL
1 EXTRA WHEEL FLANGE 1 PCS US $245
2 COOLANT SYSTEM WITH MAGNETIC SEPARATOR & PAPER FILTER 1 PCS US $2,130
Machine Features:
• The working table executes only longitudinal movements. Double V guide-ways are laminated with Turcite-B hand scraped to obtain smooth stick-slip free movements.
• The column carries out only crossfeed movements. The column slide is guided by roller linear guides, with high precision ball-screws and driven by servo motor.
• The spindle housing carries out only vertical movements. The Y-axis is also guided by roller linear guides, with high precision ball-screws and driven by servo motor.
• The flanged cartridge type spindle is supported by 3 pairs of Class 7 (CP4) super precision angular contact ball bearings, preloaded and select-fitted into spindle cartridge.
• The dresser is mounted on right side of table.
• The automatic re-circulating lubrication system supplies lubricant to all of the guide ways and lead screws as the machine operates.
• The automatic re-circulating lubrication system supplies lubricant to all of the guide ways and lead screws as the machine operates.
• Standard oil cooler unit for hydraulic system. Prevents temperature rises and thermal deformation is reduced to a minimum.
• An independent control box with an ergonomically designed panel offers a comfortable and convenient operation environment.
• Control available in Fanuc, Siemens, Mitsubishi and Heidenhain.
• Sizes available from ( 400~800 )mm by ( 800~2000)mm.
Discover the KENT KGS-820CNC2 high precision surface grinder, model year 2025. New and ready for precision work with a 2000 x 800 mm table and 2400 mm longitudinal travel. Comes with essential accessories and advanced cooling systems.
T.R. Wigglesworth Machinery Co. has proudly represented Kent International Machine Tools since 1982. Many of our clients have experienced their Kent machines operating worry-free for over (30) thirty years. It is this excellence concerning reliability and value that Kent owners depend upon.
Today Kent celebrates over (50) fifty years in business. Their (6) six facilities total over 120,000 square meters of space. Kent employs over 400 people who have mastered the craft of producing precision grinding machines including surface grinders, both manual & PLC operated, cylindrical and large way type grinding machines. Capitalizing upon the design of their large, fixed beam, double column way grinding machines, Kent was very innovative to develop and specialize in the design of Heavy-Duty Double Column Machining Centers.
T.R. Wigglesworth Machinery Co. looks forward to working with you to find the right KENT machine to meet your requirements. We support all Kent machines through providing spare parts as well as technical machine service.
Imperial
| Table-W | 31.49" |
| Table-L | 78.74" |
| Horz/Vert | Horz |
| Grinding Wheel Width | 3.14" |
| Grinding Wheel Dia. | 20" |
| Control | CNC (FANUC) |
| Dimensions | 2400 x 840 x 850 |
| Weight | 2300 |
SPECIFICATIONS: .......... KGS-820CNC2
TABLE WORKING AREA (MM): .......... 2000 X 800
LONGITUDINAL TRAVEL (MM): .......... 2400
CROSSFEED TRAVEL (MM): .......... 840
DISTANCE FROM SPINDLE CENTER TO TABLE (MM): .......... 850
WHEEL DIMENSION (MM): .......... 508 X 80 X 203.2
TABLE LOAD INCLUDING MAGNETIC CHUCK (KG): .......... 2300 KG
STANDARD ACCESSORIES .
1 GRINDING WHEEL / 1 PCS
2 WHEEL BALANCING STAND AND ARBOR / 1 SET
3 WHEEL BALANCING TABLE / 1 SET
4 WHEEL FLANGEE & EXTRACTOR / 1 SET
5 TOOL BOX & TOOLS / 1 SET
6 WHEEL DRESSING DIAMOND TIP & HOLDER / 1 SET
7 WORKING LAMP / 1 SET
8 LEVELING PAD & BOLTS / 1 SET
9 OIL CHILLER / 1 SET
10 SPINDLE MOTOR INVERTER / 1 SET
11 FANUC CONTROLLER / 1 SET
12 COOLANT SYSTEM WITH MAGNETIC SEPARATOR 1 PCS
13 ELECTRO MAGNETIC CHUCK 800*2000 MM 1 PCS
14 FULL ENCLOSED GUARD 1 SET
OPTIONAL
1 EXTRA WHEEL FLANGE 1 PCS US $245
2 COOLANT SYSTEM WITH MAGNETIC SEPARATOR & PAPER FILTER 1 PCS US $2,130
Machine Features:
• The working table executes only longitudinal movements. Double V guide-ways are laminated with Turcite-B hand scraped to obtain smooth stick-slip free movements.
• The column carries out only crossfeed movements. The column slide is guided by roller linear guides, with high precision ball-screws and driven by servo motor.
• The spindle housing carries out only vertical movements. The Y-axis is also guided by roller linear guides, with high precision ball-screws and driven by servo motor.
• The flanged cartridge type spindle is supported by 3 pairs of Class 7 (CP4) super precision angular contact ball bearings, preloaded and select-fitted into spindle cartridge.
• The dresser is mounted on right side of table.
• The automatic re-circulating lubrication system supplies lubricant to all of the guide ways and lead screws as the machine operates.
• The automatic re-circulating lubrication system supplies lubricant to all of the guide ways and lead screws as the machine operates.
• Standard oil cooler unit for hydraulic system. Prevents temperature rises and thermal deformation is reduced to a minimum.
• An independent control box with an ergonomically designed panel offers a comfortable and convenient operation environment.
• Control available in Fanuc, Siemens, Mitsubishi and Heidenhain.
• Sizes available from ( 400~800 )mm by ( 800~2000)mm.
