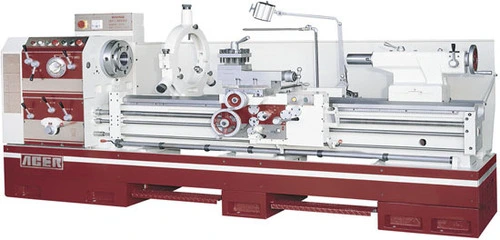

New ACER Dynamic-29160G Precision Engine Lathe

Dynamic-29160G
General Capacity:
• Center height..........14-3/4"
• Swing over bed..........29-1/8"
• Swing over gap (Gap type only)..........37-25/32"
• Swing over cross slide..........20-1/2"
• Distance between centers..........160"
Main Spindle:
• Spindle nose..........ASA 1-11 or D1-11
• Spindle bore diameter..........4-1/8"
• Type of spindle nose..........108 x 1:12
• Taper of center..........MT.#5
• Spindle speeds..........25 - 1200 rpm (12 steps)
Carriage:
• Cross slide travel..........18-1/4"
• Compound rest travel..........9"
• Max. size cutting tool..........1" x 1"
Tailstock:
• Spindle diameter..........3-1/32"
• Spindle travel..........7"
• Taper of center..........MT.#5
Bed:
• Bed length..........205"
• Bed width..........16-1/2"
• Width of gap..........20-1/4"
Threading & Feeding:
• System..........Inch/Metric
• Pitch of leadscrew..........1-1/2", 4 TPI
• Metric pitch threads..........0.514mm/pitch (31 kinds)
• Inch pitch threads..........256 TPI (45 kinds)
• Module pitch threads..........0.257 M.P. (23 kinds)
• Diametral pitch threads..........4~112 D.P. (43 kinds)
• Range of longitudinal feeds..........0.0012 - 0.0287"/rev. .......... 0.03 - 0.73mm/rev.
• Range of cross feeds..........0.0004 - 0.0118"/rev. .......... 0.01 - 0.03mm/rev.
Power:
• Main drive motor..........15 HP
• Rapid traverse motor..........1/2 HP (optional)
• Coolant pump motor..........1/8 HP
Dimensions:
• Floor dimension..........209" x 50"
• Net weight..........10070 lbs
• Gross weight..........11500 lbs
• Packing dimension..........226" x 50 x 74"

Machine Features:
• Ampere meter for indicating power consumption.
• Magnetic multiple-disc clutches in the headstock are used for efficient starting and reversing the spindle.
• Manual jog button.
• 12 speeds range from 25 to 1,200 RPM.
• Oil flood indicator.
• One of the outside gears on the gear box is designed with a safety ring to protect it from damage.
• Optional 2nd starting lever.
• Drip-proof 15 HP spindle motor.
• Magnetic disc brake with foot pedal allows for rapid control of the spindle rotation.
• Hardened & ground bedways at Rockwell C 55°.
• Electro-trochoid pump forces lubrication oil to all running parts outside of the headstock.
• Handwheel with direct inch/metric reading micro-collar.
• Precision ground cross slideways.
• Saddle-lock device for heavy cutting.
• Rapid four directional travel.
• Safety clutched and longitudinal lead screw.
• 4 TPI and oil bathed longitudinal lead screw.
• Oil level indicator.
• Forward/stop/reverse lever with safety device.
• Multi-position length stop.
• Removable chip pan.
• Machine bed with FC-30 casting iron.
• Machine weighs in at 10,070 lbs.

Standard Accessories:
• 20" D1-11 four jaw chuck
• 20" face plate
• 16" drive plate
• Built-in coolant system
• 4-way tool post
• Longitudinal carriage stop
• Chuck guard w/ emergency stop
• Halogen work light
• 12" adaptor plate
• Toolbox w/ tools
• Follow rest
• One steady rest (3.1"-9.5" long tip, bearing type) (7.8"-14.5" short tip, bearing type)
• Followable splash guard (34" wide) (60", 80" w/ full length splash guard)

Optional Accessories:
• 24" 4-jaw independent chuck (D1-11) w/ direct mount
• Follow rest (0.4"-3.4")
• Face plate (24")
• "Aloris" tool post & 4 holders (#5-BS)
• "Aloris" tool post & 6 holders (#5-SET)
• "Dorian" tool post with holders (SD50DA-TS)
• Micrometer stop
• Six position carriage stop
• Taper turning attachment
• Installation fee for taper turning attachment
• "Newall" 2-axis DRO (18" x 120" travel)
• Installation fee for DRO
