New ACER Dynamic-2240L Precision Engine Lathe
Have one to sell?
ConditionNew
New

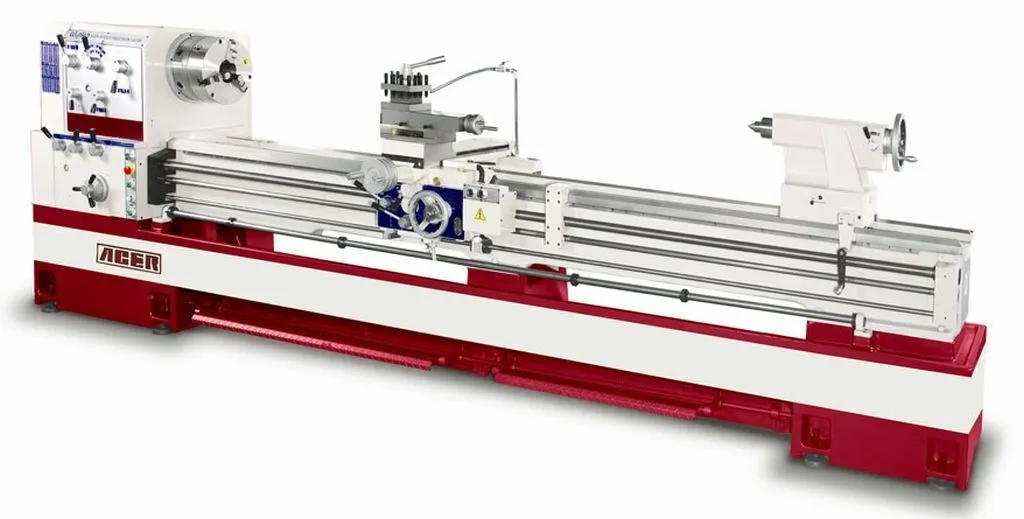

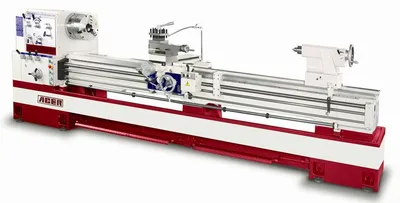

Introducing the ACER Dynamic-2240L Precision Engine Lathe, a new addition for those seeking high performance. With a 22" swing, 39.4" between centers, and a robust 10 HP motor, this lathe supports both inch/metric threading with a Meehanite casting bed.
2240L Specifications:
General Capacity:
• Swing over bed.......... 560 mm/22"
• Swing over gap.......... 788 mm/31"
• Swing over cross slide.......... 340 mm/13.4"
• Distance between centers.......... 1000 mm/39.4"
• Width of bed.......... 400 mm/15.7"
Headstock:
• Spindle nose.......... D1-8 / D1-11 (Opt.)
• Spindle bore.......... 85 mm/115 mm (Opt.)/3.3"/4.5" (Opt.)
• Spindle speeds.......... 15 - 1500 R.P.M. (12 steps)/10 - 1000 R.P.M. (12 steps, Opt.)
• Taper of spindle bore.......... MT 7
Threading:
• Inch threads range.......... 4~56 T.P.I.
• Metric threads range.......... P0.5~P14
• Longitudinal feeds range.......... 0.05~0.82 mm/0.002"~0.032"
• Cross feeds range.......... 0.02~0.40 mm/0.0008"~0.016"
• Leadscrew diameter.......... 38 mm/1.5"
• Leadscrew pitch.......... 4 T.P.I. or 6 mm/0.24"
• Taper of tail center.......... MT 5
Carriage:
• Compound rest travel.......... 200 mm/7.9"
• Cross slide travel.......... 375 mm/14.8"
Tailstock:
• Tail spindle travel.......... 165 mm/6.5"
• Tail spindle diameter.......... 85 mm/3.3"
Power:
• Main drive motor.......... 10 HP (7.5 KW)/10HP (7.5 KW 6P Opt.)
• Coolant pump.......... 1/8 HP (0.1 KW)
Dimensions:
• Machine Dimensions.......... 238 x 103 x 126 cm/94" x 41" x 50"
• Packing Dimensions.......... 250 x 115 x 194 cm/98" x 45" x 76"
• Net Weight.......... 2200 kgs/4850 lbs
• Gross Weight.......... 2300 kgs/5071 lbs
Features:
• The 22" series is available in 40", 60", 80", 100", 120" and 160" distance between centers.
• 3.34" spindle bore with D1-8 spindle nose.
• 10 HP spindle motor for 220V / 440V / 3 phase / 60 Hz wiring.
• Spindle speed 15 - 1500 RPM for 3.34" bore; opt. 10 - 1000 RPM for 4.53" bore.
• Auto. feed & threading are interlocked to prevent simultaneous functions.
• Thermal treated Meehanite casting bed; bed hardness reaches HS70.
• Heat treated and precision ground alloy gears.
• Universal gearbox for both inch/metric thread & conversion chart.
• Automatic longitudinal multiple feed stop.
• Bed width 15.7"
Standard Accessories:
• 12" D1-11 three jaw chuck
• Followable splash guard
• Steady rest: Bronze tip (3.14" - 10.62")
• Built-in coolant system
• 4-way tool post
• Longitudinal carriage stop
• Tool box w/ tools
• Halogen work light
Optional Accessories:
• Upgrade to 4.53" bore (D1-11 nose w/ 15 HP spindle motor)
• 20" 4-jaw independent chuck (4.53" spindle bore)
• Follow rest: Bronze tip (0.78" - 3.93")
• 20" face plate (D1-11)
• "Aloris" tool post & 4 holders (#5-BS)
• "Aloris" tool post & 6 holders (#5-SET)
• "Dorian" tool post & 4 holders (SD50 DA-TS)
• Micrometer stop
• Four position carriage stop
• Taper turning attachment
• Installation fee for taper turning attachment
• 5C collet closer (lever-type)
• Installation fee for collet closer
• 5C collet set (1/16" - 1 1/16" x 16ths; 17 pcs/set)
• "Magnescale" 2-axis D.R.O. (12" x 40"/60"/80"/100"/120"/160")
• "Newall" 2-axis D.R.O. (14" x 40"/60"/80"/100"/120"/160")
