New ACER Dynamic-2260L Precision Engine Lathe
Have one to sell?
ConditionNew
New
ACER Dynamic-2260L Precision Engine Lathe is now available. With a 22" swing, 59.1" centers, 3.3" spindle bore, and a 10 HP motor, it delivers robust performance. Features a universal gearbox, thermal treated bed, and precision ground gears.

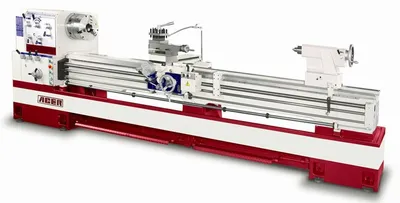

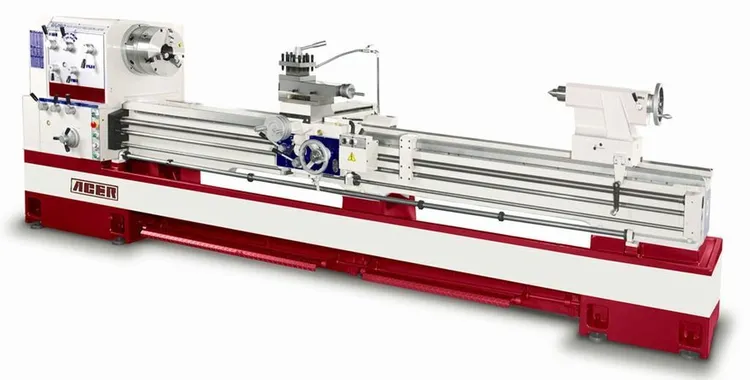

ACER Dynamic Lathe 2260L
General Capacity:
• Swing over bed .......... 560 mm/22"
• Swing over gap .......... 788 mm/31"
• Swing over cross slide .......... 340 mm/13.4"
• Distance between centers .......... 1500 mm/59.1"
• Width of bed .......... 400 mm/15.7"
Headstock:
• Spindle nose .......... D1-8/D1-11 (Opt.)
• Spindle bore .......... 85 mm/115 mm (Opt.)/3.3"/4.5" (Opt.)
• Spindle speeds .......... 15 to 1500 R.P.M. (12 steps)/10 to 1000 R.P.M. (12 steps, Opt.)
• Taper of spindle bore .......... MT 7
Threading:
• Inch threads range .......... 2 to 56 T.P.I.
• Metric threads range .......... P 0.5 to P 14
• Longitudinal feeds range .......... 0.05 to 0.82 mm/.002" to 0.032"
• Cross feeds range .......... 0.02 to 0.40 mm/0.0008" to 0.016"
• Leadscrew diameter .......... 38 mm/1.5"
• Leadscrew pitch .......... 4 T.P.I. or 6 mm/0.24"
Carriage:
• Taper of tail center .......... MT 5
• Compound rest travel .......... 200 mm/7.9"
• Cross slide travel .......... 375 mm/14.8"
Tailstock:
• Tail spindle travel .......... 165 mm/6.5"
• Tail spindle diameter .......... 85 mm/3.3"
Power:
• Main drive motor .......... 10 HP (7.5 KW)/10HP (7.5 KW 6P Opt.)
• Coolant pump .......... 1/8 HP (0.1 KW)
Dimensions:
• Machine Dimensions .......... 290 x 103 x 126 cm/114" x 41" x 50"
• Packing Dimensions .......... 300 x 115 x 194 cm/118" x 45" x 76"
• Net Weight .......... 2550 kgs/5512 lbs
• Gross Weight .......... 2650 kg/5842 lbs
***NOTE! The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performances of the machines without notice. All specifications shown above are for reference only.
Features:
• The 22" series is available in 40", 60", 80", 100", 120" and 160" distance between centers.
• 3.34" spindle bore with D1-8 spindle nose.
• 10 HP spindle motor for 220V / 440V / 3 phase / 60 Hz wiring.
• Spindle speed 15 - 1500 RPM for 3.34" bore; opt. 10 - 1000 RPM for 4.53" bore.
• Auto. feed & threading are interlocked to prevent simultaneous functions.
• Thermal treated Meehanite casting bed; bed hardness reaches HS70.
• Heat treated and precision ground alloy gears.
• Universal gearbox for both inch/metric thread & conversion chart.
• Automatic longitudinal multiple feed stop.
• Bed width 15.7"
Standard Accessories:
• 12" D1-11 three jaw chuck
• Followable splash guard
• Steady rest: Bronze tip (3.14" - 10.62")
• Built-in coolant system
• 4-way tool post
• Longitudinal carriage stop
• Tool box w/ tools
• Halogen work light
Optional Accessories:
• Upgrade to 4.53" bore (D1-11 nose w/ 15 HP spindle motor)
• 20" 4-jaw independent chuck (4.53" spindle bore)
• Follow rest: Bronze tip (0.78" - 3.93")
• 20" face plate (D1-11)
• "Aloris" tool post & 4 holders (#5-BS)
• "Aloris" tool post & 6 holders (#5-SET)
• "Dorian" tool post & 4 holders (SD50 DA-TS)
• Micrometer stop
• Four position carriage stop
• Taper turning attachment
• Installation fee for taper turning attachment
• 5C collet closer (lever-type)
• Installation fee for collet closer
• 5C collet set (1/16" - 1 1/16" x 16ths; 17 pcs/set)
• "Magnescale" 2-axis D.R.O. (12" x 40"/60"/80"/100"/120"/160")
• "Newall" 2-axis D.R.O. (14" x 40"/60"/80"/100"/120"/160")
