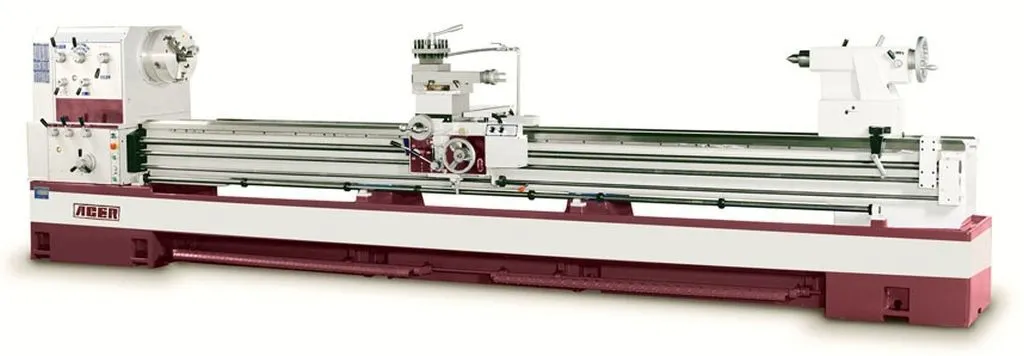

New ACER Dynamic-3040L Precision Engine Lathe
Have one to sell?
ConditionNew
New
New ACER Dynamic 3040L engine lathe featuring a 30" swing, 39.4" between centers, 4.5" spindle bore, 15 hp power, and 1,000 RPM speed. Ideal for precision machining, with a 21.3" swing over cross slide.
ACER Dynamic Lathe 3040L
General Capacity:
• Swing over bed .......... 760 mm/29.9"
• Swing over gap .......... 990 mm/39"
• Swing over cross slide .......... 540 mm/21.3"
• Distance between centers .......... 1000 mm/39.4"
• Width of bed .......... 400 mm/15.7"
Headstock:
• Spindle nose .......... D1-11
• Spindle bore .......... 115 mm/4.5"
• Spindle speeds .......... 10 - 1000 R.P.M. (12 steps)
• Taper of spindle bore .......... MT 7
Threading:
• Inch threads range .......... 2 to 56 T.P.I.
• Metric threads range .......... P 0.5 to P 14
• Longitudinal feeds range .......... 0.06 - 0.82 mm/0.002" - 0.032"
• Cross feeds range .......... 0.02 - 0.40 mm/0.0008" - 0.016"
• Leadscrew diameter .......... 38 mm/1.5"
• Leadscrew pitch .......... 4 T.P.I. or 6 mm/0.24"
Carriage:
• Taper of tail center .......... MT 5
• Compound rest travel .......... 200 mm/7.9"
• Cross slide travel .......... 375 mm/14.8"
Tailstock:
• Tail spindle travel .......... 165 mm/6.5"
• Tail spindle diameter .......... 85 mm/3.3"
Power:
• Main drive motor .......... 15HP (11 KW, 6P)
• Coolant pump .......... 1/8 HP (0.1 KW)
Dimensions:
• Machine Dimensions .......... 238 x 103 x 136 cm/94" x 41" x 54"
• Packing Dimensions .......... 250 x 115 x 194 cm/98" x 45" x 76"
• Net Weight .......... 2360 kgs/5203 lbs
• Gross Weight .......... 2460 kgs/5423 lbs
NOTE! The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performances of the machines without notice. All specifications shown above are for reference only.
