Introducing the new ACER Dynamic-3060L Precision Engine Lathe. Featuring a 29.9" swing, 59.1" centers, and 4.5" spindle bore, it delivers powerful 15 hp performance at up to 1,000 RPM. Ideal for precision machining with a 21.3" swing over cross slide.

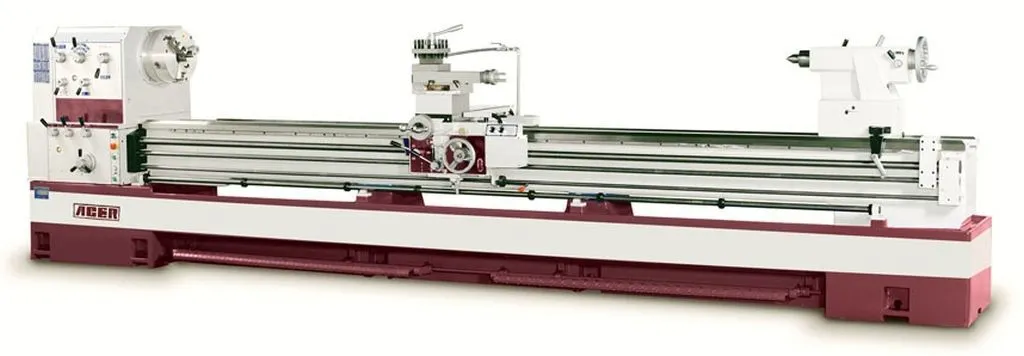

ACER Dynamic Lathe 3060L
General Capacity:
• Swing over bed .......... 760 mm/29.9"
• Swing over gap .......... 990 mm/39"
• Swing over cross slide .......... 540 mm/21.3"
• Distance between centers .......... 1000 mm/59.1"
• Width of bed .......... 400 mm/15.7"
Headstock:
• Spindle nose .......... D1-11
• Spindle bore .......... 115 mm/4.5"
• Spindle speeds .......... 10 - 1000 R.P.M. (12 steps)
• Taper of spindle bore .......... MT 7
Threading:
• Inch threads range .......... 2 - 56 T.P.I.
• Metric threads range .......... P 0.5 - P 14
• Longitudinal feeds range .......... 0.06 - 0.82 mm/0.002" - 0.032"
• Cross feeds range .......... 0.02 - 0.40 mm/0.0008" - 0.016"
• Leadscrew diameter .......... 38 mm/1.5"
• Leadscrew pitch .......... 4 T.P.I. or 6 mm/0.24"
Carriage:
• Taper of tail center .......... MT 5
• Compound rest travel .......... 200 mm/7.9"
• Cross slide travel .......... 375 mm/14.8"
Tailstock:
• Tail spindle travel .......... 165 mm/6.5"
• Tail spindle diameter .......... 85 mm/3.3"
Power:
• Main drive motor .......... 15HP (11 KW, 6P)
• Coolant pump .......... 1/8 HP (0.1 KW)
Dimensions:
• Machine Dimensions .......... 114" x 41" x 54"
• Packing Dimensions .......... 118" x 45" x 76"
• Net Weight .......... 2710 kgs/5975 lbs
• Gross Weight .......... 2810 kgs/6195 lbs
NOTE! The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performances of the machines without notice. All specifications shown above are for reference only.
