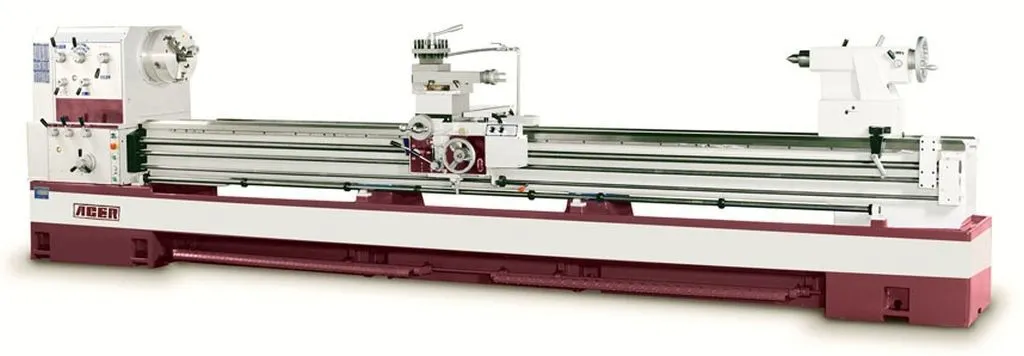

New ACER Dynamic-30160L Precision Engine Lathe
Have one to sell?
ConditionNew
New
New ACER Dynamic-30160L Precision Engine Lathe: Swing 29.9", Centers 157.5", Spindle Bore 4.5". Power 15hp, RPM up to 1,000. High-performance lathe with a robust design for precision machining. Ideal for various threading and feeding needs.
ACER Dynamic Lathe 30160L
General Capacity:
• Swing over bed .......... 760 mm/29.9"
• Swing over gap .......... 990 mm/39"
• Swing over cross slide .......... 540 mm/21.3"
• Distance between centers .......... 2500 mm/157.5"
• Width of bed .......... 400 mm/15.7"
Headstock:
• Spindle nose .......... D1-11
• Spindle bore .......... 115 mm/4.5"
• Spindle speeds .......... 10 - 1000 R.P.M. (12 steps)
• Taper of spindle bore .......... MT 7
Threading:
• Inch threads range .......... 2 - 56 T.P.I.
• Metric threads range .......... P 0.5 - P 14
• Longitudinal feeds range .......... 0.06 - 0.82 mm/0.002" - 0.032"
• Cross feeds range .......... 0.02 - 0.40 mm/0.0008" - 0.016"
• Leadscrew diameter .......... 38 mm/1.5"
• Leadscrew pitch .......... 4 T.P.I. or 6 mm/0.24"
Carriage:
• Taper of tail center .......... MT 5
• Compound rest travel .......... 200 mm/7.9"
• Cross slide travel .......... 375 mm/14.8"
Tailstock:
• Tail spindle travel .......... 165 mm/6.5"
• Tail spindle diameter .......... 85 mm/3.3"
Power:
• Main drive motor .......... 15HP (11 KW, 6P)
• Coolant pump .......... 1/8 HP (0.1 KW)
Dimensions:
• Machine Dimensions .......... 219” x 41” x 54”
• Packing Dimensions .......... 226” x 45” x 76”
• Net Weight .......... 4990 kgs/11,001 lbs
• Gross Weight .......... 5190 kgs/11,442 lbs
NOTE! The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performances of the machines without notice. All specifications shown above are for reference only.
