New ACER Dynamic-3240L Precision Engine Lathe
Have one to sell?
ConditionNew
New
Introducing the new ACER Dynamic-3240L Precision Engine Lathe. With a 32" swing, 39.4" center, and 15 hp power, it's ideal for precise metalwork. Features include a 4.5" spindle bore, 1,000 RPM speed, and robust threading capabilities.

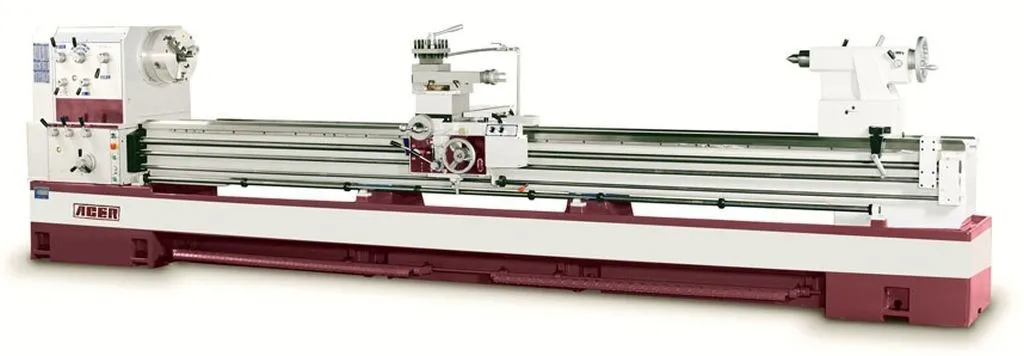

ACER Dynamic Lathe 3240L
General Capacity:
• Swing over bed .......... 810 mm/32"
• Swing over gap .......... 1040 mm/41"
• Swing over cross slide .......... 590 mm/23.3"
• Distance between centers .......... 1000 mm/39.4"
• Width of bed .......... 400 mm/15.7"
Headstock:
• Spindle nose .......... D1-11
• Spindle bore .......... 115 mm/4.5"
• Spindle speeds .......... 10 - 1000 R.P.M. (12 steps)
• Taper of spindle bore .......... MT 7
Threading:
• Inch threads range .......... 2 - 56 T.P.I.
• Metric threads range .......... P 0.5 - P 14
• Longitudinal feeds range .......... 0.06 - 0.82 mm/0.002 - 0.032"
• Cross feeds range .......... 0.02 - 0.40 mm/0.0008 - 0.016"
• Leadscrew diameter .......... 38 mm/1.5"
• Leadscrew pitch .......... 4 T.P.I. or 6 mm/0.24"
Saddle:
• Taper of tail center .......... MT 5
• Max. march of compound rest .......... 200 mm/7.9"
• Max. march of cross slide .......... 375 mm/14.8"
Tailstock:
• Tail spindle travel .......... 165 mm/6.5"
• Tail spindle diameter .......... 85 mm/3.3"
Power:
• Main drive motor .......... 15HP (11 KW, 6P)
• Coolant pump .......... 1/8 HP (0.1 KW)
Dimensions:
• Machine Dimensions .......... 238 x 103 x 136 cm/94" x 41" x 54"
• Packing Dimensions .......... 250 x 115 x 194 cm/98" x 45" x 76"
• Net Weight .......... 2495 kgs/5500 lbs
• Gross Weight .......... 2597 kgs/5725 lbs
NOTE! The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performances of the machines without notice. All specifications shown above are for reference only.
