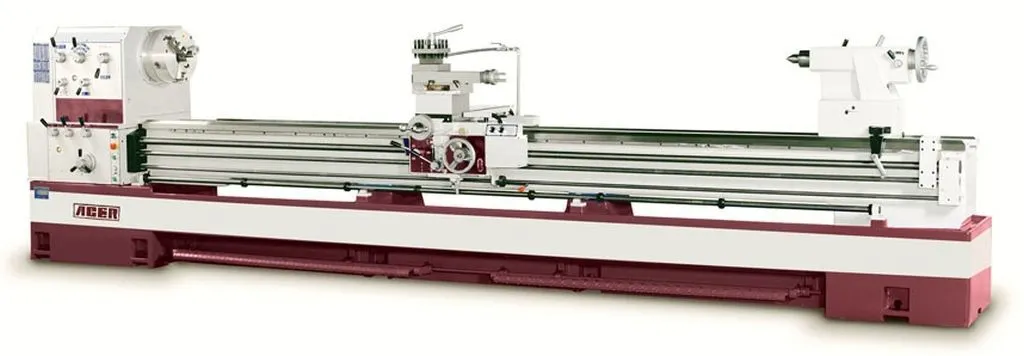

New ACER Dynamic-3280L Precision Engine Lathe
Have one to sell?
ConditionNew
New
Explore precision engineering with the ACER Dynamic 3280L engine lathe. Featuring a 32" swing, 78.7" centers, and 4.5" spindle bore, it's powered by a 15 hp motor and reaches 1,000 RPM. Ideal for demanding projects requiring reliability and efficiency.
ACER Dynamic Lathe 3280L
General Capacity:
• Swing over bed .......... 810 mm/32"
• Swing over gap .......... 1040 mm/41"
• Swing over cross slide .......... 590 mm/23.3"
• Distance between centers .......... 2000 mm/78.4"
• Width of bed .......... 400 mm/15.7"
Headstock:
• Spindle nose .......... D1-11
• Spindle bore .......... 115 mm/4.5"
• Spindle speeds .......... 10 - 1000 R.P.M. (12 steps)
• Taper of spindle bore .......... MT 7
Threading:
• Inch threads range .......... 2 - 56 T.P.I.
• Metric threads range .......... P 0.5 - P 14
• Longitudinal feeds range .......... 0.06 - 0.82 mm/0.002" - 0.032"
• Cross feeds range .......... 0.02 - 0.40 mm/0.0008" - 0.016"
• Leadscrew diameter .......... 38 mm/1.5"
• Leadscrew pitch .......... 4 T.P.I. or 6 mm/0.24"
Saddle:
• Taper of tail center .......... MT 5
• Max. march of compound rest .......... 200 mm/7.9"
• Max. march of cross slide .......... 375 mm/14.8"
Tailstock:
• Tail spindle travel .......... 165 mm/6.5"
• Tail spindle diameter .......... 85 mm/3.3"
Power:
• Main drive motor .......... 15HP (11 KW, 6P)
• Coolant pump .......... 1/8 HP (0.1 KW)
Dimensions:
• Machine Dimensions .......... 347 x 103 x 136 cm/137" x 41" x 54"
• Packing Dimensions .......... 356 x 115 x 194 cm/140" x 45" x 76"
• Net Weight .......... 3196 kgs/7045 lbs
• Gross Weight .......... 3345 kgs/7375 lbs
NOTE! The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performances of the machines without notice. All specifications shown above are for reference only.
