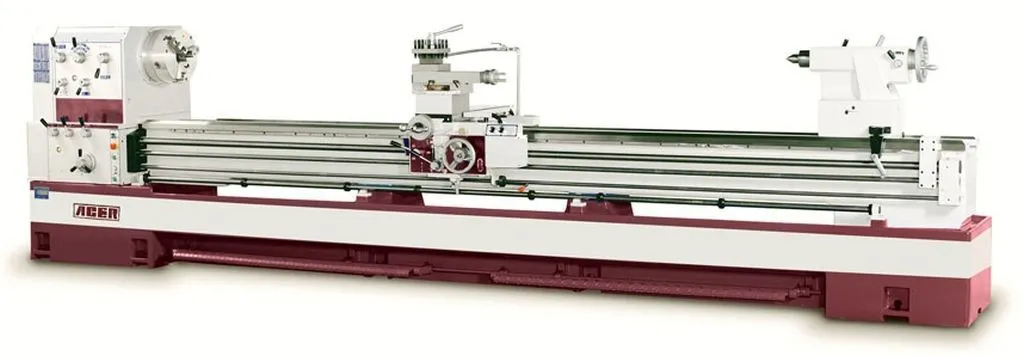

New ACER Dynamic-32120L Precision Engine Lathe
Have one to sell?
ConditionNew
New
Enjoy this new ACER Dynamic 32120L engine lathe with a 32" swing, 118.1" centers, and 4.5" spindle bore. Powered by a robust 15 hp engine with a speed of 1,000 RPM. Swing over cross slide measures 23.3". A reliable addition to your machining needs.
ACER Dynamic Lathe 32120L
General Capacity:
• Swing over bed .......... 810 mm/32"
• Swing over gap .......... 1040 mm/41"
• Swing over cross slide .......... 590 mm/23.3"
• Distance between centers .......... 3000 mm/118.1"
• Width of bed .......... 400 mm/15.7"
Headstock:
• Spindle nose .......... D1-11
• Spindle bore .......... 115 mm/4.5"
• Spindle speeds .......... 10 - 1000 R.P.M. (12 steps)
• Taper of spindle bore .......... MT 7
Threading:
• Inch threads range .......... 2 - 56 T.P.I.
• Metric threads range .......... P 0.5 - P 14
• Longitudinal feeds range .......... 0.06 - 0.82 mm/0.002" - 0.032"
• Cross feeds range .......... 0.02 - 0.40 mm/0.0008" - 0.016"
• Leadscrew diameter .......... 38 mm/1.5"
• Leadscrew pitch .......... 4 T.P.I. or 6 mm/0.24"
Saddle:
• Taper of tail center .......... MT 5
• Max. march of compound rest .......... 200 mm/7.9"
• Max. march of cross slide .......... 375 mm/14.8"
Tailstock:
• Tail spindle travel .......... 165 mm/6.5"
• Tail spindle diameter .......... 85 mm/3.3"
Power:
• Main drive motor .......... 15HP (11 KW, 6P)
• Coolant pump .......... 1/8 HP (0.1 KW)
Dimensions:
• Machine Dimensions .......... 473 x 103 x 136 cm/186" x 41" x 54"
• Packing Dimensions .......... 485 x 115 x 194 cm/191" x 45" x 76"
• Net Weight .......... 3915 kgs/8630 lbs
• Gross Weight .......... 4071 kgs/8975 lbs
NOTE! The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performances of the machines without notice. All specifications shown above are for reference only.
