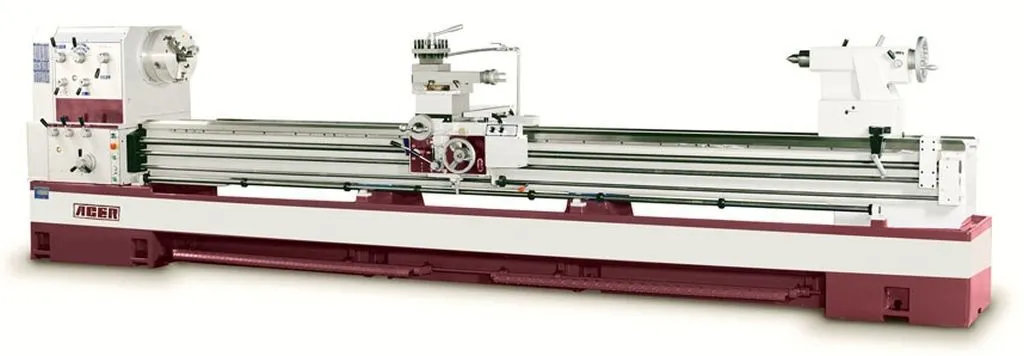

New ACER Dynamic-32160L Precision Engine Lathe
Have one to sell?
ConditionNew
New
New ACER Dynamic 32160L Engine Lathe features a 32" swing, 157.5" centers, and 4.5" spindle bore. With 15 hp, this machine reaches up to 1,000 RPM. Ideal for precise machining, enjoy a 23.3" swing over cross slide. Efficient and robust for demanding tasks.
ACER Dynamic Lathe 32160L
General Capacity:
• Swing over bed .......... 810 mm/32"
• Swing over gap .......... 1040 mm/41"
• Swing over cross slide .......... 590 mm/23.3"
• Distance between centers .......... 4000 mm/157.5"
• Width of bed .......... 400 mm/15.7"
Headstock:
• Spindle nose .......... D1-11
• Spindle bore .......... 115 mm/4.5"
• Spindle speeds .......... 10 - 1000 R.P.M. (12 steps)
• Taper of spindle bore .......... MT 7
Threading:
• Inch threads range .......... 2 - 56 T.P.I.
• Metric threads range .......... P 0.5 - P 14
• Longitudinal feeds range .......... 0.06 - 0.82 mm / 0.002" - 0.032"
• Cross feeds range .......... 0.02 - 0.40 mm/0.0008" - 0.016"
• Leadscrew diameter .......... 38 mm/1.5"
• Leadscrew pitch .......... 4 T.P.I. or 6 mm/0.24"
Saddle:
• Taper of tail center .......... MT 5
• Max. march of compound rest .......... 200 mm/7.9"
• Max. march of cross slide .......... 375 mm/14.8"
Tailstock:
• Tail spindle travel .......... 165 mm/6.5"
• Tail spindle diameter .......... 85 mm/3.3"
Power:
• Main drive motor .......... 15HP (11 KW, 6P)
• Coolant pump .......... 1/8 HP (0.1 KW)
Dimensions:
• Machine Dimensions .......... 555 x 103 x 136 cm /219" x 41" x 54"
• Packing Dimensions .......... 573 x 115 x 194 cm /226" x 45" x 76"
• Net Weight .......... 5126 kgs /11300 lbs
• Gross Weight .......... 5327 kgs/11745 lbs
NOTE! The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performances of the machines without notice. All specifications shown above are for reference only.
