New ACER Dynamic-24120G Precision Engine Lathe

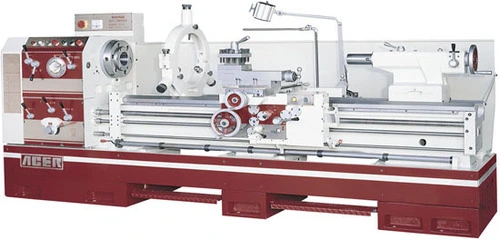

ACER Dynamic Lathe 24120L
General Capacity:
• Center height .......... 11-7/8"
• Swing over bed .......... 23-5/8"
• Swing over gap (Gap type only) .......... 32-1/4"
• Swing over cross slide .......... 15"
• Distance between centers .......... 120"
• Spindle nose .......... ASA 1-11 or D1-11
Main Spindle:
• Spindle bore diameter .......... 4-1/8"
• Type of spindle nose .......... 108 x 1:12
• Taper of center .......... MT.# 5
• Spindle speeds .......... 25 to 1200 rpm (12 steps)
Carriage:
• Cross slide travel .......... 13"
• Compound rest travel .......... 9"
• Max. size cutting tool .......... 1" x 1"
Tailstock:
• Spindle diameter .......... 3-1/32"
• Spindle travel .......... 7"
• Taper of center .......... MT.# 5
Bed:
• Bed length .......... 164"
• Bed width .......... 16-1/2"
• Width of gap .......... 20-1/4"
Threading & Feeding:
• System .......... Inch/Metric
• Pitch of leadscrew .......... 1-1/2" Ø, 4 TPI
• Metric pitch threads .......... 0.5 to 14mm/pitch (31 kinds)
• Inch pitch threads .......... 2 to 56 TPI (45 kinds)
• Module pitch threads .......... 0.25 to 7 M.P. (23 kinds)
• Diametral pitch threads .......... 4 to 112 D.P. (43 kinds)
• Range of longitudinal feeds .......... 0.0012 to 0.0287"/rev. .......... 0.03-0.73mm/rev.
• Range of cross feeds .......... 0.0004 to 0.0118"/rev. .......... 0.01-0.03mm/rev.
Power:
• Main drive motor .......... 15 HP
• Rapid traverse motor .......... 1/2 HP (optional)
• Coolant pump motor .......... 1/8 HP
Dimensions:
• Floor Dimension .......... 169" x 50"
• Net Weight .......... 8690 lbs
• Gross Weight .......... 10010 lbs
• Packing Dimension .......... 181.3" x 50" x 74"
***NOTE! The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performances of the machines without notice. All specifications shown above are for reference only.

Machine Features:
• Ampere meter for indicating power consumption.
• Magnetic multiple-disc clutches in the headstock are used for efficient starting and reversing the spindle.
• Manual jog button.
• 12 speeds range from 25 to 1,200 RPM.
• Oil flood indicator.
• One of the outside gears on the gear box is designed with a safety ring to protect it from damage.
• Optional 2nd starting lever.
• Drip-proof 15 HP spindle motor.
• Magnetic disc brake with foot pedal allows for rapid control of the spindle rotation.
• Hardened & ground bedways at Rockwell C 55°.
• Electro-trochoid pump forces lubrication oil to all running parts outside of the headstock.
• Handwheel with direct inch/metric reading micro-collar.
• Precision ground cross slideways.
• Saddle-lock device for heavy cutting.
• Rapid four directional travel.
• Safety clutched and longitudinal lead screw.
• 4 TPI and oil bathed longitudinal lead screw.
• Oil level indicator.
• Forward/stop/reverse lever with safety device.
• Multi-position length stops.
• Removable chip pan.
• Machine bed with FC-30 casting iron.
• Machine weighs 8,690 lbs.

Standard Accessories:
• Gap bed
• Built in coolant
• One three-jaw adaptor plate
• Tool box w/tools
• One four-jaw adaptor plate
• Operational manual
• Splash guard
• Four way tool post
• Steady rest
• Halogen light
• One face plate
• Touch-up paint

Optional Accessories:
• Telescopic Taper Turning Attachment
• 5C Collet Closer
• Rear Tool Post
• Micrometer Stop/Four Position Carriage Stop
• Bearing Type Steady Rest/Follow Rest
• Face Plate/3 Jaw Adaptor Plate/Drive Plate
• Quick Change Tool Post
• Three Jaw Universal Chuck /Chuck Cover (Metal only)
• Four Jaw Independent Chuck
