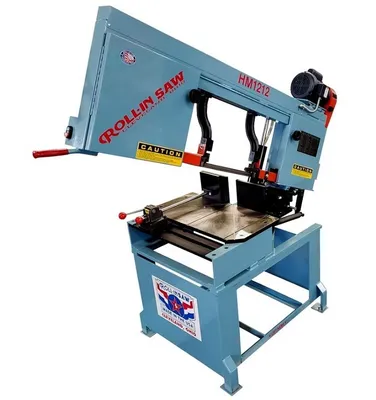

Roll-In Saw HM1212 Horizontal Miter Saw
Have one to sell?
ConditionNew
New
Our introductory horizontal saw is anything but basic. This reliable saw features a a hydraulic feed system for a controlled feed rate and a frame that quickly swivels 60° in either direction for precise cutting for up to 12" material.
With a quick clamp that can be moved to either side of the 13" x 26.5" table, material can be fed from either direction, allowing more versatility.
SPECIFICATIONS:
Feed System.......... Hydraulic cylinder for controlled feeds
Blade Travel.......... 12"
Cutting Capacity at 90°.......... Round: 12" Square: 10" Rectangle: 12" x 10"
Cutting Capacity at 45°.......... Round: 8" Square: 8" Rectangle: 10" x 8"
Cutting Capacity at 60°.......... Round: 6" Square: 6" Rectangle 8" x 6"
Miter Cut Angle Range.......... 0° - 60° (Saw Head Swivels 60° In Both Directions)
Bevel Cut Angle Range.......... N/A
Capacity Under Guides.......... 12”
Blade Size (Ships With Saw).......... 1" Width x 11' 8" Length .035 Thick (bi-metal)
Blade Size (Accepted Widths).......... 1"
Blade Speeds.......... 70/140/270 sfpm
Table.......... Precision Ground Steel Table: 13” x 26.5”
Table Height.......... 30" From Floor (No Casters)
Motor.......... 1 HP 110/220V single-phase
Saw Dimensions.......... 26" Width x 60" Height x 73" Length
Shipping Dimensions.......... 41" Width x 65" Height x 82" Length
Shipping Weight.......... 1,000 lbs., F.O.B. Cleveland, Ohio
Product Features
• Fast accurate cut on materials up to 12" thick
• Saw easily swivels up to 60° in either direction, allowing for precise angled cuts
• The weighted/hydraulic feed coupled with the automatic stop switch allows for large production and unsupervised cuts
