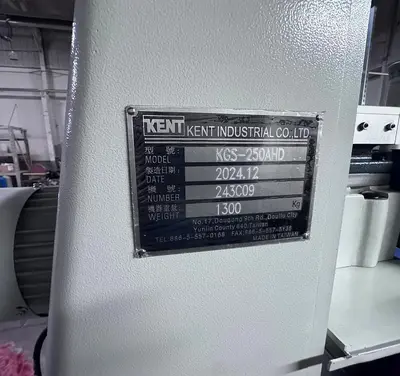

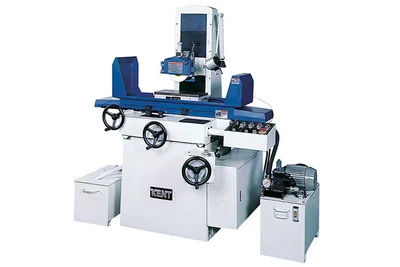

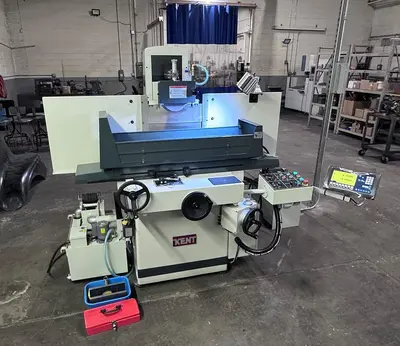

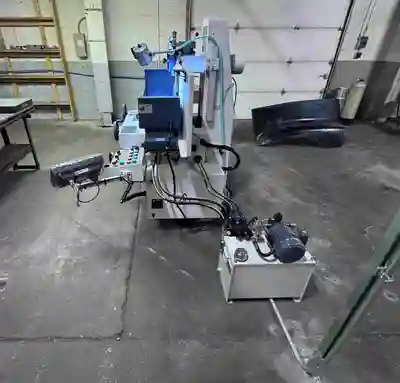

USED 2024 KENT MACHINERY MODEL KGS-250 AHD SURFACE GRINDER

FEATURES:

• D-2 HARDENED & GROUND BALL BEARING TABLE WAYS

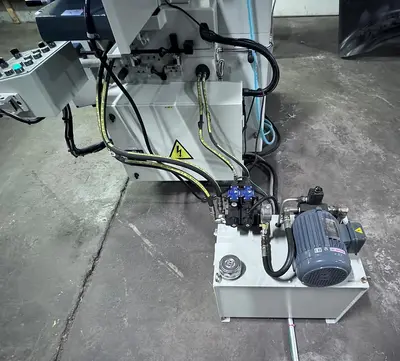

• HYDRAULIC TABLE
• DOUBLE-V TURCITE CROSS WAYS
• CLASS-7 PAIRED & PRE-LOADED BEARING SPINDLE
• CAST IRON BASE

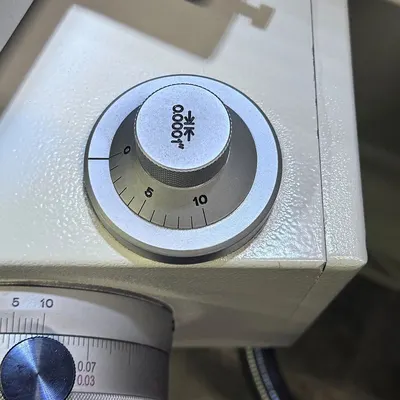

• VERNIER DOWN-FEED GRADUATION DIAL

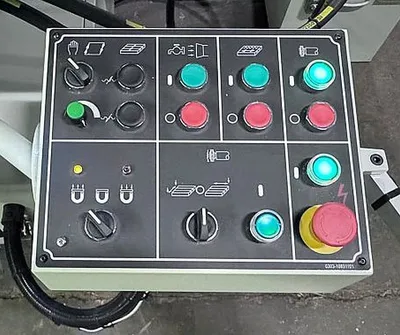

• SOLID STATE CONTROLLED-FEED
• AUTO INCREMENTAL DOWN-FEED

SPECIFICATIONS:

CAPACITY:
OVERALL WORKING AREA................................. 18" X 8"
LONGITUDINAL TABLE TRAVEL............................ 21 1/4"
CROSS FEED TRAVEL SADDLE............................. 10 1/2"
DISTANCE SPINDLE CENTER TO TABLE..................... 18 11/16
TABLE LOAD INCLUDING MAGNETIC CHUCK.................. 220 LBS
TABLE & CROSS FEED:
T-SLOT............................................... 1/2" X 1"
LONGITUDINAL TABLE SPEED............................. 15 - 85 FPM

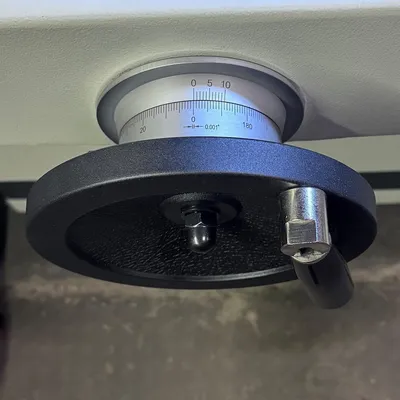

CROSSFEED ON HANDWHEEL............................... 0.001" GRADUATION
REVOLUTION OF HANDWHEEL.............................. 0.2 IPR
AUTO CROSS FEED PER STROKE........................... 0.004" - 0.475"
POWER CROSS FEED..................................... 38 1/2 IPM
GRINDING WHEEL:

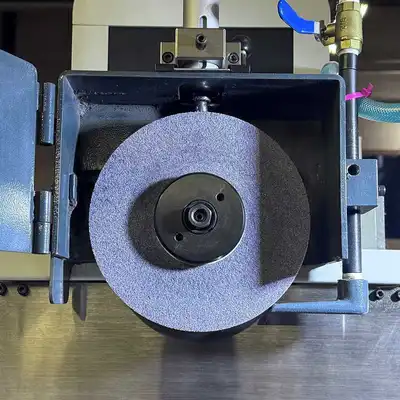

GRINDING WHEEL (OD X T X ID) ........................ 8" X 1/2" X 1 1/4"
SPINDLE SPEED ....................................... 3480 RPM
VERTICAL MOVEMENT:

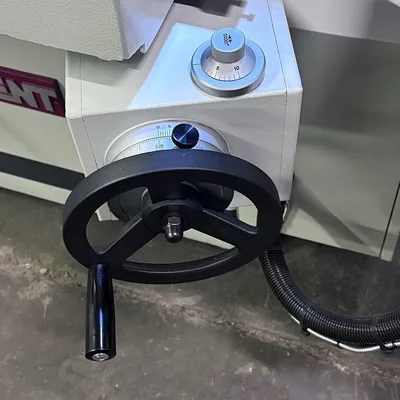

VERTICAL HAND WHEEL.................................. 0.0005" GRADUATION
VERTICAL HAND WHEEL REVOLUTION....................... 0.1 IPR
AUTO DOWN FEED INCREMENT (10 STEPS).................. 0.0001" - 0.001"
MOTOR:
SPINDLE MOTOR ....................................... 2 HP/3 HP (OPTIONAL)
HYDRAULIC MOTOR...................................... 1 HP
DUST COLLECTOR MOTOR................................. 1/2 HP
COOLANT MOTOR........................................ 1/8 HP
CROSS FEED MOTOR..................................... 40 WATT
MACHINE WEIGHT & DIMENSIONS:
MACHINE HEIGHT....................................... 70"
FLOOR SPACE.......................................... 81" X 57"
NET WEIGHT........................................... 2860 LBS
PACKING DIMENSIONS (L x W x H)....................... 69" X 66" X 83"
GROSS WEIGHT......................................... 3300 LBS

STANDARD ACCESSORIES: (INCLUDED)

SPECIAL PACKAGE INCLUDES:

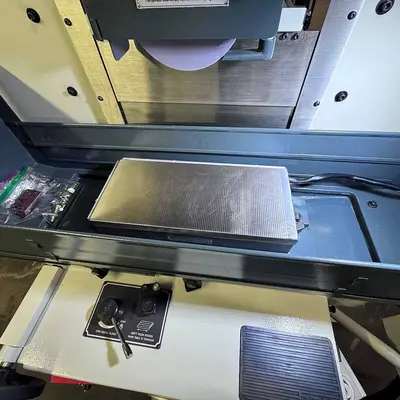

* 8 X 18 ELECTRIC MAGNETIC CHUCK WITH "KENT" CONTROL

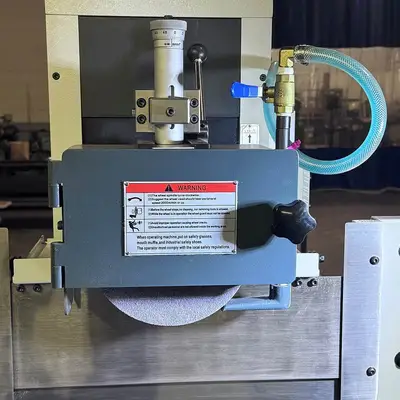

* OVER-HEAD PARALLEL DRESSER

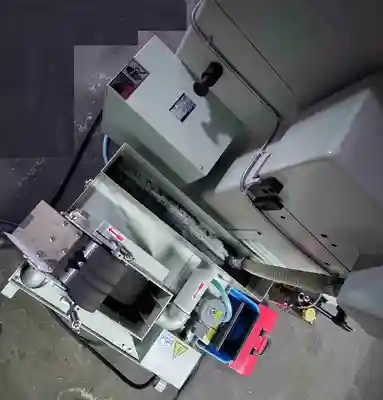

* MAGNETIC SPEARATOR & COOLANT SYSTEM
* FULL LENGTH REAR SPLASH GUARD
* FRONT TABLE SPLASH GUARD

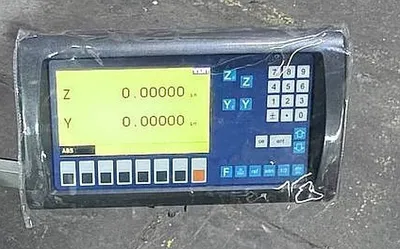

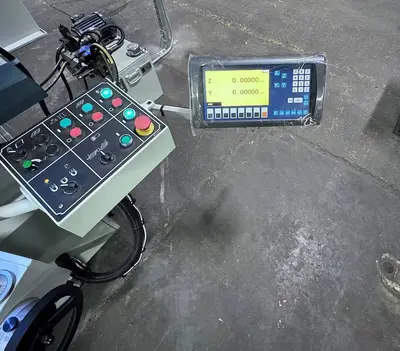

* KENT 2-AXIS DIGITAL READOUT SYSTEM

WHEEL BEARING BASE X 1PC WHEEL BALANCING ARBOR X 1PC
GRINDING WHEEL X 1PC WHEEL FLANGE X 1PC

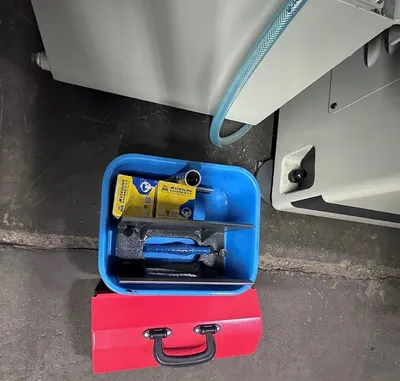

TABLE DRESSER X 1PC TOOLS & TOOL BOX X 1SET

TERMS:

1. DETAILED SPECIFICATION -- SEE CATALOGUE
2. WARRANTY OF MECHANICAL PARTS ARE ONE YEAR BASED ON ONE SHIFT NORMAL
WORKING CONDITION EXCLUDING MISUSE BY ULTIMATE CUSTOMERS. WARRANTY
OF ELECTRICAL PARTS ARE NINETY DAYS.
3. OUR RESPONSIBILITY CEASES WHEN DELIVERY IS MADE TO THE CARRIER, AND
CLAIMS FOR LOSS OR DAMAGED MUST BE HANDLED BY PURCHASER AGAINST CARRIER.
4. PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
5. PRICES ARE BASED ON F.O.B. WAREHOUSE IN SOUTH ELGIN, IL
