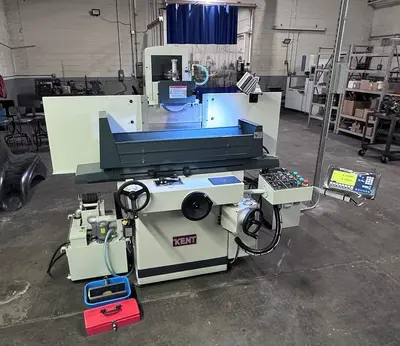

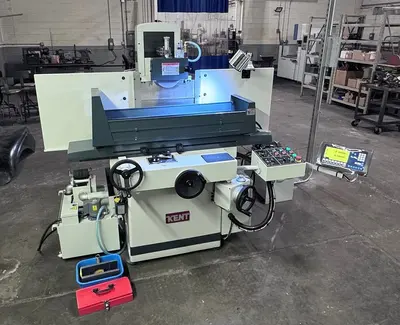

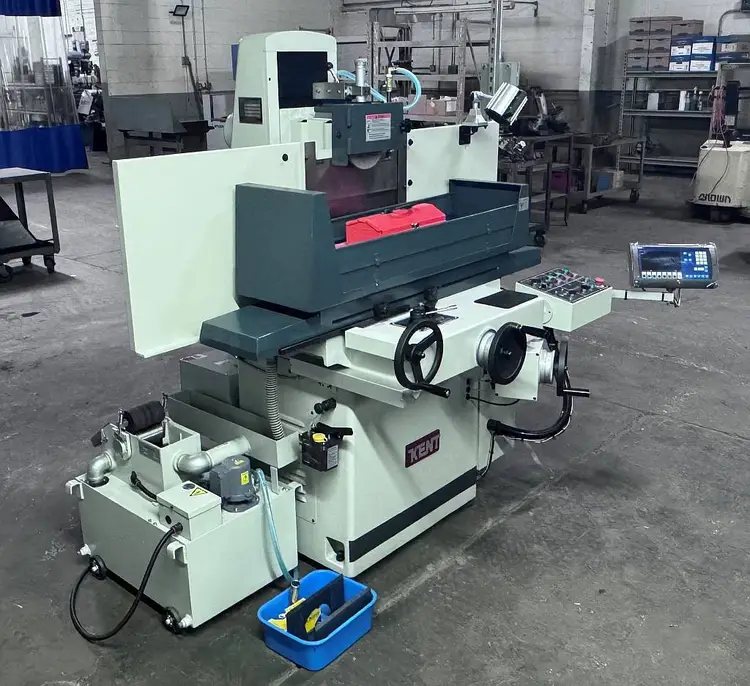

KENT KGS 250AHD 3 Axis Fully Auto-Matic Hydraulic Surface Grinder

Kent 3-Axes Precision Surface Grinder

Packaged with:

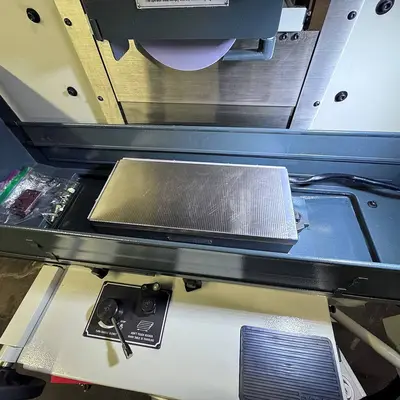

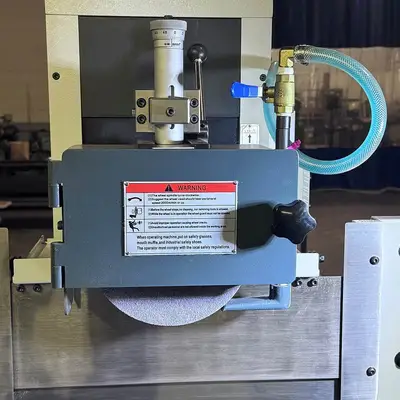

• 8x18 Electric Magnetic Chuck with "Kent" Control; Over-Head Parallel Dresser
• Full Length Rear Splash Guard
• Front Table Splash Guard

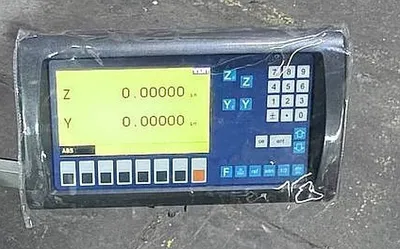

• “KENT” 2 Axis Digital Readout System
• Halogen Work Light

STANDARD EQUIPMENT
Wheel Balancing Base x 1 pc Wheel Balancing Arbor x 1 pc
Grinding Wheel x 1 pc Wheel Flange x 1 pc
Table Dresser x 1 pc Tools & Tool Box x 1 set

MAIN SPECIFICATIONS
Max. Travel (Longitudinal x Cross): …………………………… 20"x10"
Max. Distance Spindle Center To Table:……………………….. 19"

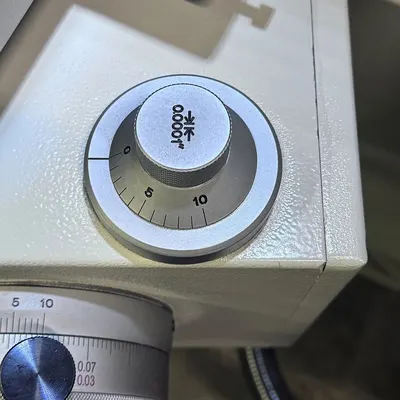

Automatic Downfeed Increment:………………………………..0.0001”-0.001”

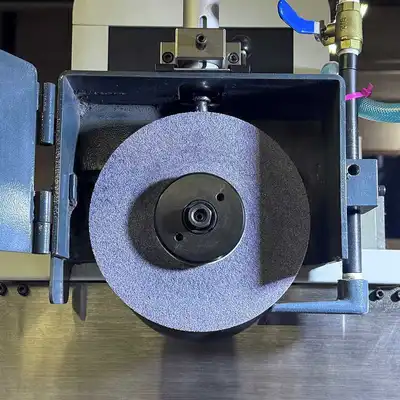

Grinding Wheel (ODxTxID):…………………………………….7"x1/2"x1-1/4"
Grinding Wheel speed:………………………………………….. 3480 rpm
Spindle Motor:…………………………………………………2HP/3HP (optional)

-460V/3/60

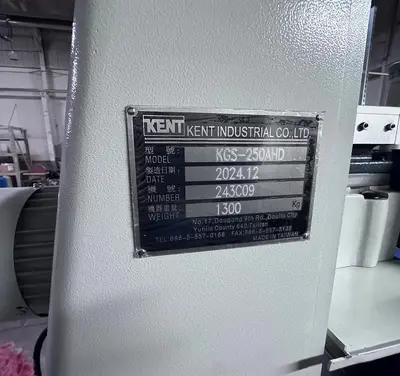

-S/N: 243C09
-Wheel Flange MCL-250 .960mm included P/N:#0302-91311301

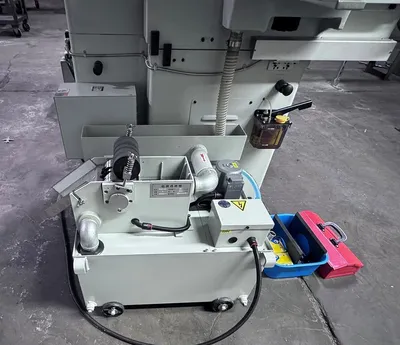

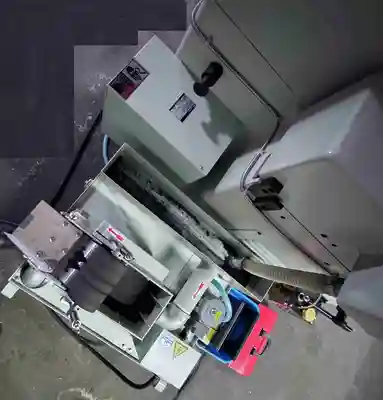

-M2 Coolant System with Magnetic Separator, 70L, 1/8HP
