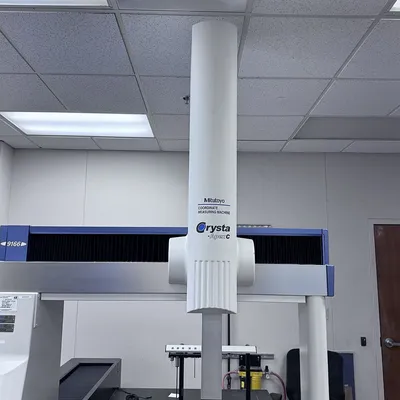

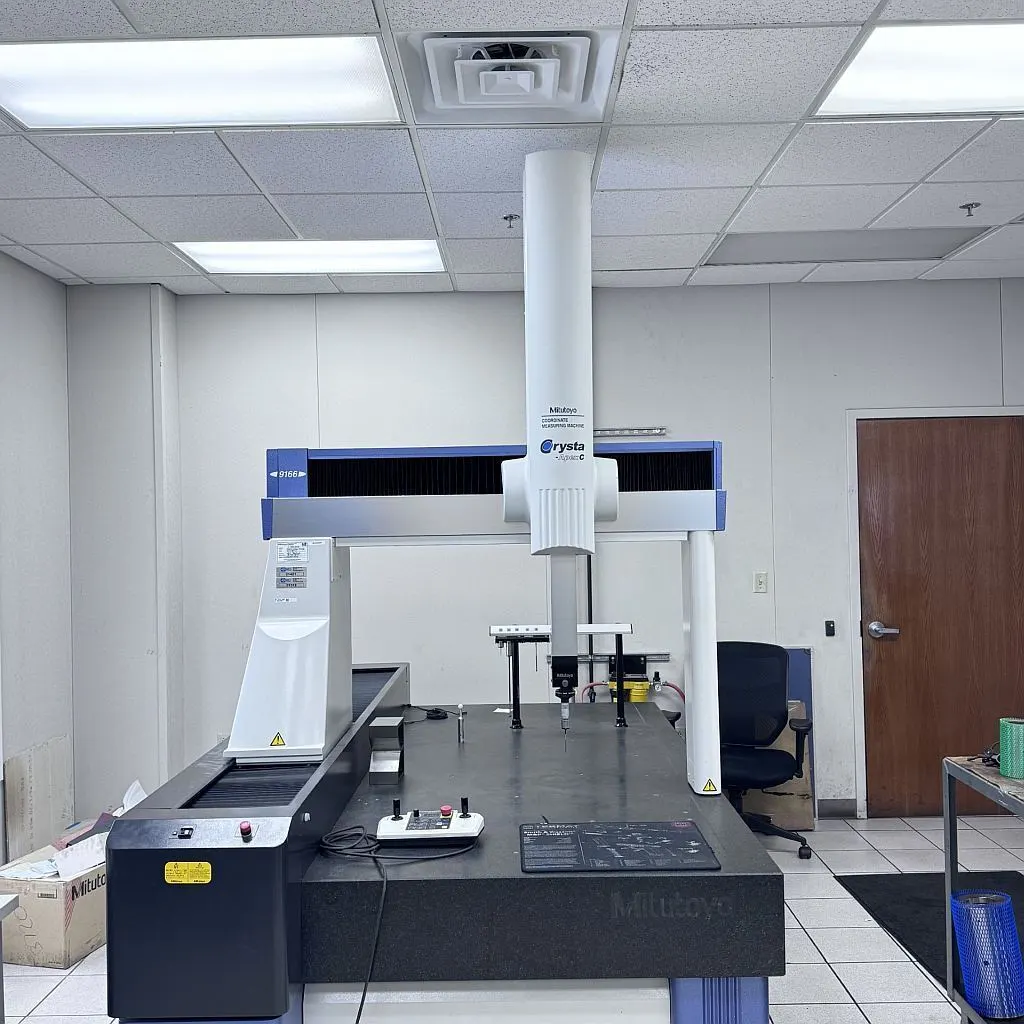

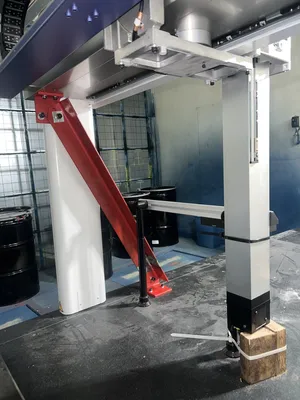

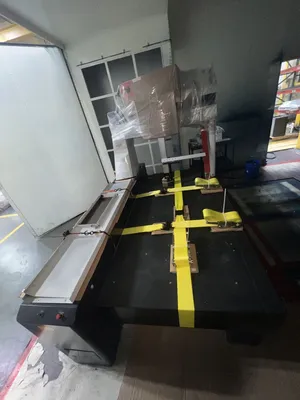

MITUTOYO CRYSTA-APEX C9166 CMM

Coordinate Measuring Machine:
X-Axis Measuring Range: 35″ (900 mm)
Y-Axis Measuring Range: 63″ (1600 mm)
Z-Axis Measuring Range: 24″ (600 mm)

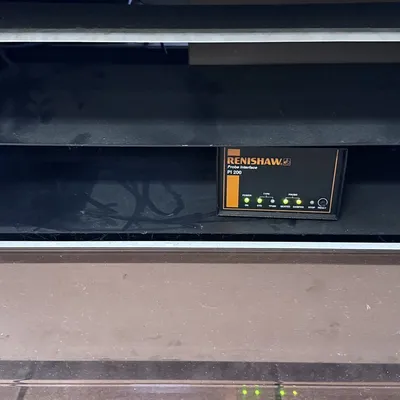

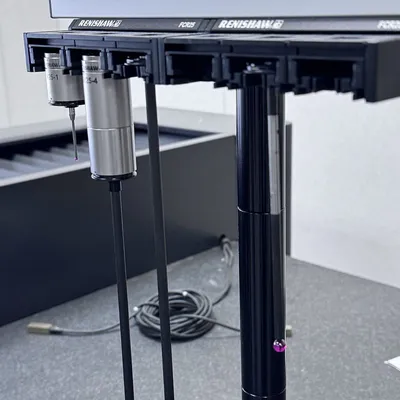

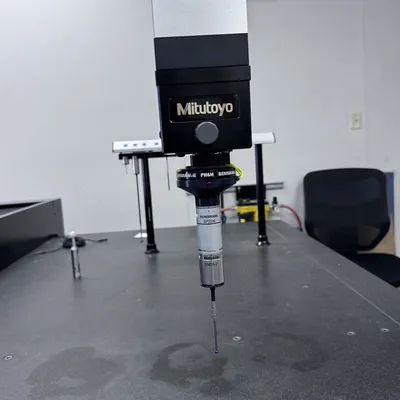

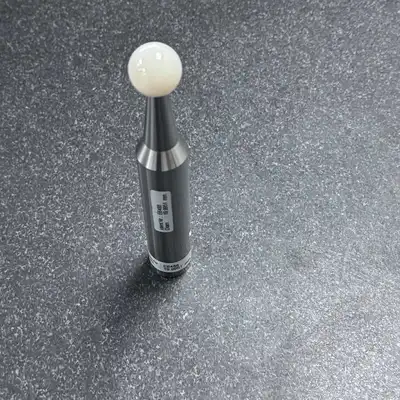

Mitutoyo/Renishaw Components
Controller: Mitutoyo
Last Calibration: Feb 2025

Resolution: 0.0001 mm (0.1 μm)
Guide method: Air bearings on each axis
Drive speed – CNC MODE: Drive speed 8 – 300mm/s; max. speed: 519 mm/s

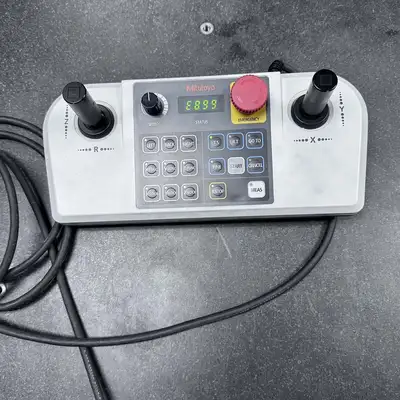

J/S MODE: 0 – 80mm/s (J/S Mode: High Speed); 0 – 3mm/s (J/S Mode: Low Speed); 0.05 mm/s (J/S Mode: Fine Speed)

Max. measuring speed: 8 mm/s
Max. drive acceleration: Each axis: 1,333 mm/s2, max. combined acceleration: 2,309 mm/s2

Workpiece
– Maximum height: 800 mm
– Maximum mass: 1500 kg
Mass (including the control device and installation platform): 2868 kg

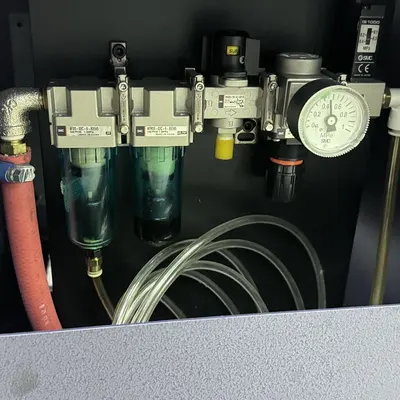

Air supply
– Pressure: 0.4 MPa
– Consumption: 60 L/min under normal conditions (air source: 120 L/min)

Additional Details:
-High-Accuracy CNC Coordinate Measuring Machine that guarantees a maximum permissible error of *E0,MPE = (1.7+3L /1000)μm
-The machine has a measuring capability of 35” x-axis, 63” y-axis, 24” z-axis at .000004” resolution
-This was used to measure parts and provide AS9100 inspection reports automatically
-The large dedicated table area enabled high volume production
-Brings versatile and diverse part inspection capability as it can measure five of six component sides without moving the part
-Specifically it can also aids in reverse engineering capability with insulation components
-Excellent for measuring stator housing and core concentricity if wanted
-Dramatically reduces AEM’s measuring times to increase efficiency

*Calibration Valid until 2/28/2026*
Weight: 5070 lbs

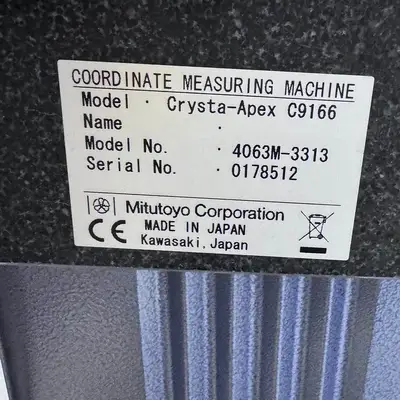

Model : Crysta-Apex C9166
Model No. : 4063M-3313
Serial No. : 0178512
