Used SUNNEN SV-10-D CNC VERTICAL HONE | HONES, VERTICAL

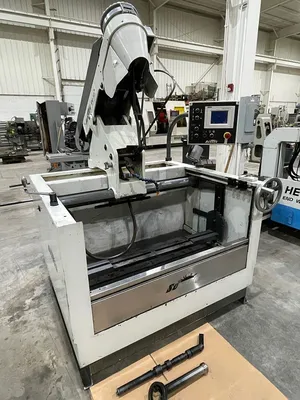

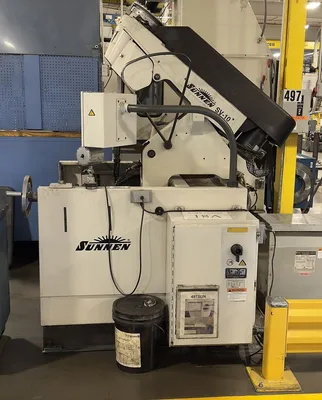

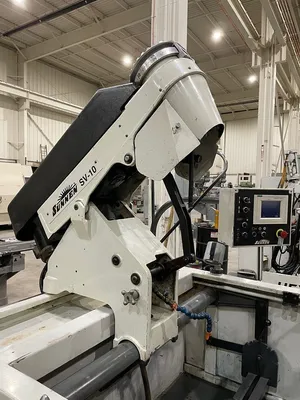

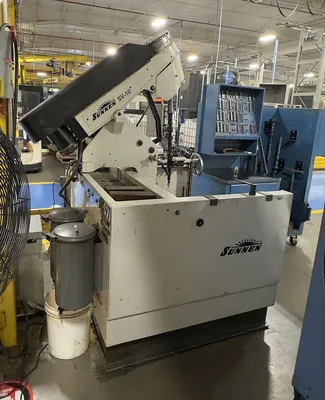

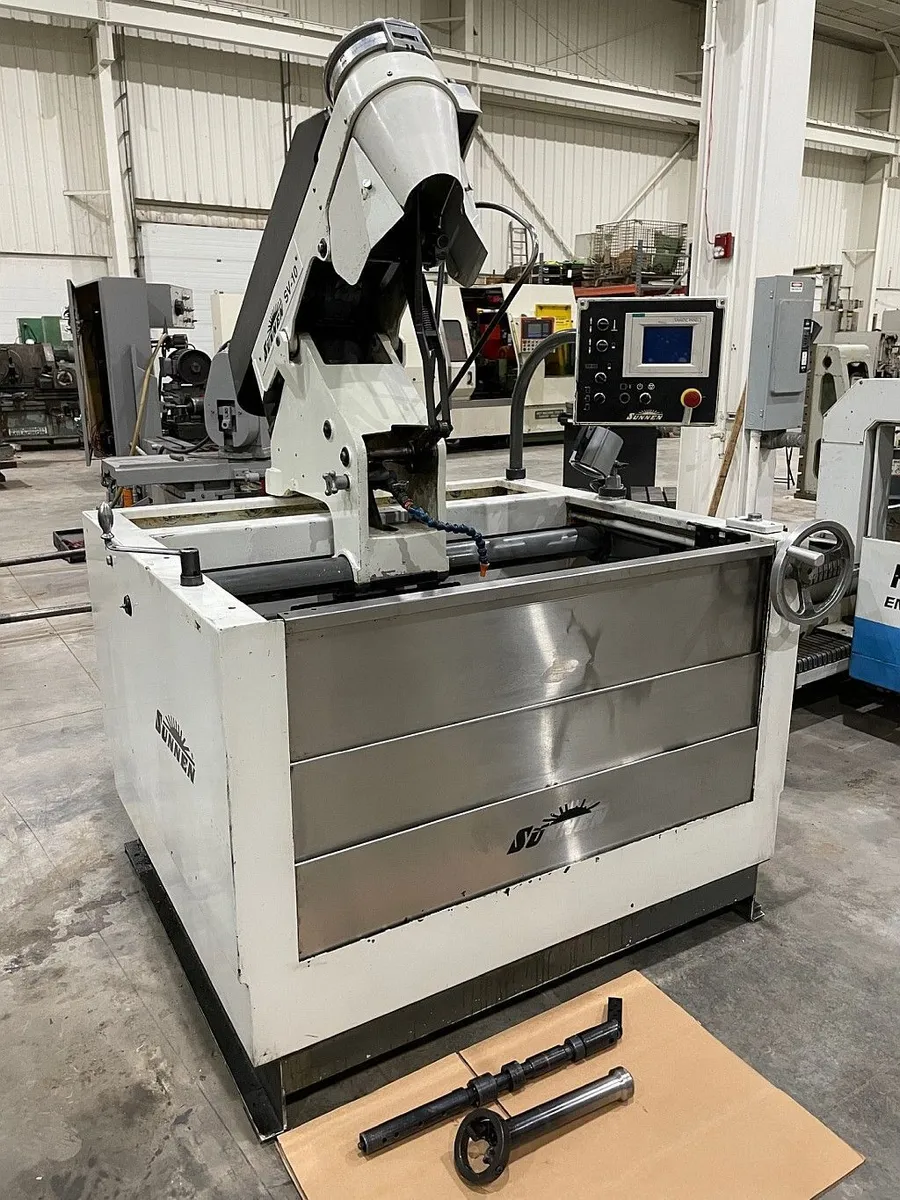

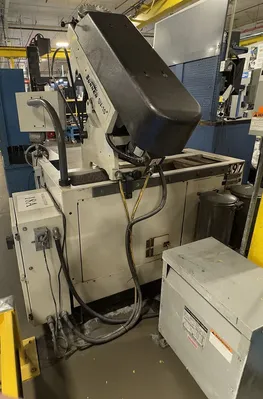

Sunnen SV-10-D "Cylinder King" Vertical Hone

Serial Number: 4E1-1101 New: 2006

CATALOG SPECIFICATIONS:
Sunnen Cylinder Hone Length Range:
Standard ............11" Max
w/Special Tooling .........18" Max
Bore Diameter Range from 3/4" to 8"
Workpiece Capacities:
Weight (including fixture)............1,496 # Max
Max Size............46"L x 22"W x 26.5"H

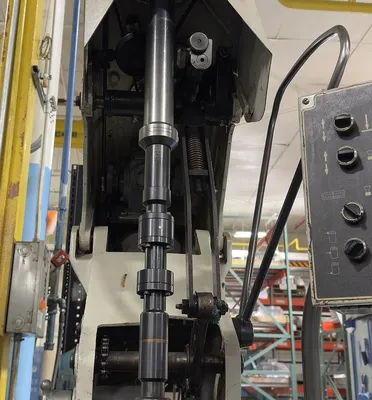

Spindle:
Speed - Variable from 90 to 350 RPM
Motor............3 HP
Stroker:
Speed - Variable from 40 to 80 SPM
Length............Up To 9"
Head Travel (manual) ............35"
Honing Fluid/Filter System
Capacity............55 Gals.
Weight............1,900 #
Dimensions - Approximate............90" Wide x 73" Deep x 87" High

EQUIPPED WITH:

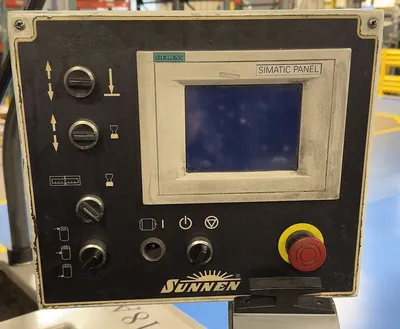

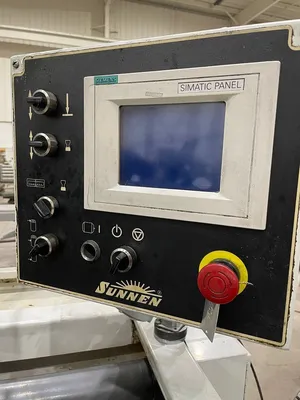

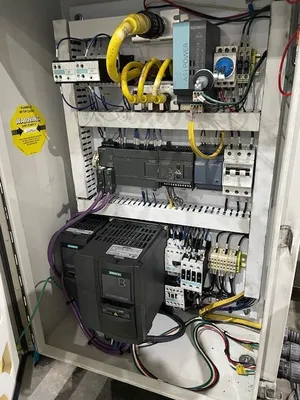

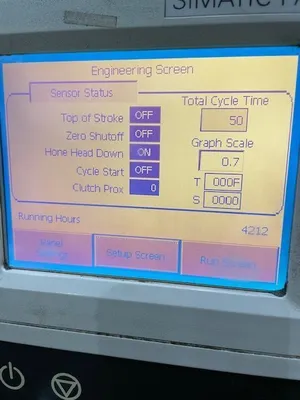

• Siemens Simatic TOUCH PLC Control
• Full bore profile display
• Programmable auto dwell
• Built in calculator for crosshatch, stroke, and spindle speed Multi-position rollover fixture Mechanical power stroking Stroke adjustment and positioning Built in coolant filtration system
• Settling tank
• (2) Filter cartridges
• Operator's light
• Assorted manuals

Price....fob truck, Wixom, MI
