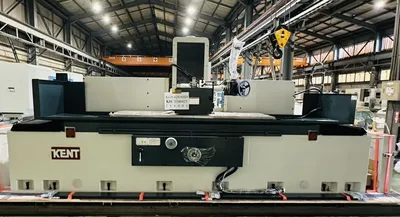

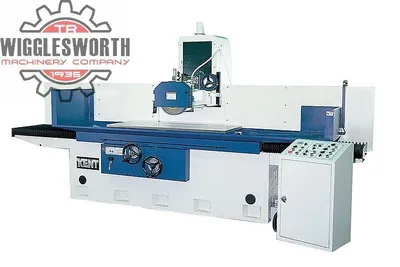

KENT MACHINERY MODEL KGS-620 AHD SURFACE GRINDER

Hydraulic table and electronic crossfeed
Automatic incremental downfeed
Column feed design
Teflon coated precision "V" and flat ways
24" x 80" Kanetsu electromagnetic chuck
Automatic lubrication system
Parallel dresser
Coolant system
Local service by factory trained technicians
Set-up and operator training provided by factory trained personnel

SPECIFICATIONS FOR KENT SURFACE GRINDER, MODEL KGS-620 AHD:

CAPACITY:
OVERALL WORKING AREA.................................. 24" x 80"
LONGITUDINAL TABLE TRAVEL............................. 87 3/4"
CROSSFEED COLUMN TRAVEL............................... 26"
DISTANCE SPINDLE CENTER TO TABLE...................... 23 5/8"
TABLELOAD INCLUDING MAGNETIC CHUCK.................... 3300 lbs
TABLE:
T-SLOT................................................ 5/8X3
LONGITUDINAL TABLE SPEED.............................. 15-85 fpm
CROSSFEED ON HANDWHEEL 1 GRA.......................... 0.0001"
CROSSFEED ON HANDWHEEL 1 REV.......................... 0.2"
T-SLOT................................................ 0.02"-0.47"
LONGITUDINAL TABLE SPEED.............................. 59 inch/min
SPINDLE:
WHEEL DIMENSION....................................... 14" x 2" x 5"
SPINDLE SPEED......................................... 1740 RPM
VERTICAL MOVEMENT
VERTICAL ON HANDWHEEL 1 GRA........................... 0.0001"
VERTICAL ON HANDWHEEL 1 REV........................... 0.02"
AUTO DOWNFEED INCREMENT............................... 0.0002"-0.0016"
RAPID ELEVATING....................................... 11 inch/min
MOTOR:
SPINDLE MOTOR......................................... 10X4 HP X P
ELEVATION MOTOR....................................... 1/2X4 HP X P
HYDRAULIC MOTOR....................................... 5X6 HP X P
COOLANT MOTOR......................................... 0.4 HP
CROSSFEED MOTOR....................................... 1/4X6 HP X P
DIMENSION & WEIGHT:
MACHINE HEIGHT........................................ 95"
FLOOR SPACE........................................... 244"X106"
NET WEIGHT............................................ 18,700 lbs
PACKING DEMINSION..................................... 213"X90"X99"
GROSS WEIGHT.......................................... 21,350

STANDARD ACCESSORIES

Wheel Balancing Base x 1pc
Wheel Balancing Arbor x 1pc
Grinding Wheel x 1pc
Wheel Flange x 1pc
Table Dresser x 1pc
Tool Box & Tools x 1set

PRICE: F.O.B. Houston, TX ............................

OPTIONAL ACCESSORIES:
OPTIONAL EQUIPMENT
Spindle Motor upgrade to 15HP..........................
Spindle invertor.......................................
Magnetic Separator & Paper Filter Coolant System (M4)..
Upgrade to fine pole chuck (extra).....................
Extra Wheel Flange.....................................
“Kent” Single Axis DRO System.........................
“Kent” Two Axes DRO System............................
Hydraulic Oil Cooler...................................
Table Splash Guard(Rear)...............................

PRICES ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

Kent Grinders are under warranty with the following conditions:
1. One year on mechanical parts and labor.
2. Ninety days on electrical parts and labor.
All machines must be operated according to Kent instruction and operation
manual.

Note: Any machine with 440 volts incoming voltage must be +/-5%.
