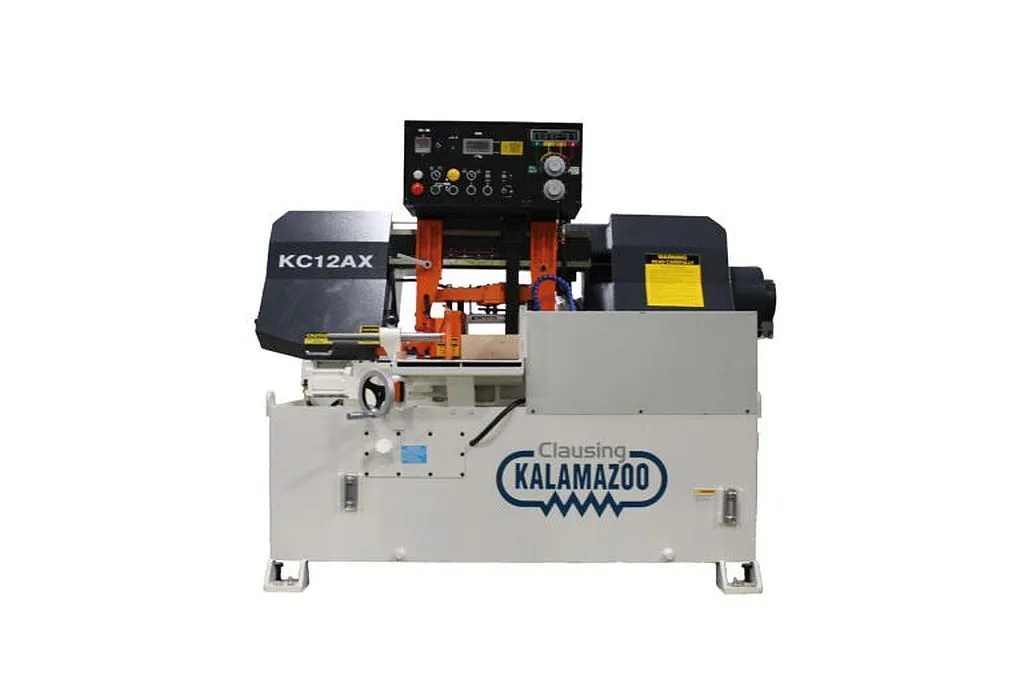

New Clausing Kalamazoo KC12AX Automatic Horizontal Bandsaw "In Stock Now"
Have one to sell?
ConditionNew
1 available
New
The new Clausing Kalamazoo KC12AX Automatic Horizontal Bandsaw features a 12.75" round capacity, 5 hp motor, and fully automatic operation. Equipped with variable speeds, coolant system, and hydraulic controls, this precision tool is ready to enhance your cutting efficiency.
Specifications:
• Machine Style..........Automatic
• Drive Type..........Infinitely variable blade speeds
• Maximum Capacity Round (inch)..........12.75
• Maximum Capacity Rectangle (inch)..........12.75 x 12.6
• Voltage..........230/460
• Phase..........3
• Coolant System..........Yes
• Angular Cuts at 45 Degrees (inch)..........N/A
• Blade Size..........1 ¼” x .042” x 150.4”
• Blade Speeds (SFPM)..........95-395
• Blade Guide Type..........Carbide
• Motor Horsepower..........5
• Machine weight..........3,086Lbs.
• Floor space..........76.5" x 76.5" x 73"
Machine Features:
• Full or semi-automatic operation
• Vise clamps work piece both sides of blade
• Blade breakage/stoppage switch
• Overload protection
• Hydraulic Blade Tension System
• Auto shutoff at end of material or after preset number of cuts
• Hydraulic down feed
• Recirculating Coolant System
• Front-mounted digital length gauge
• Flushing Hose for Cleanup
• Automatic height setting feature
• 2 Year limited warranty
The new Clausing Kalamazoo KC12AX Automatic Horizontal Bandsaw features a 12.75" round capacity, 5 hp motor, and fully automatic operation. Equipped with variable speeds, coolant system, and hydraulic controls, this precision tool is ready to enhance your cutting efficiency.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausings Horizontal Bandsaw
This model is designed for rugged production use, and it offers high production output and heavy-duty performance in both semi-automatic and fully automatic operation.
A powerful drive motor provides the power, and the optional hydraulic bundling attachment makes multiple cuts easy. The hydraulic shuttle feed system offers up to nine indexes.
Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Imperial
| Rect-Cap (H) | 12.75" |
| Rect-Cap (W) | 12.6" |
| Rounds-Cap | 12.75" |
| Power | 5 hp |
| Type (Auto, Manual, Semi) | Auto |
| Blade Width | 1.25" |
| Blade Thickness | 0.042" |
| Blade Length | 150.4" |
| Dimensions | 76.5" x 76.5" x 73" |
| Weight | 3,086Lbs |
Specifications:
• Machine Style..........Automatic
• Drive Type..........Infinitely variable blade speeds
• Maximum Capacity Round (inch)..........12.75
• Maximum Capacity Rectangle (inch)..........12.75 x 12.6
• Voltage..........230/460
• Phase..........3
• Coolant System..........Yes
• Angular Cuts at 45 Degrees (inch)..........N/A
• Blade Size..........1 ¼” x .042” x 150.4”
• Blade Speeds (SFPM)..........95-395
• Blade Guide Type..........Carbide
• Motor Horsepower..........5
• Machine weight..........3,086Lbs.
• Floor space..........76.5" x 76.5" x 73"
Machine Features:
• Full or semi-automatic operation
• Vise clamps work piece both sides of blade
• Blade breakage/stoppage switch
• Overload protection
• Hydraulic Blade Tension System
• Auto shutoff at end of material or after preset number of cuts
• Hydraulic down feed
• Recirculating Coolant System
• Front-mounted digital length gauge
• Flushing Hose for Cleanup
• Automatic height setting feature
• 2 Year limited warranty
