New 2025 IBARMIA Gear Head Drill Presses Available. MODELS B35, B40, B50 and more

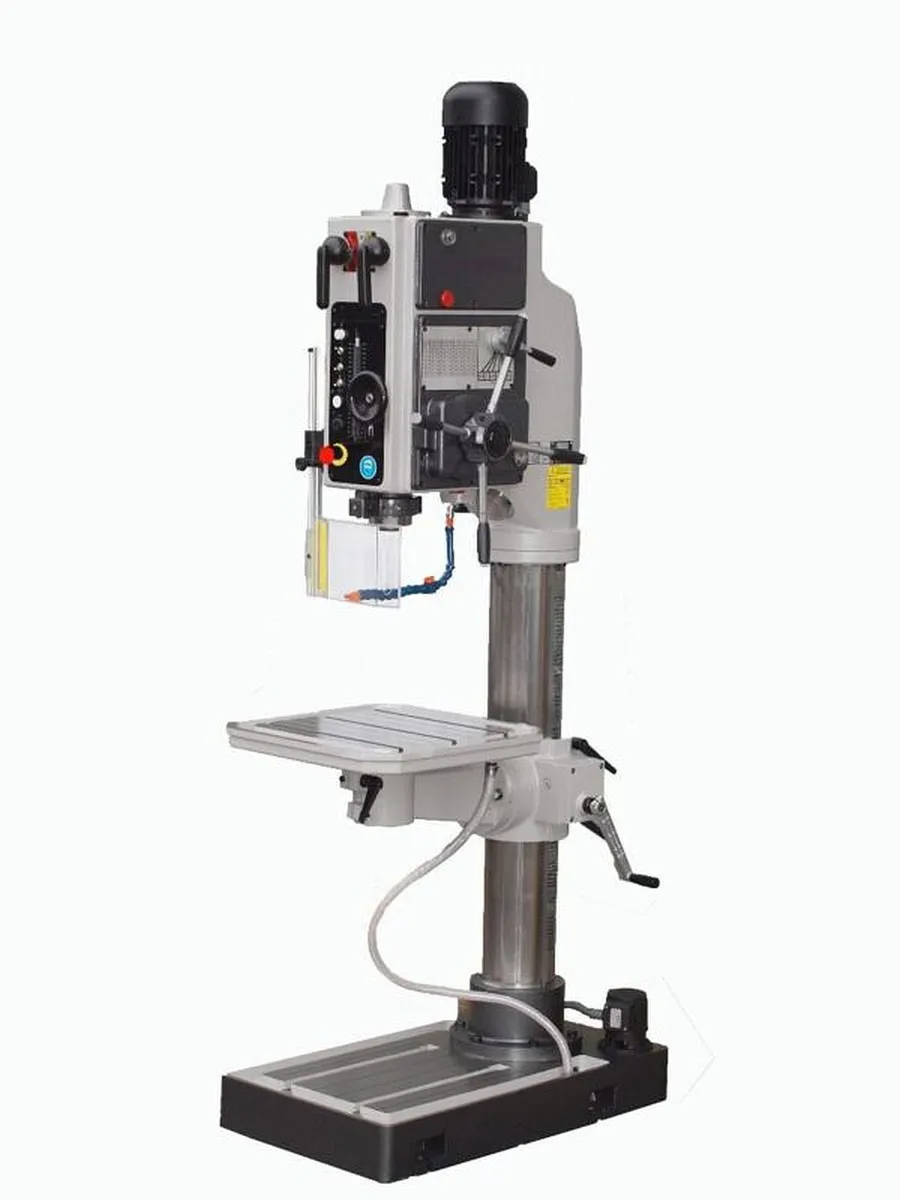

SPECIFICATIONS FOR IBARMIA MODELS B35, B40 & B50 GEARED HEAD DRILLING
MACHINE:

FEATURES:
*Gear Transmission
*9 Speeds
*Tool Ejector
*2 Automatic Feeds
*Electromagnetic Power Feeds
*Push Button Control to Engage and Disengage Power Feeds
*Coolant
*Work Light
Model B35 B40 B50

Spindle Taper 3MT 4MT 4MT
Drill Capacity in Steel 1-3/8" 2" 2"
Motor Horsepower 2 HP 3 HP 4 HP
Spindle Travel 7-7/8" 7-7/8" 9-1/16"
Number of Speeds 9 9 9
Speed Range 95 to 1500 61 to 1169 66 to 1255
Center of Spindle to round column 14-9/16" 15-3/16" 14-9/16"
Net Weight 1124 lbs 1343 lbs 1785 lbs

PRICE: F.O.B. MELROSE PARK IL.... $11,375.00 $ 12,698.00 $ 15,900.00

RMT INSTALLED OPTIONS

DESCRIPTION PRICE

Column spacer 7.875" for round columns only $ 970.00

Column spacer special heights from
8" to 16" on request $1,995.00

Pneumatic counterbalance (all models)
for use with multiple-spindle heads $ 800.00

Automatic spindle reverse with timerdelay $1,900.00

Lead screw tapping feature consisting of
brake motor, automatic spindle reverse with
timer delay including (1) lead screw and nut
assembly $7,850.00

U.S. electrics must be ordered and installed
when leadscrew tapping is ordered with machine $2,870.00

Lead screw and nut assembly (standard pitches) $ 595.00

MODEL NUMBER PRICE

MG1 Tiltable rotary table $ 460.00
MH-1 Co-ordinate table $5,000.00
MH-2 Co-ordinate table $6,300.00
MR-1 Sliding X-Y table $6,000.00

PRICES ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
