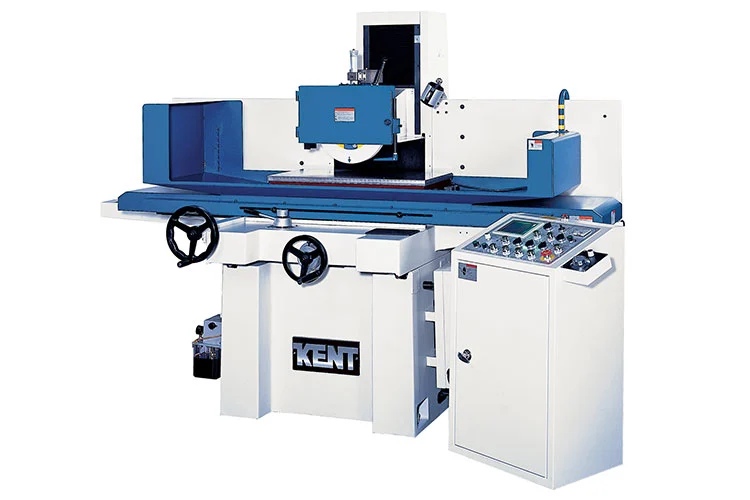

KENT MODEL KGS 84WM1

FEATURES:
V & FLAT TURCITE TABLE WAYS
DOUBLE V TURCITE CROSS WAYS
PROGRAMMABLE AUTOMATIC LUBRICATION SYSTEM
SERVO MOTOR DRIVEN AUTOMATIC DOWN-FEED
DOWNFEED & CROSSFEED BALLSCREWS
HALOGEN LIGHT
16" X 32" ELECTRO-MAGNETIC CHUCK W/ CONSOLE BUILT-IN VARIABLE POWER CHUCK
CONTROL
MAGNETIC SEPERATOR COOLANT SYSTEM
FULL LENGTH REAR SPLASH GUARD
TWO FRONT TABLE SPLASH GUARD
OVERHEAD PARALLEL DRESSER
PLC CROSS FEED
CONSOLE SETTING CROSS FEED TRAVEL
DOWN FEED MANUAL PULSE GENERATOR (MPG)

*NEW MITSUBISHI CONTROL & TOUCH-SCREEN TECHNOLOGY*

AUTOMATIC GRINDING CYCLE:
KEY-IN TOTAL REMOVAL AMOUNT AND ROUGH FEEDING INCREMENT
PRESET TOTAL FINE GRINDING AMOUNT AND FINE FEEDING INCREMENT
SPARK-OUT TIME SETTING
RETRACT DISTANCE SETTING
TABLE PARKING SELECTION
SPINDLE & COOLANT PUMP STOP SELECTION

SPECIFICATIONS:

CAPACITY:
OVERALL WORKING AREA................................... 32" X 16"
LONGITUDINAL TABLE TRAVEL.............................. 36.6"
CROSS FEED SADDLE TRAVEL............................... 17.7"
DISTANCE SPINDLE CENTER TO TABLE....................... 24"
TABLE LOAD INCLUDING MAGNETIC CHUCK.................... 1540 LBS
TABLE & CROSS FEED:
T-SLOTS (3)............................................ 1/2"
LONGITUDINAL TABLE SPEED WM1........................... 4 - 82 FPM
WM2........................... 4 - 98 FPM
CROSSFEED ON HANDWHEEL (WM1)........................... 0.001" GRADUATION
REVOLUTION OF HANDWHEEL (WM1).......................... 0.2 IPR
CROSSFEED ON MPG (WM2)................................. 0.00005" GRADUATION
REVOLUTION OF MPG (WM2)................................ 0.005 IPR
AUTO CROSS FEED PER STROKE WM1......................... 0.004" - 0.5"
WM2......................... 0.0002" - 4"
RAPID CROSS FEED WM1................................... 48 IPM
WM2................................... 60 IPM
GRINDING WHEEL:
WHEEL DIMENSION (OD x T x ID).......................... 14" x 1.5" x 5"
SPINDLE SPEED.......................................... 1740 RPM
VERTICAL MOVEMENT:
VERTICAL HANDWHEEL..................................... 0.00005" GRADUATION
VERTICAL HANDWHEEL REVOLUTION.......................... 0.005 IPR
AUTO DOWN FEED INCREMENT (MINIMUM)..................... 0.00005"
RAPID ELEVATING........................................ 12 IPM
MOTOR:
SPINDLE MOTOR.......................................... 7.5 HP
HYDRAULIC MOTOR........................................ 3 HP
MACHINE NET WEIGHT..................................... 6160 LBS

STANDARD ACCESSORIES: (INCLUDED)

* WHEEL BALANCING BASE * WHEEL BALANCING ARBOR
* GRINDING WHEEL * WHEEL FLANGE
* TABLE DRESSER * HALOGEN WORK LIGHT

OPTIONAL ACCESSORIES:

COMBINATION MAGNETIC SEPARATOR & PAPER COOLAN SYSTEM (M2)
EXTRA WHEEL FLANGE
TABLE SPLASH GUARD (REAR)

TERMS:

1. DETAILED SPECIFICATIONS - SEE CATALOGUE
2. WARRANTY OF MECHANICAL PARTS ARE ONE YEAR BASED ON ONE SHIFT NORMAL
WORKING CONDITIONS EXCLUDING MISUSE BY ULTIMATE CUSTOMERS
3. WARRANTY OF ELECTRICAL PARTS ARE NINTEY DAYS
4. OUR RESPONSIBILITY CEASES WHEN DELIVERY IS MADE TO THE CARRIER AND
CLAIMS FOR LOSS OR DAMAGE MUST BE HANDELED BY PURCHASE AGAINST CARRIER
5. PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
6. PRICES ARE BASED ON F.O.B. OUR WAREHOUSE IN SOUTH ELGIN, IL
