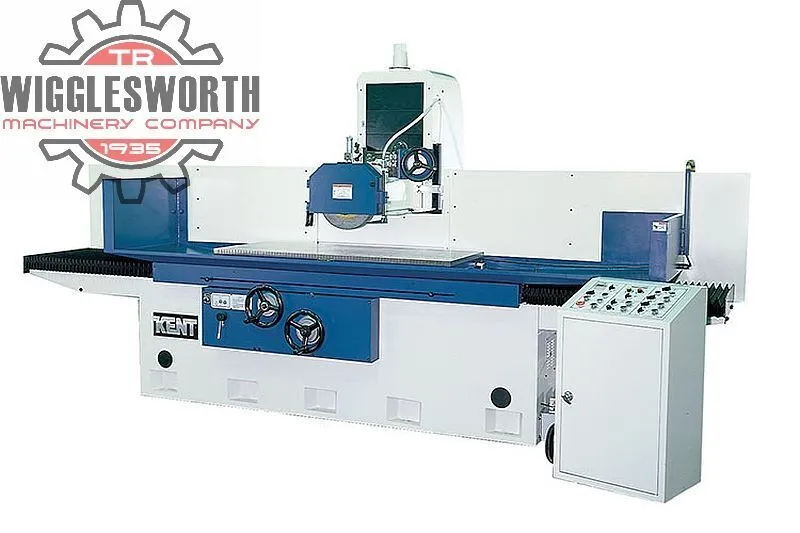

KENT MACHINERY MODEL KGS-615AHD AUTOMATIC PRECISION SURFACE GRINDER

FEATURES:
V & FLAT TURCITE WAYS
HYDRAULIC TABLE
SSCU CONTROLLED CROSS-FEED
AUTO-INCREMENTAL DOWN-FEED
COLUMN TRAVELING CROSS-FEED
CONSOLE SETTING CROSS-FEED TRAVEL
TABLE PROXIMITY SWITCHES
RE-CIRCULATING LUBRICATION SYSTEM
FULL LENGTH REAR SPLASH GUAR

SPECIFICATIONS:

CAPACITY:
OVERALL WORKING AREA............................... 60" X 24"
LONGITUDINAL TABLE TRAVEL.......................... 63"
CROSS FEED COLUMN TRAVEL........................... 26"
DISTANCE SPINDLE CENTER TO TABLE................... 23 5/8"
TABLE LOAD INCLUDING MAGNETIC CHUCK................ 2860 LBS
TABLE & CROSS FEED:
T-SLOT............................................. 5/8" X 3"
LONGITUDINAL TABLE SPEED........................... 15 - 85 FPM
CROSS FEED ON HAND WHEEL........................... 0.001" GRADUATION
REVOLUTION OF HANDWHEEL............................ 0.2 IPR
AUTO CROSS FEED PER STROKE......................... 0.02" - 0.47"
RAPID CROSS FEED................................... 59 IPM
GRINDING WHEEL:
WHEEL DIMENSION (OD x T x ID)...................... 14" x 2" X 5"
SPINDLE SPEED...................................... 1740 RPM
VERTICAL MOVEMENT:
VERTICAL HANDWHEEL................................. 0.0001" GRADUATION
VERTICAL HANDWHEEL REVOLUTION...................... 0.02 IPR
AUTO DOWNFEED INCREMENT (8 STEPS).................. 0.0002" - 0.0016"
RAPID ELEVATING.................................... 11 IPM
MOTOR:
SPINDLE MOTOR...................................... 10 HP (220/440/60/3)
HYDRAULIC MOTOR.................................... 5 HP (220/440/60/3)
SHIPPING WEIGHT.................................... 17,400 LBS
PACKING DIMENSIONS................................. 186" x 89" x 98"

STANDARD ACCESSORIES: (INCLUDED)

* 24" x 60" ELECTRO-MAGNETIC CHUCK WITH
CONSOLE BUILT IN VARIABLE POWER CHUCK CONTROL
* MAGNETIC SEPARATOR & COOLANT SYSTEM (M2)
* HYDRAULIC PARALLEL DRESSER

* WHEEL BALANCING BASE *WHEEL BALANCING ARBOR
* GRINDING WHEEL *WHEEL FLANGE
* TABLE DRESSER *TOOL BOX & TOOLS

OPTIONAL EQUIPMENT:

MAGNETIC SEPARATOR & PAPER FILTER COOLANT SYSTEM (M4)
EXTRA WHEEL FLANGE
"MAGNASCALE" SINGLE AXIS DRO SYSTEM
DRO INSTALLATION & DISPLAY ARM & TRAY, MOUNTING BRACKET (1-AXIS)
HYDRAULIC OIL COOLER
TABLE SPLASH GUARD (REAR)

TERMS:

1. DETAILED SPECIFICATIONS - SEE CATALOGUE
2. WARRANTY OF MECHANICAL PARTS ARE ONE YEAR BASED ON ONE SHIFT NORMAL
WORKING CONDITIONS EXCLUDING MISUSE BY ULTIMATE CUSTOMERS
3. WARRANTY OF ELECTRICAL PARTS ARE NINTEY DAYS
4. OUR RESPONSIBILITY CEASES WHEN DELIVERY IS MADE TO THE CARRIER AND
CLAIMS FOR LOSS OR DAMAGE MUST BE HANDELED BY PURCHASER AGAINST CARRIER
5. PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
6. PRICES ARE BASED ON F.O.B. OUR WAREHOUSE IN CALIFORNIA
