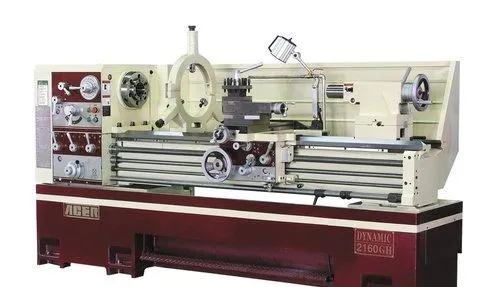

ACER DYNAMIC 21" SERIES HIGH SPEED PRECISION LATHE

FEATURES:

* THE 21" SERIES IS AVAILABLE IN 40", 60", 80" AND 120" DISTANCE
BETWEEN CENTERS
* 10 HP SPINDLE MOTOR 220/440 VOLTS 3 PHASE
* HARDENED AND GROUND MEEHANITE CASTING BEDWAY
* HARDENED AND GROUND GEARS AND SPINDLES
* 18 SPINDLE SPEEDS (25-1540 RPM)
* QUICKCHANGE GEAR BOX W/ DIRECT SELECTION FOR INCH/METRIC THREAD
* D1-8 CAMLOCK WITH 3.34" SPINDLE BORE
* AUTOMATIC LONGITUDINAL MULTIPLE FEED STOP

SPECIFICATIONS:
GENERAL CAPACITY:
CENTER HEIGHT.................................... 10.62"
MAX. SWING OVER BED.............................. 21.25"
MAX. SWING OVER GAP.............................. 26.77"
MAX. SWING OVER CROSS SLIDE...................... 14.17"
DISTANCE BETWEEN CENTERS......................... 39.37"/59"/78.74"/118.11"
MAIN SPINDLE:
SPINDLE NOSE..................................... D1-8
SPINDLE BORE..................................... 3.34"
SPINDLE SPEEDS (18).............................. 25 - 1545 RPM
CARRIAGE:
CROSS SLIDE TRAVEL............................... 12.99"
COMPOUND REST TRAVEL............................. 5.90"
TAILSTOCK SPINDLE DIAMETER....................... 2.95"
TAILSTOCK SPINDLE TRAVEL......................... 6.69"
TAILSTOCK SPINDLE TAPER.......................... MT #5
BED:
BED WIDTH........................................ 13.77"
LEADSCREW........................................ 4 TPI OR 6 MM/PITCH
METRIC PITCH THREADS (24)........................ 0.5 - 7 MM/PITCH
INCH THREADS (36)................................ 4 - 56 TPI
MODULE PITCH THREADS (16)........................ 0.25 - 3.5 MP
DIAMETRAL PITCH THREADS (36)..................... 8 - 112 DP
FEEDING RANGE:
RANGE OF LONGITUDINAL FEEDS...................... 0.002 - 0.035 IPR
0.06 - 0.88 MM/REV
RANGE OF CROSS FEEDS............................. 0.001 - 0.0175 IPR
0.003 - 0.44 MM/REV
POWER:
MAIN SPINDLE MOTOR............................... 10 HP
RAPID FEED MOTOR (OPTIONAL)...................... 90 W
COOLANT PUMP MOTOR............................... 1/8 HP

STANDARD ACCESSORIES:

12" D1-8 THREE JAW CHUCK BUILT-IN COOLANT SYSTEM
12" D1-8 FOUR JAW CHUCK FULL LENGTH SPLASH GUARD
BEARING TYPE STEADY REST (3.14"-11.02") 17" FACE PLATE
4-WAY TOOL POST HALOGEN WORK LIGHT
LONGITUDINAL CARRIAGE STOP TOOL BOX W/ TOOLS

OPTIONAL ACCESSORIES (ADDITIONAL):

1. 12" 3-JAW INDEPENDENT CHUCK (D1-8)
2. 16" 4-JAW INDEPENDENT CHUCK (D1-8)
3. FOLLOW REST (1.18"-6.69")
4. 20" FACE PLATE
5. "ALORIS" TOOL POST & 4 HOLDERS (#4-BS)
6. "ALORIS" TOOL POST & 6 HOLDERS (#4 SET)
7. TOOL POST & 4 HOLDERS "DORIAN" QUICK CHANGE
8. FOUR POSITION CARRIAGE STOP
9. MICROMETER STOP
10. 5C COLLETS CLOSER (LEVER-TYPE)
11. 5C COLLETS SET 1/6" - 1 1/16" X 16TH; 17PCS SET
12. INSTALLATION FEE FOR COLLET CLOSER
13. TAPER TURNING ATTACHMENT
14. INSTALLATION FEE FOR TAPER TURNING ATTACHMENT
15. "NEWALL" 2-AXIS D.R.O. 12" X 60"
12" X 80"
12" X 120"
16. "SONY" 2-AXIS D.R.D. 12" X 60"
12" X 80"
12" X 120"
17. INSTALLATION FEE FOR D.R.O.
