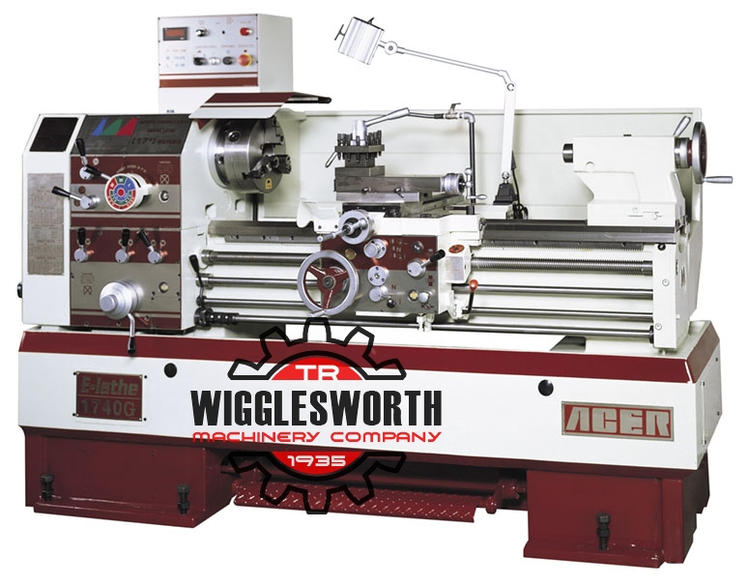

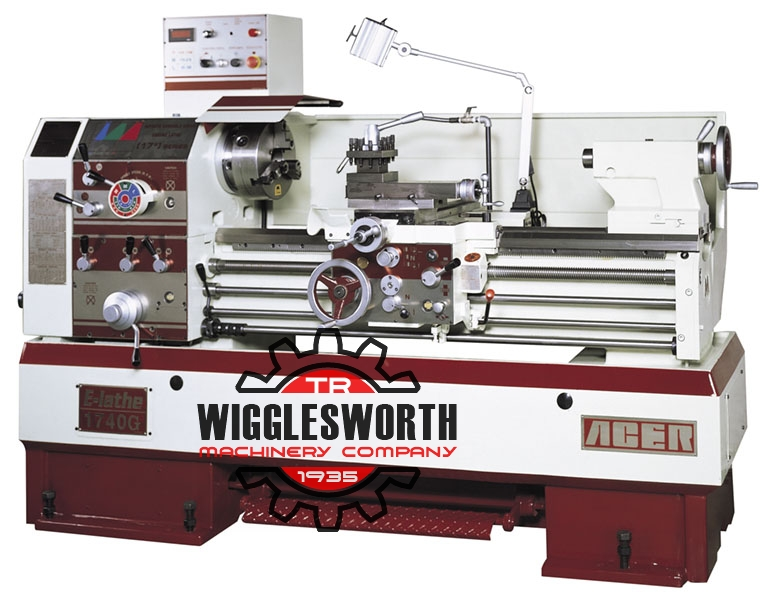

ACER 17" E-LATHE SERIES HIGH PRECISION GEARED HEAD VARIABLE SPEED LATHE

E-LATHE FEATURES:

* 2 1/4" SPINDLE BORE WITH D1-6 SPINDLE NOSE
* 7.5 HP SPINDLE MOTOR & 10HP FREQUENCY DRIVE
* INFINITE RPM (42-2,000 RPM) - 3 GEARED RANGES
* POWER SUPPLY: ACCEPTS 220V / 1-PH OR 220V / 3PH
* HARDENED AND GROUND MEEHANITE CASTING BEDWAY
* HARDENED AND GROUND GEARS AND SPINDLE
* AUTOMATIC LONGITUDINAL MULTIPLE FEED STOP

SPECIFICATIONS:

GENERAL CAPACITY:
SWING OVER BED....................................... 17"
SWING OVER GAP (GAP TYPE ONLY)....................... 26"
SWING OVER CROSS SLIDE............................... 9 5/8"
DISTANCE BETWEEN CENTERS............................. 40"/60"/80"
MAIN SPINDLE:
SPINDLE NOSE......................................... D1-6
SPINDLE BORE DIAMETER................................ 2 1/4"
TYPE OF SPINDLE NOSE................................. MT #6
TAPER OF CENTER...................................... MT #4
SPINDLE SPEEDS (INFINITE)............................ 42 - 2000 RPM
CARRIAGE:
CROSS SLIDE TRAVEL................................... 8 5/8"
COMPOUND REST TRAVEL................................. 7"
MAX. SIZE CUTTING TOOL............................... 1" X 1"
TAILSTOCK:
SPINDLE DIAMTER...................................... 2 1/4"
SPINDLE TRAVEL....................................... 6"
TAPER OF CENTER...................................... MT #4
BED:
BED LENGTH........................................... 73"/93"/113"
BED WIDTH............................................ 12"
WIDTH OF GAP......................................... 8 3/4"
THREADING & FEEDING:
SYSTEM............................................... INCH
METRIC PITCH THREADS (22)............................ 0.5 - 7 MM/PITCH
INCH PITCH THREADS (36).............................. 4 - 56 TPI
MODULE PITCH THREADS (12)............................ 0.5 - 3.5 MP
DIAMETRAL PITCH THREADS (21)......................... 8 - 56 DP
RANGE OF LONGITUDINAL FEEDS.......................... 0.002 - 0.028 IPR
RANGE OF CROSS FEEDS................................. 0.001 - 0.014 IPR
POWER:
MAIN DRIVE MOTOR..................................... 7.5 HP
COOLANT PUMP MOTOR................................... 1/8 HP
DIMENSIONS:
FLOOR SPACE.......................................... 85"/105"/124" X 40"
NET WEIGHT........................................... 3500/3950/4400 LBS
GROSS WEIGHT......................................... 3750/4260/4750 LBS
PACKING DIMENSIONS:
1740G................................................ 88" X 41" X 67"
1760G................................................ 107" X 41" X 67"
1780G................................................ 131" X 41" X 67"

STANDARD ACCESSORIES:

10" D1-6 THREE JAW CHUCK BUILT-IN COOLANT SYSTEM
4-WAY TOOL POST FULL LENGTH SPLASH GUARD
STEADY REST (0.6-7") OWNER'S MANUAL
HALOGEN WORK LIGHT TOOLBOX WITH TOOLS

SPECIAL PACKAGES AVAILABLE
SPECIAL PACKAGE PRICE INCLUDES:
E-LATHE "17" SERIES LATHE W/STANDARD ACCESSORIES
"NEWALL" DP700 2-AXIS DIGITAL READOUT (D.R.O)
INSTALLED AT ACER WAREHOUSE

OPTIONAL ACCESSORIES:
FOLLOW REST W/ BRASS TIP (0.78" - 4.3" RANGE)
8" 3-JAW CHUCK (D1-6)
10" 4-JAW INDEPENDENT CHUCK (D1-6)
12" 4-JAW INDEPENDENT CHUCK (D1-6)
12" DRIVE PLATE
"ALORIS" TOOL POST & 4 HOLDERS (#3 - BS)
"ALORIS" TOOL POST & 6 HOLDERS (#3 - IP)
"DORIAN" QUICK CHANGE TOOL POST & 4 HOLDERS
(SD35CXA-TS).
MICROMETER STOP
FOUR POSITION CARRIAGE STOP
5C COLLECT CLOSER (LEVER-TYPE)
5C COLLECT SET (1/16" TO 1 1/16" X 16TH; 17 PC/SET)
INSTALLATION FEE FOR COLLECT CLOSER
TAPER TURNING ATTACHMENT
"MAGNASCALE" 2-AXIS DRO (10" X 40"/60"/80")
"NEWALL" DP700 2-AXIS DRO (10" X 40"/60"/80")
INSTALLATION FEE FOR NEWALL DP700 OR MAGNASCALE DRO
440/V (3 PHASE) INVERTER DRIVE UPGRADE

*** ABOVE PRICES ARE BASED ON F.O.B. PISCATAWAY, NJ
*** PRICES AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT NOTICE
*** MANUFACTURER RESERVES THE RIGHT TO MODIFY THE DESIGN WITHOUT NOTICE
