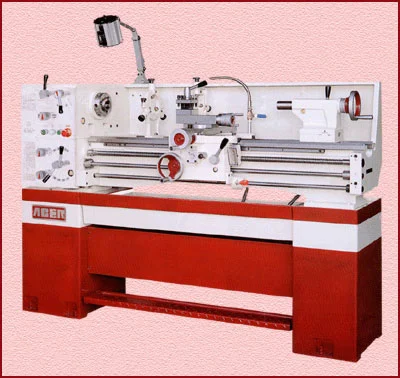

Introducing the New Acer Dynamic 1340G Precision Engine Lathe, boasting a 13" swing, 40" between centers, and a 3 HP motor. With 2,000 RPM, 24 volts safety circuit, and a host of included accessories, it offers unmatched performance for your machining needs.
Specifications:
General Capacity:
• Center height..........6-1/4"
• Swing over bed..........13"
• Swing over gap (Gap type only)..........19-1/4"
• Swing over cross slide..........7-5/8"
• Distance between centers..........40"
Main Spindle:
• Spindle nose..........D1-4 or A1-5
• Spindle bore diameter..........1-1/2"
• Type of spindle nose..........MT.# 5
• Taper of center..........MT.# 3
• Spindle speeds..........80~2000 rpm (9 steps)
Carriage:
• Cross slide travel..........6-7/8"
• Compound rest travel..........4"
• Max. size cutting tool..........3/4" x 3/4"
Tailstock:
• Spindle diameter..........1-7/16"
• Spindle travel..........4-3/8"
• Taper of center..........MT.# 3
Bed:
• Bed length..........54"
• Bed width..........7-1/2"
• Width of gap..........7-5/8"
Threading & Feeding:
• System..........Inch
• Pitch of leadscrew..........24 Ø, 4 TPI
• Metric pitch threads..........0.4~7mm/pitch (30 kinds)
• Inch pitch threads..........3~56 TPI (32 kinds)
• Module pitch threads.......... --
• Diametral pitch threads.......... --
• Range of longitudinal feeds..........0.0016~0.03"/rev.
• Range of cross feeds..........0.0008~0.015"/rev.
Power:
• Main drive motor..........3 HP
• Rapid traverse motor.......... --
• Coolant pump motor..........1/8 HP
Dimensions:
• Floor Dimension..........67-3/4" x 28-3/8"
• Net Weight..........1320 lbs
• Gross Weight..........1540 lbs
• Packing Dimension..........75" x 30" x 58"
Machine Features:
• HEADSTOCK: All gears are made with chromium molydenum steel and are hardened & ground to its accuracy. A forced lubrication system lubricates all running gears and bearing within the headstock.
• GEAR BOX: Unique two lever universal gear box offers a wide range of cutting capacity. All ranges can be reached by moving two levers and two dials.
• SPINDLE: 1-1/2″ bored spindle is made from medium carbon steel and is induction hardened & ground to its final accuracy. It also has a two-point support with both bearings being taper roller.
• APRON: Automatic feeding and threading in apron are fully interlocked to prevent simultaneous engagement of both functions.
• TAILSTOCK: Keyed 1-7/16″ diametered quill is hardened to Rockwell C 55° & ground to its inspection accuracy.
• Nine-step speeds.
• Oil level indicator.
• Standard foot brake.
• 24 volts safety control circuit.
• Weigh in at 1,320 / 1,380 lbs.
• Safety overload device.
• Forward/stop/reverse lever.
• Chip-pan (Removable type).
• Oil level indicator.
• Precision ground saddle ways.
• Half nut engagement handle.
• Hexagonal bed web.
• Oil lubricated leadscrew.
• 7-1/2″ wide bed way with FC-30 casting iron.
• Two-tone automotive paint.
Standard Accessories: (Included)
• 10" Face Plate
• 4-Way Tool Post
• Steady Rest (0.78" - 2.15")
• Follow Rest (0.78" - 1.97")
• Foot Brake
• Micrometer Stop
• Rear Splash Guard Full Length
• Built-In Coolant System
• Halogen Work light
• Toolbox W/Tools
Optional Accessories:
1. 6" 3-Jaw Chuck D1-4
2. 8" 4-Jaw Chuck D1-4
3. "ALORIS" Tool Post & 4 Holders (#2-BS)
4. "ALORIS" Tool Post & 6 Holders (#2 Set)
5. "DORIAN" Tool Post & 4 Holders (SD30BXA-TS)
6. Four Position Carriage Stop
7. 5C Lever Type Collet Closer
8. Installation Fee For Collet Closer
9. 5C Collet Set-17pcs (1/16" increment 1/16"~1-1/16")
10. Taper Turning Attachment
11. Installation Fee For Taper Turning Attachment
12. "NEWALL" 2-Axis DRO (8" X 40" Travel)
13. "MAGNASCALE" 2-Axis DRO (8" X 40" Travel)
14. Installation Fee For DRO
15. Chuck Guard & Safety Switch
16. Installation Fee on Chuck Guard and Safety Switch
