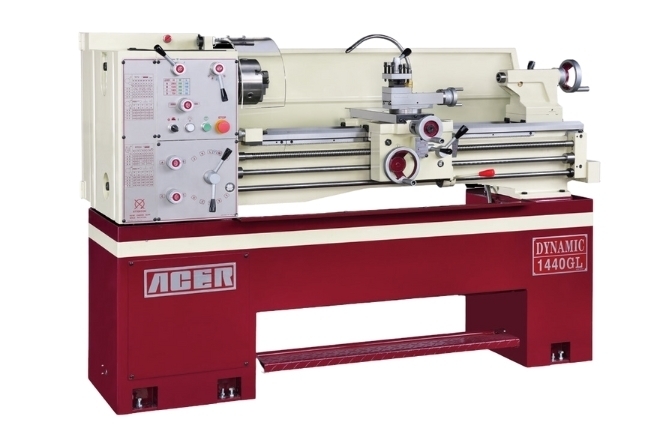

ACER DYNAMIC 1440GL PRECISION LATHE

FEATURES:

* 1-9/16" (40 MM) SPINDLE BORE & D1-4 CAMLOCK SPINDLE NOSE
* 3 HP SPINDLE INVERTER MOTOR
* 5 HP SPINDLE MOTOR
* 12-SPINDLE SPEEDS: 50 ~ 2,200 RPM
* AUTO. FEED & THREADING ARE INTERLOCKED TO PREVENT SIMULTANEOUS FUNCTIONS
* HARDENED AND GROUND BEDWAYS
* PRECISION GROUND GEAR AND SPINDLE IN HEADSTOCK
* SPINDLE IS EQUIPPED WITH PRECISION TAPER ROLLER BEARINGS
* ENCLOSED GEARBOX AND APRON BUILT-IN SAFETY OVER-LOAD
FRICTION CLUTCH
* APRON HANDWHEEL IS SUPPLIED AT LEFT SIDE OF CARRIAGE
* TAILSTOCK BARREL WITH METRIC/INCH SCALE

SPECIFICATIONS:

GENERAL CAPACITY:
CENTER HEIGHT........................................ 6 3/4"
SWING OVER BED....................................... 14"
SWING OVER GAP (GAP TYPE ONLY)....................... 20.75"
SWING OVER CROSS SLIDE............................... 8.75"
DISTANCE BETWEEN CENTERS............................. 39.38"
MAIN SPINDLE:
SPINDLE NOSE......................................... D1-4
SPINDLE BORE DIAMETER................................ 1 9/16"
TYPE OF SPINDLE NOSE................................. MT #5
TAPER OF CENTER...................................... MT #3
SPINDLE SPEEDS (8 STEPS)............................. 36 - 2200 RPM
CARRIAGE:
CROSS SLIDE TRAVEL................................... 7"
COMPOUND REST TRAVEL................................. 3 3/4"
MAX. SIZE CUTTING TOOL............................... 3/4" X 3/4"
TAILSTOCK:
SPINDLE DIAMETER..................................... 1 9/16"
SPINDLE TRAVEL....................................... 3 2/5"
TAPER OF CENTER...................................... MT #3
BED:
BED LENGTH........................................... 65"
BED WIDTH............................................ 9"
WIDTH OF GAP......................................... 7 5/8"
THREADING & FEEDING:
SYSTEM............................................... INCH/METRIC
METRIC PITCH THREADS (22)............................ 0.25 - 6 MM/PITCH
INCH PITCH THREADS (32).............................. 3 - 56 TPI
RANGE OF LONGITUDINAL FEEDS.......................... 0.002 - 0.04 IPR
RANGE OF CROSS FEEDS................................. 0.001 - 0.02 IPR
POWER:
MAIN DRIVE MOTOR..................................... 5 HP
COOLANT PUMP MOTOR................................... 1/8 HP

FLOORSPACE........................................... 75" X 30"
NET WEIGHT........................................... 2310 LBS
SHIPPING DIMENSIONS.................................. 78" X 30" X 60"

STANDARD ACCESSORIES: (INCLUDED)

CHANGE GEAR SET DEAD CENTERS
FOUR WAY TOOL POST SPINDLE SLEEVE
BUILT-IN COOLANT SYSTEM WORK LIGHT
FOOT BRAKE LEVELING PADS & BOLTS
TOOLBOX W/ TOOLS OWNERS MANUAL

OPTIONAL ACCESSORIES:

6" 3-JAW CHUCK (D1-4)
8" 4-JAW CHUCK (D1-4)
"ALORIS" TOOL POST & 4 HOLDERS (#2-BS)
"ALORIS" TOOL POST & 6 HOLDERS (#2 SET)
"DORIAN" TOOL POST & 4 HOLDERS (SD30BXA-TS)
FOUR POSITION CARRIAGE STOP
5C COLLET CLOSER (LEVER-TYPE)
INSTALLATION FEE FOR COLLET CLOSER
5C COLLET SET-17PCS SET (1/16" INCREMENT 1/16 TO 1-1/16")
TAPER TURNING ATTACHMENT
INSTALLATION FEE FOR TAPER TURNING ATTACHMENT
"NEWALL" 2-AXIS DRO (8" X 40" TRAVEL)
"MAGNESCALE" (SONY) 2-AXIS DRO (8" X 40" TRAVEL)
INSTALLATION FEE FOR DRO
CHUCK GUARD WITH SAFETY SWITCH
INSTALLATION FEE ON CHUCK GUARD AND SAFETY SWITCH

** ABOVE PRICES ARE BASED ON F.O.B. PISCATAWAY, N.J.
** PRICES AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
** MANUFACTURER RESERVES THE RIGHT TO MODIFY THE DESIGN WITHOUT NOTICE
