FEATURES:

* 3 HP SPINDLE MOTOR
* PRECISION GROUND GEARS AND SPINDLE IN HEADSTOCK
* SPINDLE EQUIPPED WITH PRECISION TAPER ROLLER BEARINGS
* ENCLOSED GEARBOX AND FEEDSCREW W/ BUILT IN SAFTEY OVER-LOAD FRICTION CLUTCH
* 36 - 2,200 RPM INFINITE SPEED
* D1-4 CAMLOCK SPINDLE NOSE WITH 1 1/2" SPINDLE BORE
* "TOSHIBA" VECTOR-TYPE OR "FUJI" 5 HP FREQUENCY INVERTER
* ACCEPTS 1 OR 3 PHASE 220V POWER SUPPLY
* NEW AND ENHANCED DESIGN PC BOARD
* 9" BED WIDTH WITH HARDENED AND GOUND BEDWAY
* POWER SUPPLY: ACCEPTS 220V / 1-PH OR 220V / 3-PH

SPECIFICATIONS:

GENERAL CAPACITY:
CENTER HEIGHT........................................ 7"
SWING OVER BED....................................... 14"
SWING OVER GAP (GAP TYPE ONLY)....................... 20 3/4"
DISTANCE BETWEEN CENTERS............................. 40"
MAIN SPINDLE:
SPINDLE NOSE......................................... D1-4
SPINDLE BORE DIAMETER................................ 1 1/2"
TYPE OF SPINDLE NOSE................................. MT #5
TAPER OF CENTER...................................... MT #3
SPINDLE SPEEDS (INFINITE)............................ 36 - 2000 RPM
CARRIAGE:
CROSS SLIDE TRAVEL................................... 8"
COMPOUND REST TRAVEL................................. 3 1/2"
MAX. SIZE CUTTING TOOL............................... 3/4" X 3/4"
TAILSTOCK:
SPINDLE DIAMETER..................................... 1 7/16"
SPINDLE TRAVEL....................................... 4"
TAPER OF CENTER...................................... MT #3
BED:
BED LENGTH........................................... 54"
BED WIDTH............................................ 9"
WIDTH OF GAP......................................... 8"
THREADING & FEEDING:
SYSTEM............................................... INCH/METRIC
METRIC PITCH THREADS (32)............................ 0.4 - 7 MM/PITCH
INCH PITCH THREADS (32).............................. 4 - 56 TPI
RANGE OF LONGITUDINAL FEEDS.......................... 0.0026 - 0.0368 IPR
RANGE OF CROSS FEEDS................................. 0.0008 - 0.0122 IPR
POWER:
MAIN DRIVE MOTOR..................................... 3 HP
COOLANT PUMP MOTOR................................... 1/8 HP
ELECTRICS............................................ 1 OR 3 PHASE/220/60

FLOORSPACE........................................... 70" X 32"
NET WEIGHT........................................... 1580 LBS
SHIPPING DIMENSIONS.................................. 77" X 33" X 63"

STANDARD ACCESSORIES: (INCLUDED)

4-WAY TOOL POST 10" FACE PLATE
MICROMETER STOP BUILT-IN COOLANT SYSTEM
STEADY REST (0.78" - 2.15") FULL LENGTH SPLASH GUARD
FOLLOW REST (0.78" - 1.97") FOOT BRAKE
HALOGEN WORKLIGHT TOOLBOX W/ TOOLS

SPECIAL PACKAGES AVAILABLE

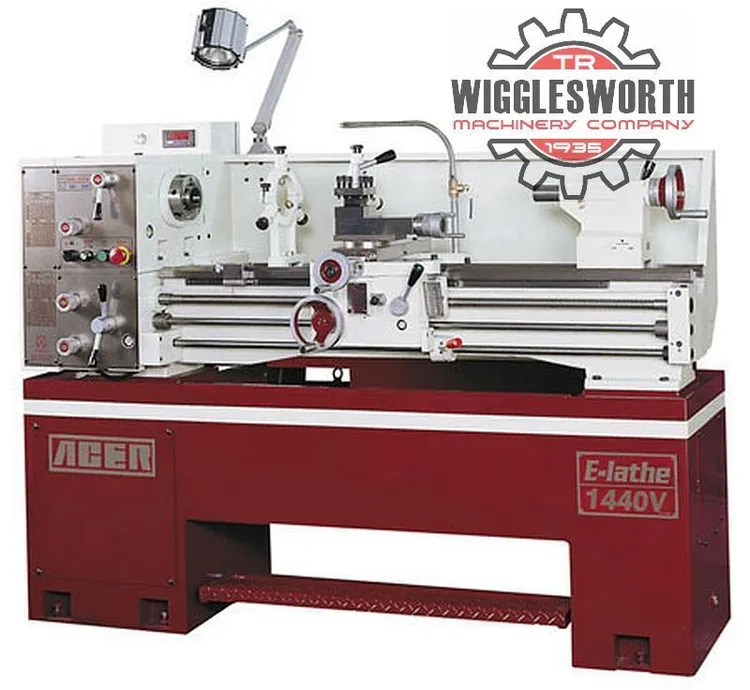

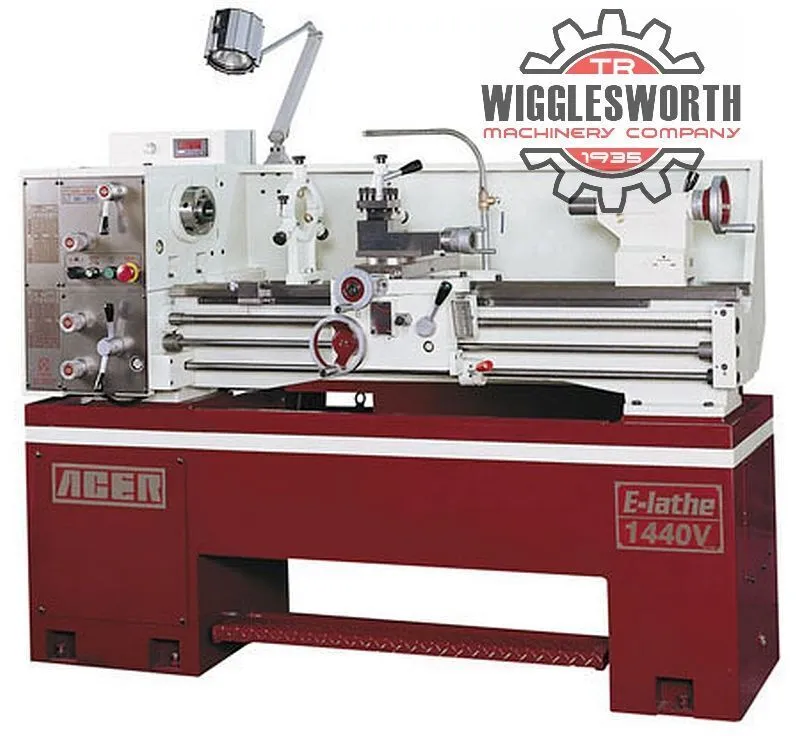

PACKAGE A INCLUDES: E-LATHE 1440V EQUIPPED WITH "NEWALL"
DP700 2-AXIS DIGITAL READOUT INSTALLED AT ACER FACILITY

PACKAGE B INCLUDES: E-LATHE 1440V EQUIPPED WITH "NEWALL"
E70 2-AXIS DIGITAL READOUT & C.S.S. INSTALLED AT ACER FACILITY

OPTIONAL ACCESSORIES:

"ALORIS" TOOL POST & 4 HOLDERS (#2-BS)
"ALORIS" TOOL POST & 6 HOLDERS (#2 SET)
"DORIAN" TOOL POST & 4 HOLDERS (SD30BXA-TS)
FOUR POSITION CARRIAGE STOP
5C COLLET CLOSER (LEVER-TYPE)
INSTALLATION FEE FOR COLLET CLOSER
TAPER TURNING ATTACHMENT
INSTALLATION FEE FOR TAPER TURNING ATTACHMENT
"NEWALL" DP700 2-AXIS DRO (8" X 40" TRAVEL)
"NEWALL" E70 2-AXIS DRO & CONSTANT SURFACE SPEED
"MAGNASCALE" 2-AXIS DRO (8" X 40" TRAVEL)
INSTALLATION FEE ON NEWALL DP700 OR MAGNASCALE DRO
INSTALLATION FEE ON NEWALL E70 DRO W/ CSS
UPGRADE TO 440V (3 PHASE) INVERTER DRIVE

** ABOVE PRICES ARE BASED ON F.O.B. PISCATAWAY, NJ
** PRICES AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
** MANUFACTURER RESERVES THE RIGHT TO MODIFY THE DESIGN WITHOUT NOTICE
