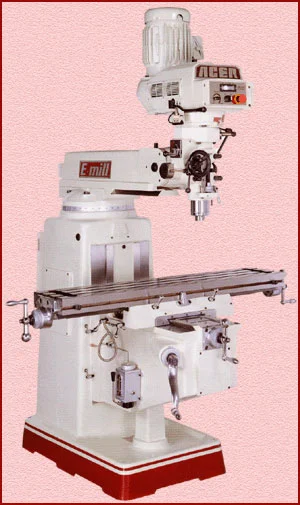

No. E-MILL 3VK, ACER,
STANDARD ACCESSORIES:
* 3 HP SPINDLE MOTOR WITH FREQUENCY INVERTER DRIVE
* LARGE DIGITAL SPINDLE RPM DISPLAY
* SPINDLE IS DESIGNED NOT TO TURN AUTOMATICALLY WHEN POWER IS RESTORED
AFTER POWER FAILURE
* PRECISION GRINDING HEAD HOUSING & RIGID GA-50 CASTING
* PRECISION R8 SPINDLE WITH ABEC-7 BEARINGS
* PRECISION X, Y, AXES & KNEE BY HARDENED & GROUND DOVETAIL
WAYS TO HRC 52 DEGREES
* 2 STEP ELECTRIC BRAKE & ONE SHOT MANUAL LUBE PUMP
SPECIFICATIONS:
TABLE:
TABLE SIZE ........................ 10" X 50"
LONGITUDINAL TRAVEL MANUAL ........ 34"
CROSS TRAVEL MANUAL ............... 16"
RAM TRAVEL ........................ 20"
VERTICAL KNEE TRAVEL .............. 16"
T-SLOT SIZE (3).................... 5/8"
TABLE LOAD......................... 850 LBS
MAX. TABLE HEIGHT ABOVE FLOOR...... 48 5/8"
TRAVEL:
X-AXIS MAX......................... 34"
Y-AXIS MAX......................... 16"
Z-AIXS MAX. / RAPID MAX............ 16"
SPINDLE NOSE TO TABLE.............. 1" - 16.9"
SPINDLE CENTER TO COLUMN FACE...... 4 1/4" - 28 1/4"
HEAD:
MAIN MOTOR......................... 3 HP
HEAD MOVES RIGHT TO LEFT........... */- 90 DEG.
HEAD TILTS FRONT TO BACK........... +/- 45 DEG.
SPINDLE:
SPINDLE DRIVE...................... INFINITELY VARIABLE AT 2 SPEED RANGE
SPINDLE SPEED...................... 0 - 4500 RPM
SPINDLE TAPER...................... R-8
QUILL:
QUILL TRAVEL ...................... 5"
QUILL DIAMETER CHROMED ............ 3 3/8"
QUILL POWER RATE .................. 0.0015", 0.003", 0.006"/ REV
NET WEIGHT ........................ 3,300 LBS
FLOORSPACE REQUIRED................ 84" x 120" x 96"
SHIPPING WEIGHT.................... 3,498 LBS
PRICE:
MODEL: E-MILL 3VK WITH STANDARD ACCESSORIES
SPECIAL PACKAGE PRICE:
MODEL: E-MILL 3VK SPECIAL PACKAGE PRICE
INCLUDES E-MILL "NEWALL DRO" (2-AXIS, 16"X 36" TRAVEL, 0.0002" SCALE)
AND ACER LONGITUDINAL POWER FEED INSTALLED AT ACER WAREHOUSE.
OPTIONAL ACCESSORIES:
NEWALL DRO (2-AXIS, 16"X 36" TRAVEL, 0.0002" RES. SCALE)
LONGITUDINAL/CROSS/KNEE POWER FEED
"SERVO" LONGITUDINAL FEED (M-9121-140/M-9108-150X)
"SERVO" CROSS FEED (M-9521-140/M-9521-150)
"SERVO" KNEE FEED (M-9811-200)
INSTALLATION FEE: CROSSFEED
INSTALLATION FEE: KNEE FEED
12" ROTARY TABLE (VERTICAL & HORIZONTAL)
COOLANT SYSTEM (NOT INSTALLED)
INSTALLATION FEE FOR COOLANT SYSTEM
CHIP PAN (52" X 35" X 6" 55 LBS)
CLAMPING KITS (52 PIECES)
R-8 COLLETS (1/8"-3/4", 11 PCS/SET)
6" ANGLE LOCK MILLING VISE
HORIZONTAL MILLING ATTACHMENT
MAXI-TORQUE AUTO-AIR POWER DRAW BAR (NOT INSTALLED)
INSTALLATION FEE FOR AUTO-AIR POWER DRAW BAR
N.S.T. #30 SPINDLE TAPER (REPLACE R-8 SPINDLE)
RISER BLOCK (4"/6"/8")
RISER BLOCK INSTALLATION FEE
UPGRADE FREQUENCY INVERTER (3 PHASE, 380V-520V)
UPGRADE TO UL CONFORMITY ELECTRIC CABINET
HALOGEN OR LED-L95 WORK LIGHT
*** ABOVE PRICES ARE BASED ON F.O.B. PISCATAWAY, NJ
*** PRICES AND DESIGN ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
*** MANUFACTURER RESERVES THE RIGHT TO MODIFY THE DESIGN WITHOUT NOTICE
