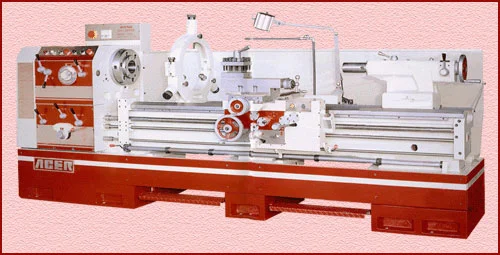

ACER DYNAMIC 29" SERIES HIGH SPEED PRECISION LATHE

FEATURES:

* THE 29" SERIES IS AVAILABLE IN 60", 80", 120", AND 160" DISTANCE
BETWEEN CENTERS
* 15 HP SPINDLE MOTOR
* HARDENED AND GROUND MEEHANITE CASTING BEDWAY
* HARDENED AND GROUND GEARS AND SPINDLE
* 12 SPINDLE SPEEDS (25-1,200 RPM)
* HEADSTOCK WITH MAGNETIC CLUTCH & ELECTRIC BRAKE
* D1-11 CAMLOCK WITH 4-1/8" SPINDLE BORE
* RAPID CROSSFEED & CARRIAGE TRAVERSE

SPECIFICATIONS:
GENERAL CAPACITY:
CENTER HEIGHT.................................... 14 3/4"
SWING OVER BED................................... 29 1/8"
SWING OVER GAP (GAP TYPE ONLY)................... 37 25/32"
SWING OVER CROSS SLIDE........................... 20 1/2"
DISTANCE BETWEEN CENTERS......................... 60"/80"/120"/160"
MAIN SPINDLE:
SPINDLE NOSE..................................... ASA 1-11 OR D1-11
SPINDLE BORE DIAMETER............................ 4 1/11"
TYPE OF SPINDLE NOSE............................. 108 X 1:12
TAPER OF CENTER.................................. MT 5
SPINDLE SPEEDS (12 STEPS)........................ 25 - 1200 RPM
CARRIAGE:
CROSS SLIDE TRAVEL............................... 18 1/4"
COMPOUND REST TRAVEL............................. 9"
MAX. SIZE CUTTING TOOL........................... 1" X 1"
TAILSTOCK:
SPINDLE DIAMETER................................. 3 1/32"
SPINDLE TRAVEL................................... 7"
TAPER OF CENTER.................................. MT 5
BED:
BED LENGTH....................................... 102"/122"/164"/205"
BED WIDTH........................................ 16 1/2"
WIDTH OF GAP..................................... 14 3/16"
THREADING & FEEDING:
SYSTEM........................................... INCH/METRIC
METRIC PITCH THREADS (31)........................ 0.5 - 14 MM
INCH PITCH THREADS (45).......................... 2 - 56 TPI
MODULE PITCH THREADS (23)........................ 0.25 - 7 MP
DIAMETRAL PITCH THREADS (43)..................... 4 - 112 DP
RANGE OF LINGITUDINAL FEEDS...................... 0.0012 - 0.0287 IPR
0.03 - 0.73 MM/REV
RANGE OF CROSS FEEDS............................. 0.0004 - 0.0118 IPR
0.01 - 0.03 MM/REV
POWER:
MAIN DRIVE MOTOR................................. 15 HP
RAPID TRAVERSE MOTOR (OPTIONAL).................. 1/2 HP
COOLANT PUMP MOTOR............................... 1/8 HP

STANDARD ACCESSORIES:

20" D1-11 FOUR JAW CHUCK 20" FACE PLATE
16" DRIVE PLATE BUILT-IN COOLANT SYSTEM
4-WAY TOOL POST LONGITUDINAL CARRIAGE STOP
CHUCK GUARD W/ EMERGENCY STOP HALOGEN WORK LIGHT
12" ADAPTOR PLATE TOOLBOX W/TOOLS
FOLLOW REST

ONE STEADY REST (3.1"-9.5" LONG TIP, BEARING TYPE)
(7.8"-14.5" SHORT TIP, BEARING TYPE)
FOLLOWABLE SPLASH GUARD (34" WIDE)
(60", 80" W/ FULL LENGTH SPLASH GUARD)

PRICING:

DYNAMIC 2960G
DYNAMIC 2980G
DYNAMIC 29120G
DYNAMIC 29160G

OPTIONAL ACCESSORIES (ADDITIONAL):

1. 24" 4-JAW INDEPENDENT CHUCK (D1-11) W/ DIRECT MOUNT
2. FOLLOW REST (0.4"-3.4")
3. FACE PLATE (24")
4. "ALORIS" TOOL POST & 4 HOLDERS (#5-BS)
5. "ALORIS" TOOL POST & 6 HOLDERS (#5-SET)
6. "DORIAN" TOOL POST WITH HOLDERS (SD50DA-TS)
7. MICROMETER STOP
8. SIX POSITION CARRIAGE STOP
9. TAPER TURNING ATTACHMENT
10. INSTALLATION FEE FOR TAPER TURNING ATTACHMENT
11. "NEWALL" 2-AXIS DRO (18" X 60" TRAVEL)
12. "NEWALL" 2-AXIS DRO (18" X 80" TRAVEL)
13. "NEWALL" 2-AXIS DRO (18" X 120" TRAVEL)
14. "NEWALL" 2-AXIS DRO (18" X 160" TRAVEL)
15. "MAGNESCALE" 2-AXIS DRO (18" X 60")
16. "MAGNESCALE" 2-AXIS DRO (18" X 80")
17. INSTALLATION FEE FOR DRO

**ABOVE PRICES ARE BASED ON F.O.B., CA
**PRICES AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT NOTICE
**MANUFACTURER RESERVES THE RIGHT TO MODIFY THE DESIGN WITHOUT NOTICE
