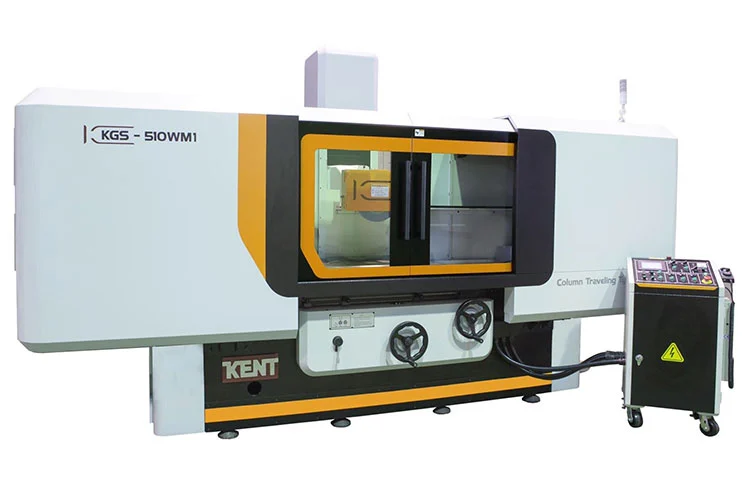

KENT MACHINERY, SURFACE GR., MODEL KGS-510WM1, CAP 20" X 40"
FEATURES:
3 AXIS AUTOMATIC MOVEMENT
"V" AND FLAT TURCITE TABLE WAYS
HYDRAULIC TABLE
PLC CONTROLLED CROSS FEED
AUTO INCREMENTAL DOWN FEED
COLUMN TRAVELLING CROSS FEED
CONSOLE SETTING CROSS FEED TRAVEL
TABLE PROXIMITY SWITCHES
AUTO RE-CIRCULATING LUBRICATION SYSTEM
*** NEW MITSUBISHI CONTROL & TOUCH-SCREEN TECHNOLOGY ***
SPECIFICATIONS:
CAPACITY:
OVERALL WORKING AREA............................ 40" X 20"
LONGITUDINAL TABLE TRAVEL....................... 45"
CROSS FEED SADDLE TRAVEL........................ 21.3"
DISTANCE SPINDLE CENTER TO TABLE................ 22.6"
TABLE LOAD INCLUDING MAGNETIC CHUCK............. 2200 LBS
TABLE & CROSSFEED:
T-SLOT.......................................... 5/8" X 3"
LONGITUDINAL TABLE SPEED........................ 24 - 82 FT/MIN
CROSSFEED ON HANDWHEEL.......................... 0.001" GRADUATION
REVOLUTION OF HANDWHEEL......................... 0.2 IPR
AUTO CROSS FEED PER STROKE...................... 0.02" - 0.47"
RAPID CROSS FEED................................ 60 IPM
ROUGH DOWN-FEED INCREMENT (SERVO DRIVE)......... 0 - 0.0099" PROGRAMMABLE
FINE DOWN-FEED INCREMENT (SERVO DRIVE).......... 0 - 0.0099" PROGRAMMABLE
SPARK-OUT TIME SETTING.......................... 0 - 9 TIMES
MPG RESOLUTION.................................. 0.0001"/0.001"
GRINDING WHEEL:
WHEEL DIMENSION (OD x T x ID)................... 14" x 1.5" x 5"
SPINDLE SPEED................................... 1740 RPM
VERTICAL MOVEMENT:
VERTICAL HAND WHEEL............................. 0.00005" GRADUTATION
VERTICAL HAND WHEEL REVOLUTION.................. 0.005 IPR
AUTO DOWN FEED INCREMENT (MINIMUM).............. 0.00005"
RAPID ELEVATING................................. 12 IPM
MOTOR:
SPINDLE MOTOR................................... 7.5 HP (220/440/60/3)
ELEVATION MOTOR (AC SERVO)...................... 0.8 HP
HYDRAULIC MOTOR................................. 3 HP (220/440/60/3)
CROSS FEED MOTOR................................ 190 WATT
NET WEIGHT...................................... 11,000 LBS
PACKING DIMENSIONS.............................. 139" X 85" X 89"
STANDARD ACCESSORIES: (INCLUDED)
* 20" x 40" ELECTRO-MAGNETIC CHUCK WITH CONSOLE BUILT-IN VARIABLE
POWER CHUCK CONTROL
* MAGNETIC SEPARATOR COOLANT SYSTEM OR PAPER FILTER COOLANT SYSTEM
* HYDRAULIC DRESSER
* PARALLEL DRESSER
* AUTOMATIC CYCLE WITH ROUGH & FINE FEEDING & SPARK-OUT TIME
* RETRACT SETTING
* PLC CROSS-FEED CONTROL
* SERVO DOWN-FEED WITH BALLSCREW
* ENCODER & MANUAL PULSE GENERATOR
* NEW STYLE ENCLOSURE GUARD
WHEEL BALANCING BASE WHEEL BALANCING ARBOR
GRINDING WHEEL WHEEL FLANCE
TABLE DRESSER TOOL BOX & TOOLS
HALOGEN WORK LAMP FULL LENGTH REAR GUARD
OPTIONAL ACCESSORIES:
COMBINATION MAG. SEPARATOR & PAPER FILTER COOLANT SYSTEM (M4)
EXTRA WHEEL FLANGE
HYDRAULIC OIL COOLER
TABLE SPLASH GUARD (REAR)
TERMS:
1. DETAILED SPECIFICATIONS - SEE CATALOGUE
2. WARRANTY OF MECHANICAL PARTS ARE ONE YEAR BASED ON ONE SHIFT NORMAL
WORKING CONDITIONS EXCLUDING MISUSE BY ULTIMATE CUSTOMERS
3. WARRANTY OF ELECTRICAL PARTS ARE NINETY DAYS
4. OUR RESPONSIBILITY CEASES WHEN DELIVERY IS MADE TO THE CARRIER AND
CLAIMS FOR LOSS OR DAMAGE MUST BE HANDELED BY PURCHASER AGAINST CARRIER
5. PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
6. PRICES ARE BASED ON C.I.F. LAX PORT
