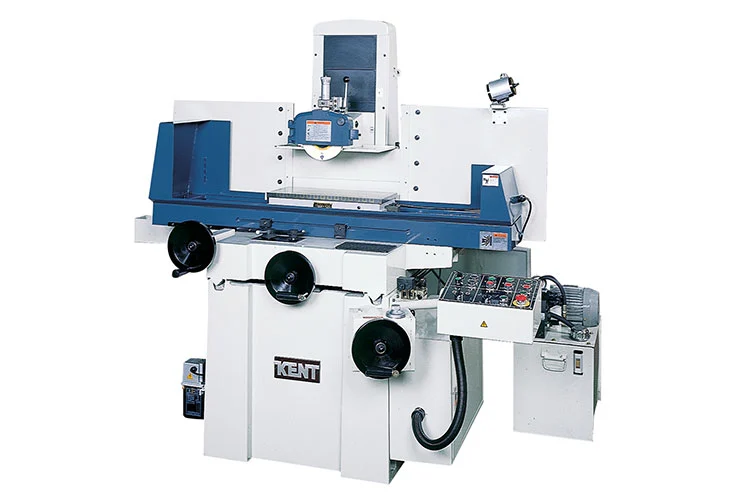

KENT MACHINERY MODEL KGS-1020AHD SURFACE GRINDER

FEATURES:
V & FLAT TURCITE TABLE WAYS
DOUBLE-V TURCITE CROSS WAYS
CAST IRON BASE
VERNIER DOWN-FEED GRADUATION DIAL
HYDRAULIC TABLE
SOLID STATE CONTROLLED CROSS-FEED
AUTO INCREMENTAL DOWN-FEED
CLASS-7 PAIRED & PRE-LOADED BEARING SPINDLE
AUTO. LUB. PUMP
VOLTAGE 220 OR 460

SPECIFICATIONS:

CAPACITY:
OVERALL WORKING AREA.......................... 20" X 10"
LONGITUDINAL TABLE TRAVEL..................... 23 1/4"
CROSS FEED SADDLE TRAVEL...................... 10 7/8"
DISTANCE SPINDLE CENTER TO TABLE.............. 19 1/4"
TABLE LOAD INCLUDING MAGNETIC CHUCK........... 660 LBS
TABLE & CROSS FEED:
T-SLOT........................................ 1/2" X 1"
LONGITUDINAL TABLE SPEED...................... 15 - 85 FPM
CROSSFEED ON HANDWHEEL........................ 0.001" GRADUATION
REVOLUTION OF HANDWHEEL....................... 0.2 IPR
AUTO CROSS FEED PER STROKE.................... 0.004" - 0.475"
POWER CROSS FEED.............................. 38 1/2 IPM
GRINDING WHEEL:
GRINDING WHEEL (OD x T x ID).................. 7" x 1" x 1 1/4"
SPINDLE SPEED................................. 3480 RPM
VERTICAL MOVEMENT:
VERTICAL HAND WHEEL........................... 0.0005" GRADUATION
VERTICAL HAND WHEEL REVOLUTION................ 0.1 IPR
AUTO DOWN FEED INCREMENT (10 STEPS)........... 0.0001" - 0.001"
MOTOR:
SPINDLE MOTOR................................. 3 HP
HYDRAULIC MOTOR............................... 2 HP
DUST COLLECTION MOTOR......................... 1/2 HP
COOLANT MOTOR................................. 1/8 HP
CROSS FEED MOTOR.............................. 40 WATT
MACHINE WEIGHT & DIMENSIONS:
MACHINE HEIGHT................................ 70"
FLOOR SPACE................................... 94" X 71"
PACKING DIMENSIONS (L x W x H)................ 88" X 66" X 83"
GROSS WEIGHT.................................. 3590 LBS

STANDARD ACCESSORIES: (INCLUDED)

* 2-AXIS KENT BRAND DIGITAL READOUT SYSTEM & MAGNETIC SCALE
* FULL LENGTH REAR SPLASH GUARD
* FRONT TABLE SPLASH GUARD
* OVERHEAD PARALLEL DRESSER
* HALOGEN WORK LIGHT
* 10" X 20" ELECTRIC MAGNETIC CHUCK AND "KENT" CHUCK CONTROL
* MAGNETIC SEPARATOR COOLANT SYSTEM

WHEEL BALANCING BASE X 1PC WHEEL BALANCING ARBOR X 1PC
GRINDING WHEEL X 1PC WHEEL FLANGE X 1PC
TABLE DRESSER X 1PC TOOLS & TOOL BOX X 1SET

OPTIONAL EQUIPMENT:
COMBINATION MAGNETIC SEPARATOR & PAPER COOLANT SYSTEM M2
FINE POLE ELECTROMAGNETIC CHUCK
EXTRA WHEEL FLANGE
TABLE SPLASH GUARD (REAR)

1. DETAILED SPECIFICATION -- SEE CATALOGUE.
2. WARRANTY OF MECHANICAL PARTS ARE ONE YEAR BASED ON ONE SHIFT NORMAL
WORKING CONDITION EXCLUDING MISUSE BY ULTIMATE CUSTOMERS. WARRANTY OF
ELECTRICAL PARTS ARE NINETY DAYS.
3. OUR RESPONSIBILITY CEASES WHEN DELIVERY IS MADE TO THE CARRIER, AND CLAIMS
FOR LOSS OR DAMAGED MUST BE HANDLED BY PURCHASER AGAINST CARRIER.
4. PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
5. PRICES ARE BASED ON F.O.B. WAREHOUSE IN SOUTH ELGIN, ILLINOIS.
