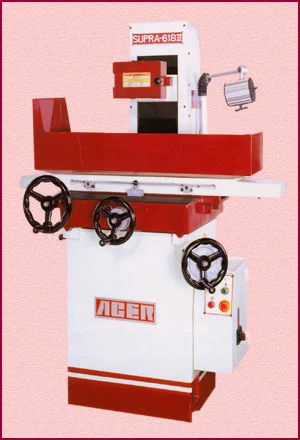

ACER HIGH PRECISION SURFACE GRINDER MODEL SUPRA-618-II

FEATURES:

* ELEVATING HANDWHEEL AT BASE OF THE MACHINE
* BALL ROLLING TABLE; BELT DRIVE
* AUTO LUBRICATOR; HIGH TENSILE MEEHANITE CASTING
* CAST IRON BASE: DOUBLE V "TURCITE-B" CROSSFEED WAY
* INDEXIBLE TABLE HANDWHEEL; WAIST-SIDE DOWNFEED MECHANISIM
* CE STANDARD ELECTRIC
* WORKING CAPACITY: 6" X 18"

SPECIFICATIONS:

TABLE SIZE........................................... 6" X 18"
LONGITUDINAL TRAVEL.................................. 20"
CROSS FEED TRAVEL.................................... 7 1/2"
SPINDLE CENTER TO TABLE.............................. 19 5/16"
WHEEL SPEED.......................................... 3450 RPM
GRINDING WHEEL....................................... 8" X 1/2" X 1 1/4"
VERTICAL GRADUATION.................................. 0.0001" (DIRECT DIAL)
SPINDLE MOTOR........................................ 3 HP (V3)
T-SLOT............................................... 1" X 3/8"
NET WEIGHT........................................... 1584 LBS

STANDARD ACCESSORIES (INCLUDED):

* WHEEL BALANCING BASE * WHEEL BALANCING ARBOR
* GRINDING WHEEL * WHEEL FLANGE
* DIAMOND DRESSER * HALOGEN WORK LIGHT
* TOOLBOX W/ TOOLS * SPLASH GUARD

OPTIONAL ACCESSORIES (ADDITIONAL):

ACER 6" X 18" PERMANENT MAGNETIC CHUCK
ACER 6" X 18" PERMANENT MAGNETIC CHUCK (FINE POLE)
ACER 6" X 18" ELECTRO FINE POLE CHUCK W/ CONTROL
WALKER 6" X 18" PERMANENT MAGNETIC CHUCK (FINE POLE)
WALKER 6" X 18" ELECTRO FINE POLE CHUCK W/ CONTROL
PARALLEL DRESSER (OVERHEAD MANUAL)
COOLANT SYSTEM
DUST SUCTION & COOLANT SYSTEM
COOLANT SYSTEM W/ PAPER FILTER
COOLANT SYSTEM W/ MAGNETIC SEPARATOR & PAPER FILTER
EXTRA WHEEL FLANGE
NEWALL 2-AXIS DRO (8" X 18" TRAVEL, 0.0001" RES.)
MAGNASCALE 2-AXIS DRO (8"X 18" TVL. 0.00002" RES.)
BRACKET AND INSTALLATION FEE FOR DRO
MICRO-DOWNFEED SYSTEM

*** ABOVE PRICES ARE BASED ON F.O.B. PISCATAWAY, NJ
*** PRICES AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT NOTICE
*** MANUFACTURER RESERVES THE RIGHT TO MODIFY THE DESIGN WITHOUT NOTICE
