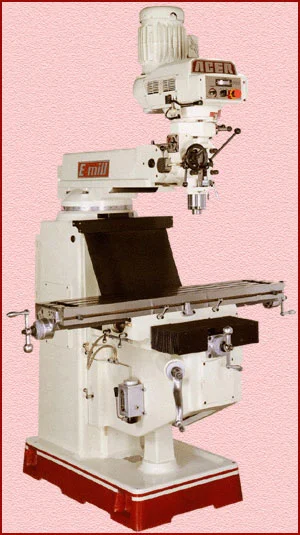

No. E-MILL 3VKH, ACER,
FEATURES:
* 3 HP SPINDLE MOTOR WITH FREQUENCY INVERTER DRIVE
* LARGE DIGIGAL SPINDLE RPM DISPLAY
* SPINDLE IS DESIGNED NOT TO TURN ON AUTOMATICALLY WHEN THE POWER IS
RESTORED AFTER POWER FAILURE
* PRECISION GRINDING HEAD HOUSING; ELECTRIC BRAKE
* PRECISION SPINDLE WITH ABEC-7 BEARINGS
* PRECISION X, Y, AXES & KNEE BY HARDENED & GROUND SQUARE
WAYS TO HRC 52 DEGREES
* RIGID MEEHANITE GA-50 CASTING; ONE SHOT LUBRICATOR
SPECIFICATIONS:
TABLE SIZE ........................ 10" X 50"
LONGITUDINAL TRAVERSE ............. 32 1/2"
CROSS TRAVERSE .................... 17"
RAM TRAVERSE ...................... 20"
VERTICAL TRAVERSE ................. 19"
QUILL TRAVEL ...................... 5"
QUILL DIAMETER CHROMED ............ 3 3/8"
QUILL POWER RATE .................. 0.0015", 0.003", 0.006"/ REV
SPINDLE TAPER ..................... R-8
SPINDLE MOTOR ..................... 3 HP
SPINDLE SPEED ..................... VARIABLE (0-500-4500 RPM)
NET WEIGHT ........................ 3,300 LBS
SPECIAL PACKAGE AVAILABLE:
INCLUDES E-MILL "NEWALL" 2-AXIS DRO (16"X 36" TRAVEL, 0.0002" SCALE)
AND ACER LONGITUDINAL POWER FEED INSTALLED AT ACER WAREHOUSE.
OPTIONAL ACCESSORIES:
"NEWALL" 2-AXIS DRO (16"X 36" TRAVEL, 0.0002" RES. SCALE)
LONGITUDINAL/CROSS/KNEE POWER FEED
"SERVO" LONGITUDINAL FEED (M-9121-140/M-9108-150X)
"SERVO" CROSS FEED (M-9521-140/M-9521-150)
"SERVO" KNEE FEED (M-9811-200)
INSTALLATION FEE: CROSSFEED
INSTALLATION FEE: KNEE FEED
12" ROTARY TABLE (VERTICAL & HORIZONTAL)
COOLANT SYSTEM (NOT INSTALLED)
INSTALLATION FEE FOR COOLANT SYSTEM
CHIP PAN (52" X 35" X 6" 55 LBS)
CLAMPING KITS (52 PIECES)
R-8 COLLETS (1/8"-3/4", 11 PCS/SET)
6" ANGLE LOCK MILLING VISE
HORIZONTAL MILLING ATTACHMENT
MAXI-TORQUE AUTO-AIR POWER DRAW BAR (NOT INSTALLED)
INSTALLATION FEE FOR AUTO-AIR POWER DRAW BAR
N.S.T. #30 SPINDLE TAPER (REPLACE R-8 SPINDLE)
RISER BLOCK (4"/6"/8")
RISER BLOCK INSTALLATION FEE
UPGRADE FREQUENCY INVERTER (3-PHASE, 380V - 520V)
HALOGEN OR LED-L95 WORK LIGHT
10" X 54" TABLE UPGRADE
UPGRADE TO UL CONFORMITY ELECTRIC CABINET
*** ABOVE PRICES ARE BASED ON F.O.B. PISCATAWAY, NJ
*** PRICES AND DESIGN ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
*** MANUFACTURER RESERVES THE RIGHT TO MODIFY THE DESIGN WITHOUT NOTICE
