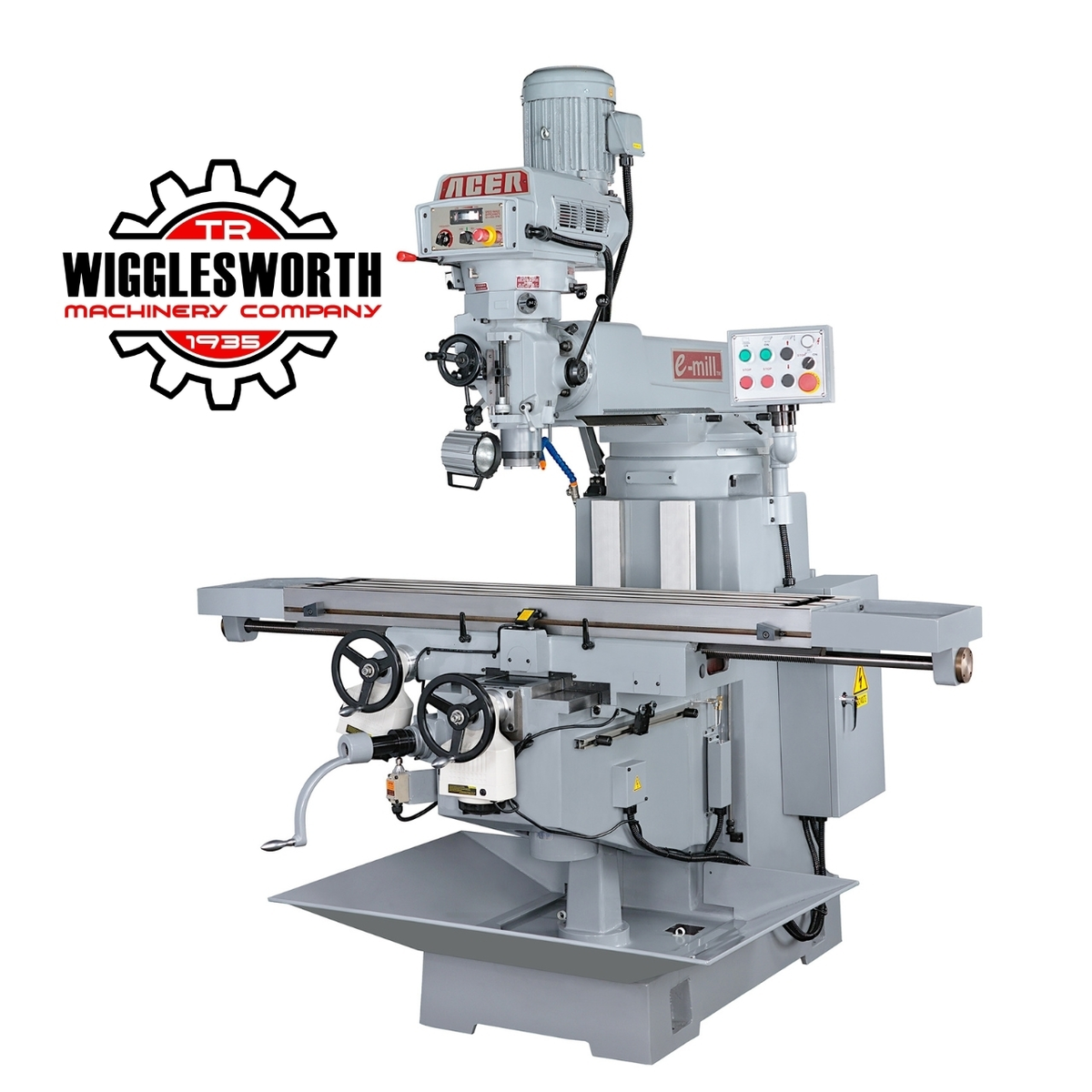

ACER E-MILL 6VK (IN STOCK NOW) VERTICAL MILLING MACHINE

STANDARD FEATURES:

* 5 HP SPINDLE INVERTER MOTOR WITH FREQUENCY INVERTER DRIVE
* 0 - 4500 RPM INFINITE SPINDLE SPEED
* LARGE DIGITAL SPINDLE RPM DISPLAY
* SPINDLE IS NO LONGER TURNED ON AUTOMATICALLY WHEN THE POWER IS
RESTORED AFTER POWER FAILURE
* PRECISION GRINDING HEAD HOUSING & RIGID MEEHANITE GA-50 CASTING
* PRECISION N.S.T. 40 SPINDLE WITH ABEC-7 BEARINGS
* POWER FEEDS ON X & Y AXES & ELEVATING MOTOR ON THE KNEE
* PRECISION X, Y AXES & KNEE BY HARDENED & GROUND SQUARE WAYS TO HRC 52 DEGREES
* 2-STEP ELECTRIC BRAKE
* ONE SHOT LUBE PUMP & CHIP PAN

SPECIFICATIONS:

TABLE SIZE ........................ 12" X 60"
LONGITUDINAL TRAVERSE ............. 47 1/4"
CROSS TRAVERSE .................... 15"
RAM TRAVERSE ...................... 16"
VERTICAL TRAVERSE ................. 19 3/4"
QUILL TRAVEL ...................... 5"
QUILL DIAMETER CHROMED ............ 4"
QUILL POWER RATE .................. 0.0015", 0.003", 0.006"/ REV
SPINDLE TAPER ..................... N.S.T. #40
SPINDLE MOTOR ..................... 5 HP
SPINDLE SPEED ..................... VARIABLE (0-500-4500 RPM)
NET WEIGHT ........................ 4,960 LBS

STANDARD ACCESSORIES (INCLUDED):
COOLANT SYSTEM
HALOGEN WORK LIGHT
X & Y POWER FEEDS
ELEVATING MOTOR ON THE KNEE
AUTOMATIC LUBRICATION SYSTEM
TOOL BOX WITH TOOLS
CHIP PAN
SAFTEY HANDWHEELS WITH HANDLES
ELECTRIC CABINET
ERGONOMIC CONTROL PANEL

OPTIONAL ACCESSORIES:

NEWALL DRO (2-AXIS, 15" X 47 1/4" TRAVEL, 0.0002 RES. SCALE)
12" ROTARY TABLE (VERTICAL & HORIZONTAL)
CLAMPING KITS (52 PIECES)
6" ANGLE LOCK MILLING VISE
HORIZONTAL MILLING ATTACHMENT
MAXI-TORQUE AUTO-AIR POWER DRAWBAR (NOT INSTALLED) AND SAFETY RING
INSTALLATION FEE ON POWER DRAWBAR & SAFETY RING
UPGRADE FREQUENCY INVERTER (380 V - 520 V 3-PHASE)
UPGRADE TO UL CONFORMITY ELECTRIC CABINET
4" RISER BLOCK
8" RISER BLOCK
RISER BLOCK INSTALLATION

*** ABOVE PRICES ARE BASED ON F.O.B. PISCATAWAY, NJ
*** PRICES AND DESIGN ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
*** MANUFACTURER RESERVES THE RIGHT TO MODIFY THE DESIGN WITHOUT NOTICE
