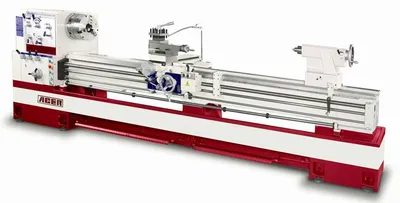

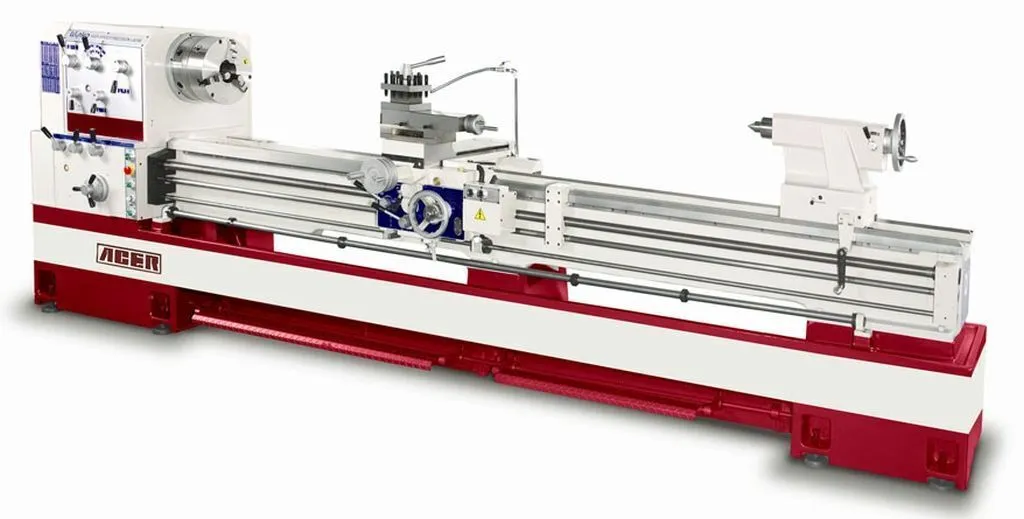

New ACER Dynamic-2280L Precision Engine Lathe

Have one to sell?
440-359-2655
Leads@wigglesworth.com
ConditionNew
Have one to sell?

Overview

Type:
LATHES, ENGINE_See also other Lathe Categories
Manufacturer:
ACER
Model:
Dynamic-2280L
Condition:
Build To Order
Stock #:
9936
Status:
For Sale

Description

Introducing the new ACER Dynamic-2280L Precision Engine Lathe. This lathe boasts a 22" swing, 78.7" between centers, and a 10 HP motor. With a spindle speed up to 1500 RPM and a 3.3" spindle bore, it features automatic feed, threading interlock, and enhanced precision. Upgrade with optional accessories.

Swing22"558.8 mm
Centers78.7"1,999 mm
Spindle Bore3.3"83.82 mm
Power10 hp7.5 kW
RPM1,500 RPM1,500 RPM
Swing Over Cross Slide13.4"340.36 mm
Dimensions137" x 41" x 50"137" x 41" x 50"
Weight6,393Lbs.6,393Lbs.

Specifications:
General Capacity:
• Swing over bed..........560 mm (22")
• Swing over gap..........788 mm (31")
• Swing over cross slide..........340 mm (13.4")
• Distance between centers..........2000 mm (78.7")
• Width of bed..........400 mm (15.7")
Headstock:
• Spindle nose..........D1-8 / D1-11 (Opt.)
• Spindle bore..........85 mm (3.3") or 115 mm (4.5") (Opt.)
• Spindle speeds..........15–1500 R.P.M. (12 steps) / 10–1000 R.P.M. (12 steps, Opt.)
• Taper of spindle bore..........MT 7
Threading:
• Inch threads range..........2–56 T.P.I.
• Metric threads range..........P 0.5–P 14
• Longitudinal feeds range..........0.05–0.82 mm / .002"–0.032"
• Cross feeds range..........0.02–0.40 mm / 0.0008"–0.016"
• Leadscrew diameter..........38 mm (1.5")
• Leadscrew pitch..........4 T.P.I. or 6 mm (0.24")
Carriage:
• Taper of tail center..........MT 5
• Compound rest travel..........200 mm (7.9")
• Cross slide travel..........375 mm (14.8")
Tailstock:
• Tail spindle travel..........165 mm (6.5")
• Tail spindle diameter..........85 mm (3.3")
Power:
• Main drive motor..........10 HP (7.5 KW) / 10HP (7.5 KW 6P Opt.)
• Coolant pump..........1/8 HP (0.1 KW)
Machine Dimensions
• Machine Dimensions..........347 x 103 x 126 cm / 137 x 41 x 50"
• Packing Dimensions..........356 x 115 x 194 cm / 140" x 45 x 76"
Weight:
• Net Weight..........2900 kgs / 6393 lbs
• Gross Weight..........3050 kg / 6724 lbs
***Note: The manufacturer reserves the right to modify specifications without notice. All specifications are for reference only.

Features:
• The 22" series is available in 40", 60", 80", 100", 120" and 160" distance between centers.
• 3.34" spindle bore with D1-8 spindle nose.
• 10 HP spindle motor for 220V / 440V / 3 phase / 60 Hz wiring.
• Spindle speed 15 - 1500 RPM for 3.34" bore; opt. 10 - 1000 RPM for 4.53" bore.
• Auto. feed & threading are interlocked to prevent simultaneous functions.
• Thermal treated Meehanite casting bed; bed hardness reaches HS70.
• Heat treated and precision ground alloy gears.
• Universal gearbox for both inch/metric thread & conversion chart.
• Automatic longitudinal multiple feed stop.
• Bed width 15.7"

Standard Accessories:
• Gap Bed
• Built-In Coolant System
• Face Plate
• Touch-up Paint, Toolbox with Tools
• Operations Manual
• 4-Way Tool Post
• Halogen Work Light

Optional Accessories:
• Upgrade to 4.53" bore (D1-11 nose w/ 15 HP spindle motor)
• 20" 4-jaw independent chuck (4.53" spindle bore)
• Follow rest: Bronze tip (0.78" - 3.93")
• 20" face plate (D1-11)
• "Aloris" tool post & 4 holders (#5-BS)
• "Aloris" tool post & 6 holders (#5-SET)
• "Dorian" tool post & 4 holders (SD50 DA-TS)
• Micrometer stop
• Four position carriage stop
• Taper turning attachment
• Installation fee for taper turning attachment
• 5C collet closer (lever-type)
• Installation fee for collet closer
• 5C collet set (1/16" - 1 1/16" x 16ths; 17 pcs/set)
• "Magnescale" 2-axis dro (12" x 80")
• "Newall" 2-axis dro (14" x 80")

*** Above prices are based on F.O.B. port of entry
*** Prices and designs are subject to change without notice.
*** Manufacturer reserves the right to modify the design without notice.

Overview

Type:
LATHES, ENGINE_See also other Lathe Categories
Manufacturer:
ACER
Model:
Dynamic-2280L
Condition:
Build To Order
Stock #:
9936
Status:
For Sale

Description

Introducing the new ACER Dynamic-2280L Precision Engine Lathe. This lathe boasts a 22" swing, 78.7" between centers, and a 10 HP motor. With a spindle speed up to 1500 RPM and a 3.3" spindle bore, it features automatic feed, threading interlock, and enhanced precision. Upgrade with optional accessories.

Long Description

T.R. Wigglesworth Machinery Co. has proudly represented the ACER group (Klim industrial) for more than Twenty years now, along with the factory in Taiwan.

Acer pursues excellence in (4) four main areas: Quality, Value, Service, Availability. Acer Machines are superior in quality, fit and finish. The proposals we offer are highly competitive. ACER offers product support in the field, and on the phone.

Allow T.R. Wigglesworth Machinery Co to propose the right ACER product to meet your requirements today.

The Acer Dynamic Lathe series are high-speed, precision-geared head engine lathes renowned for their robust construction, exceptional durability, and precision engineering capabilities. Built with high-tensile cast iron, these machines are designed to withstand demanding industrial environments and are a reliable choice for a wide range of machining operations, from intricate parts for aerospace to heavy-duty automotive components.

Key Features & Specifications:

  • Robust Construction: The headstock and bed are crafted from high-tensile FC25 or thermal-treated Meehanite cast iron, which undergoes an annealing process to prevent deformation and ensure lasting rigidity and durability. The bedways are hardened and ground to Rockwell C 55, further enhancing wear resistance.
  • High-Performance Spindle: Featuring powerful motors (ranging from 3 HP to 15 HP depending on the model) and precision taper roller bearings, the spindle system offers a wide range of speeds for versatile material processing. Spindle bores are available in various sizes (e.g., 2-1/4", 3.1", 4.53") to accommodate diverse workpiece diameters.
  • Precision Gearing: The headstock features hardened and ground alloy gears, and a uniquely designed universal gearbox allows for a comprehensive range of inch and metric threading without the need for changing gears.
  • Operator Safety & Convenience: Safety features are integrated throughout the design, including interlocked auto. feed and threading functions to prevent simultaneous engagement, a safety overload clutch, and a mechanical drum-type brake for fast, reliable spindle stops.
  • Enhanced Durability: Key sliding surfaces, such as the saddle, are coated with Turcite-B for superior wear resistance. An electro-trochoid pump force-feeds lubrication oil to all internal headstock components, minimizing maintenance needs.
  • Versatile Functionality: These lathes are suitable for shaping, drilling, sanding, knurling, and cutting operations on various materials, including steel and aluminum.
  • Optional Accessories: The machine can be upgraded with a variety of options, including 2-axis Digital Read Outs (DRO) systems (Magnescale or Newall), taper turning attachments, follow rests, and a range of chuck options to meet specific production requirements.

Ideal For:

The Acer Dynamic series is ideal for job shops, manufacturing facilities, and educational institutions seeking a reliable, high-precision manual lathe capable of handling both general-purpose and intricate turning operations with consistency and power.

Specifications

Imperial

Swing22"
Centers78.7"
Spindle Bore3.3"
Power10 hp
RPM1,500 RPM
Swing Over Cross Slide13.4"
Dimensions137" x 41" x 50"
Weight6,393Lbs.

Specifications:
General Capacity:
• Swing over bed..........560 mm (22")
• Swing over gap..........788 mm (31")
• Swing over cross slide..........340 mm (13.4")
• Distance between centers..........2000 mm (78.7")
• Width of bed..........400 mm (15.7")
Headstock:
• Spindle nose..........D1-8 / D1-11 (Opt.)
• Spindle bore..........85 mm (3.3") or 115 mm (4.5") (Opt.)
• Spindle speeds..........15–1500 R.P.M. (12 steps) / 10–1000 R.P.M. (12 steps, Opt.)
• Taper of spindle bore..........MT 7
Threading:
• Inch threads range..........2–56 T.P.I.
• Metric threads range..........P 0.5–P 14
• Longitudinal feeds range..........0.05–0.82 mm / .002"–0.032"
• Cross feeds range..........0.02–0.40 mm / 0.0008"–0.016"
• Leadscrew diameter..........38 mm (1.5")
• Leadscrew pitch..........4 T.P.I. or 6 mm (0.24")
Carriage:
• Taper of tail center..........MT 5
• Compound rest travel..........200 mm (7.9")
• Cross slide travel..........375 mm (14.8")
Tailstock:
• Tail spindle travel..........165 mm (6.5")
• Tail spindle diameter..........85 mm (3.3")
Power:
• Main drive motor..........10 HP (7.5 KW) / 10HP (7.5 KW 6P Opt.)
• Coolant pump..........1/8 HP (0.1 KW)
Machine Dimensions
• Machine Dimensions..........347 x 103 x 126 cm / 137 x 41 x 50"
• Packing Dimensions..........356 x 115 x 194 cm / 140" x 45 x 76"
Weight:
• Net Weight..........2900 kgs / 6393 lbs
• Gross Weight..........3050 kg / 6724 lbs
***Note: The manufacturer reserves the right to modify specifications without notice. All specifications are for reference only.

Features:
• The 22" series is available in 40", 60", 80", 100", 120" and 160" distance between centers.
• 3.34" spindle bore with D1-8 spindle nose.
• 10 HP spindle motor for 220V / 440V / 3 phase / 60 Hz wiring.
• Spindle speed 15 - 1500 RPM for 3.34" bore; opt. 10 - 1000 RPM for 4.53" bore.
• Auto. feed & threading are interlocked to prevent simultaneous functions.
• Thermal treated Meehanite casting bed; bed hardness reaches HS70.
• Heat treated and precision ground alloy gears.
• Universal gearbox for both inch/metric thread & conversion chart.
• Automatic longitudinal multiple feed stop.
• Bed width 15.7"

Standard Accessories:
• Gap Bed
• Built-In Coolant System
• Face Plate
• Touch-up Paint, Toolbox with Tools
• Operations Manual
• 4-Way Tool Post
• Halogen Work Light

Optional Accessories:
• Upgrade to 4.53" bore (D1-11 nose w/ 15 HP spindle motor)
• 20" 4-jaw independent chuck (4.53" spindle bore)
• Follow rest: Bronze tip (0.78" - 3.93")
• 20" face plate (D1-11)
• "Aloris" tool post & 4 holders (#5-BS)
• "Aloris" tool post & 6 holders (#5-SET)
• "Dorian" tool post & 4 holders (SD50 DA-TS)
• Micrometer stop
• Four position carriage stop
• Taper turning attachment
• Installation fee for taper turning attachment
• 5C collet closer (lever-type)
• Installation fee for collet closer
• 5C collet set (1/16" - 1 1/16" x 16ths; 17 pcs/set)
• "Magnescale" 2-axis dro (12" x 80")
• "Newall" 2-axis dro (14" x 80")

*** Above prices are based on F.O.B. port of entry
*** Prices and designs are subject to change without notice.
*** Manufacturer reserves the right to modify the design without notice.
