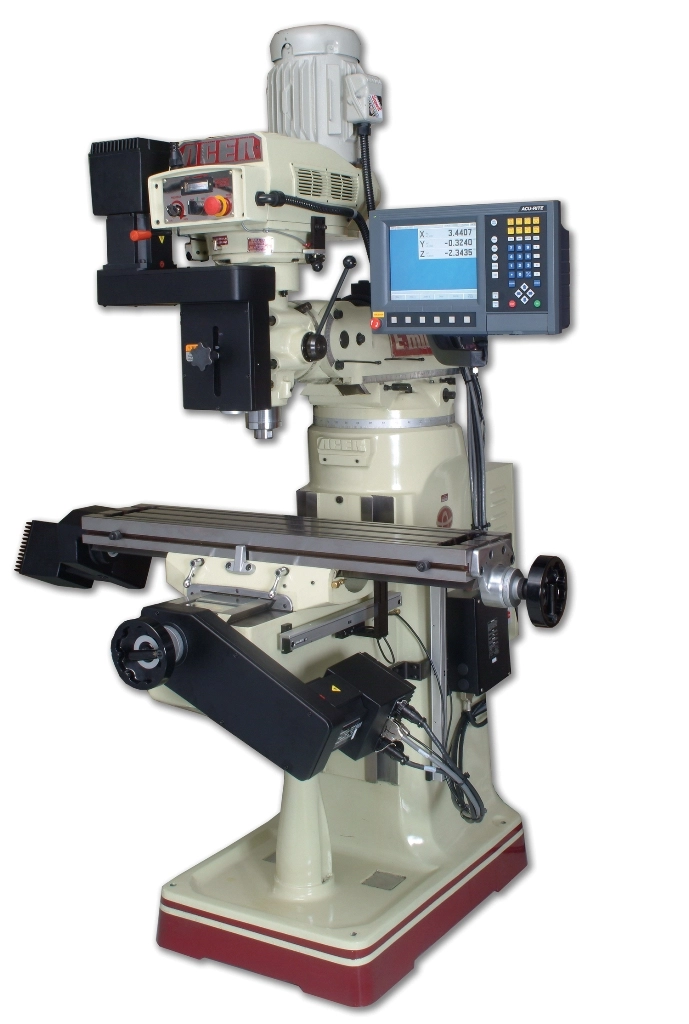

ACER Supra CNC, E-mill Milling Machine w/ "ACU-RITE" MILLPWR G2 2-AXIS

THE PACKAGE INCLUDES:

* ACER E-MILL HIGH PRECISION MILLING MACHINE
* "ACU-RITE" MILLPWR G2 CONTROL FOR 2-AXIS AND 3-AXIS DRO
* REMOTE START / STOP SWITCH

ULTRA HIGH QUALITY ACER E-MILL MILLING MACHINE:

* 3-HP (3VS-II, 3VK, 3VKH) OR 5HP (5VK) SPINDLE INVERTER MOTOR
* LARGE DIGITAL SPINDLE RPM DISPLAY
* INFINITE 0 - 4500 RPM SPEED AC FREQUENCY DRIVE
* SPINDLE IS DESIGNED TO TURN ON AUTOMATICALLY WHEN POWER IS RESTORED
AFTER POWER FAILURE
* TURCITE-B COATED SLIDEWAY AND GIBS REDUCE METAL WEAR
* MEEHANITE CASTING & AUTOMOTIVE PAINT
* RUGGED 9" X 49" TABLE ON 3VS-II
* STANDARD 10" X 50" TABLE ON 3VK/3VKH/5VK
* OPTIONAL 10" X 54" TABLE UPGRADE ON 3VKH AND 5VK
* 1" BALL SCREWS WITH CASTED MOUNTING BRACKETS
* HARDENED & GROUND X/Y/Z AND TABLE SURFACES TO HRC 52 DEGREES
* DUAL KNEE, TABLE, AND SADDLE LOCKS
* R-8 SPINDLE W/ABEC-7 BEARINGS ON 3VS-II, 3VK, 3VKH
* N.S.T. #40 SPINDLE WITH ABEC-7 BEARINGS ON 5VK MODEL
* PRECISION 3-3/8" HARD CHROMED QUILL AT HRC 62 DEGREES ON 3VS-II, 3VK, AND 3VKH
* PRECISION 4" HARD CHROMED QUILL AT HRC 62 DEGREES ON 5VK
* MAX. LOAD ON TABLE: 750 LBS. ON 3VS-II; 850 LBS ON 3VK, 3VKH, 5VK

CONTROL SOFTWARE FEATURES:

* ABS/INC
* TOOL LIBRARY
* INCH / METRIC
* POLAR / CARTESIAN
* RECTANGLE (POCKET, FRAME, SLOT, FACE)
* CIRCLE (POCKET, FRAME, RING)
* DXF CONVERTER FOR G-CODE
* 12.1" COLOR LCD FLAT PANEL DISPLAY
* ENGRAVING: 3 FONT TYPES
* INTERACTIVE ICON BASED CONVERSATIONAL PROGRAMMING
* HOLE PATTERS (BOLT CIRCLE, ARRAY, FRAME, ROW)
* REPEAT, ROTATE, MIRROR IMAGE, ENGRAVING
* POSITION / DRILL
* LINES / DIAGONALS / ARCS
* BLENDS (CORNER RADIUS)
* CUSTOM POCKETS
* USER FRIENDLY: FILL IN THE BLANKS & START
* (3) 29 IN/LB DC BRUSH SERVO MOTORS
* BUILT-IN 512 MB CF WITH 999 BLOCK CAPACITY
* NUMEROUS CANNED CYCLES IN CONVERSATIONAL

PRICE: EMILL W/ 2-AXIS ACU-RITE MILLPWR G2 CNC CONTROL:

E-MILL 3VS-II W/ MILLPWR CONTROL (9" X 49")
E-MILL 3VK W/ MILLPWR CONTROL (10" X 50")
E-MILL 3VKH W/ MILLPWR CONTROL (10" X 50")
E-MILL 5VK W/ MILLPWR CONTROL (10" X 50")

OPTIONAL ACCESSORIES:

6" MILLING VISE
12" ROTARY TABLE (VERTICAL & HORIZONTAL)
T-SLOT COVER
CLAMPING KITS (52 PCS)
AUTO LUBRICATOR W/ TIMER
UPGRADE FREQUENCY INVERTER 440V/3-PH
UPGRADE TO 10" X 54" TABLE (FOR 3VKH & 5VK)
"TORQUE-RITE" POWER DRAWBAR ASSEMBLY (3VS-II/3VK/3VKH)
"TORQUE-RITE" POWER DRAWBAR ASSEMBLY WITH SAFETY RING (5VK)
INSTALLATION FEE FOR AUTO. POWER DRAWBAR ASSEMBLY
COOLANT SYSTEM (NOT INSTALLED)
INSTALLATION FEE FOR COOLANT SYSTEM
CHIP PAN (FOR 3VS-II)/(FOR 3VK, 3VKH,5VK)
HALOGEN OR LED-L95 WORK LIGHT
R8 COLLET SET (FOR R8 SPINDLE; 11PCS/SET WITH 1/8" INCREMENT;1/8"~ 3/4"
RISER BLOCK (4"/6"/8") INSTALLATION FEE:
UPGRADE TO UL CONFORMITY ELECTRIC CABINET

CNC OPTIONAL ACCESSORIES:
EDGE FINDER PROBE, ENGLISH / METRIC (.500" SHANK, .200" PROBE
QUILL DISENGAGE KIT & QUILL DRO
INSTALLATION FEE ON QUILL DISENGAGE KIT & QUILL DRO
ONE DAY ON-SITE PROGRAM TRAINING (ACCOMMODATIONS NOT INCL.)
PLUS $60/HR/TRAVEL

***ABOVE PRICES ARE BASED ON F.O.B. PISCATAWAY, NJ
***PRICES AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT NOTICE
***MANUFACTURER RESERVES THE RIGHT TO MODIFY THE DESIGN WITHOUT NOTICE
