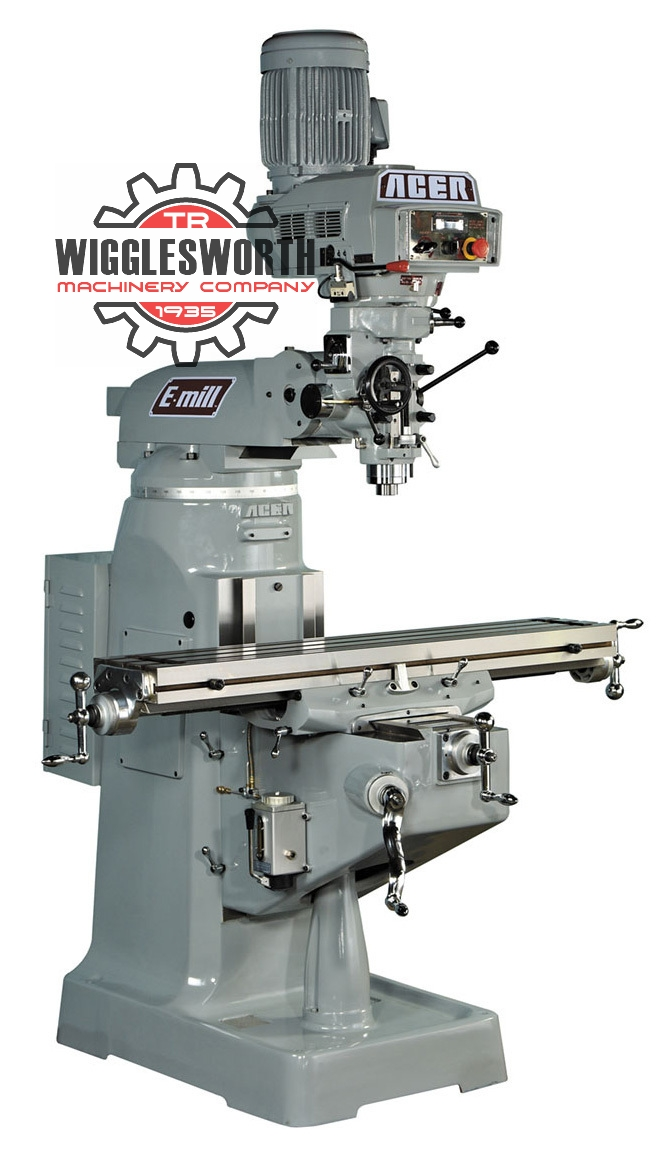

3VS-II, ACER E-MILL, Available to be optioned w/ Power draw bar, Newall Digital Readouts
Servo Brand Power feeds, Work Vises, Schedule Delivery Now...........
FEATURES:
*3 HP SPINDLE INVERTER MOTOR WITH FREQUENCY INVERTER DRIVE
*LARGE DIGITAL SPINDLE RPM DISPLAY
*SPINDLE IS DESIGNED NOT TO TURN ON AUTOMATICALLY WHEN THE POWER IS RESTORED
AFTER A POWER FAILURE
*PRECISION GRINDING HEAD HOUSING; ELECTRIC BRAKE
*PRECISION SPINDLE WITH ABEC-7 BEARINGS
*CHROME PLATED & PRECISION GROUND SPINDLE QUILL
*PRECISION X, Y AXES & KNEE BY HARDENED & GROUND DOVETAIL WAYS TO HRC 52 DEG
*RIGID MEEHANITE GA-50 CASTING: ONE SHOT LUBRICATOR
SPECIFICATIONS:
TABLE SIZE................................. 9" X 49"
LONGITUDINAL TRAVERSE...................... 34"
CROSS TRAVERSE............................. 12"
RAM TRAVERSE............................... 12"
VERTICAL TRAVERSE.......................... 16"
QUILL TRAVEL............................... 5"
QUILL DIAMETER CHROMED..................... 3 3/8"
QUILL POWER RATE........................... 0.0015"
0.003", 0.006"/REV
SPINDLE TAPER.............................. R-8
SPINDLE MOTOR.............................. 3 HP
SPINDLE SPEED (VARIABLE SPEED)............. 60 - 500 - 4500 RPM
NET WEIGHT................................. 2380 LBS
SPECIAL PACKAGE INCLUDES:
NEWALL DRO (2-AXIS, 12" X 30" TRAVEL, 0.0002" SCALE) AND
ACER LONGITUDINAL POWER FEED & PRE-INSTALLATION
AT ACER WAREHOUSE
OPTIONAL ACCESSORIES:
"NEWALL" DRO (C70, 2-AXIS, 12" X 30" TRAVEL, 0.0002" RES. SCALE)
"A CLASS" FEED POWER LONGITUDINAL/CROSS/KNEE
"SERVO" LONGITUDINAL FEED (M-9121-140/M-9121-150X)
"SERVO" CROSS FEED (M-9521-140/M-9521-150)
"SERVO" KNEE FEED (M-9811-200)
INSTALLATION FEE: CROSS FEED / KNEE FEED
12" ROTARY TABLE (VERTICAL & HORIZONTAL)
COOLANT SYSTEM (NOT INSTALLED)
INSTALLATION FEE FOR COOLANT SYSTEM
CHIP PAN (52" X 31" X 6"; 49 LBS)
CLAMPING KITS (52 PIECES)
R-8 COLLETS (1/8" - 3/4"; 11 PCS/SET)
6" ANGLE LOCK MILLING VISE
HORIZONTAL MILLING ATTACHMENT
MAXI-TORQUE AUTO-AIR POWER DRAW BAR (NOT INSTALLED)
INSTALLATION FEE FOR AUTO-AIR POWER DRAW BAR
N.S.T. #30 SPINDLE TAPER (REPLACE R-8 SPINDLE)
RISER BLOCK (4"/6"/8")
INSTALLATION FEE FOR RISER BLOCK
UPGRADE FREQUENCY INVERTER (3 PHASE; 380V - 520V)
HALOGEN WORK LIGHT
UPGRADE TO UL COMFORMITY CABINET
***ABOVE PRICES ARE BASED ON F.O.B. PISCATAWAY, NJ
***PRICES AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT NOTICE
***MANUFACTURER RESERVES THE RIGHT TO MODIFY THE DESIGN WITHOUT NOTICE
