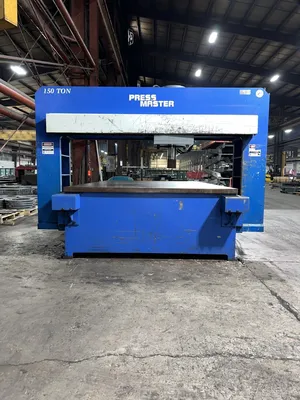

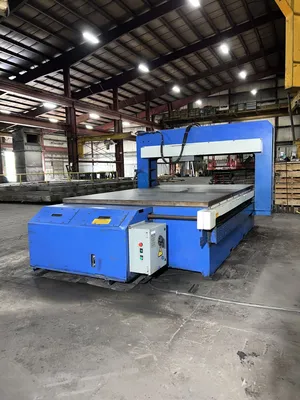

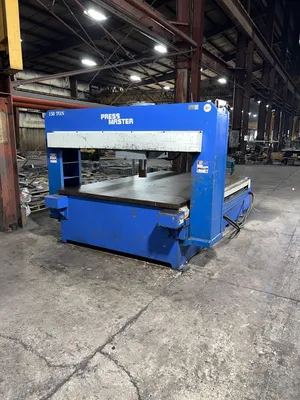

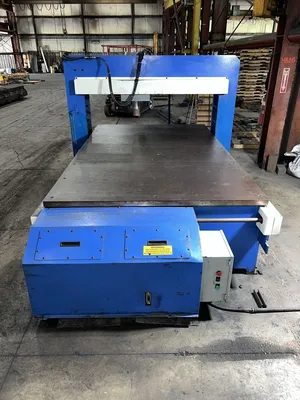

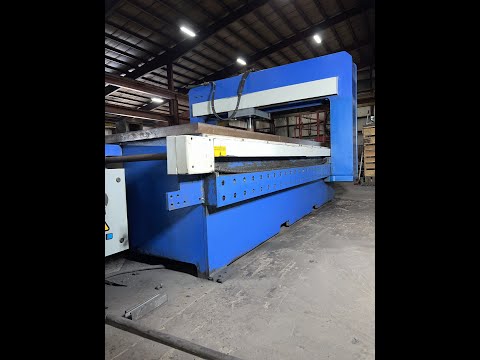

150 TON PRESSMASTER Traveling Column Fully Adjustable Ram Head Straightening Press

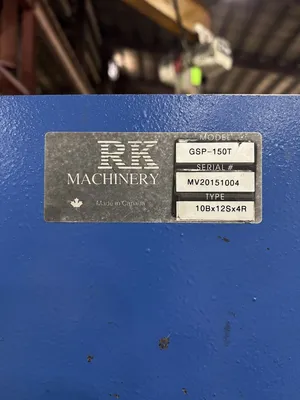

MOEL: GSP-150T / 68

SPECIFICATIONS:

RATED CAPACITY, TONNAGE.............. 150
STROKE............................... 12"
BORE................................. 10"
RAM SPEED PRESS...................... 6 IPM
ADVANCE.......................... 24 IPM
RETURN........................... 28 IPM
TABLE SIZE (RIGHT TO LEFT)........... 72"
TABLE SIZE (FRONT TO BACK)........... 96"
DAYLIGHT............................. 15.5"
RAM TRAVEL (LEFT TO RIGHT)........... 56"

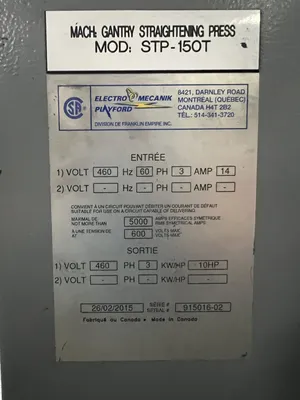

MOTOR SPECS (230/460/575 AVAILABLE).. 10 HP / 3 PHASE
WEIGHT............................... 16,000 LBS
SHIPPING DIMENSIONS.................. 102" L x 132" W x 80" H

STANDARD FEATURES:

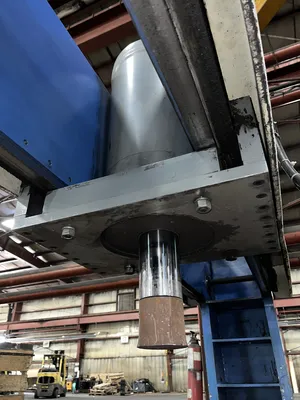

- POWERED MOVEABLE WORKHEAD - FOR OFF CENTER WORK ALLOWS OPERATOR TO
POSITION THE CYLINDER FROM LEFT TO RIGHT AND FRONT TO BACK WITH THE
TOUCH OF A LEVER.

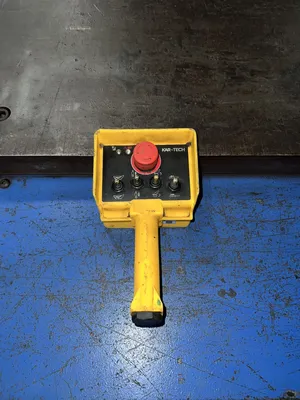

- CYLINDER ACTIVATION - IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER
IS ENGAGED THE MORE THE RAM MOVEMENT IS ACCELERATED, THIS ALLOWS THE
OPERATOR TO CONTROL THE PROPER SPEED FOR THE TASK.
- PRESSURE REGULATOR - LIMITS RAM PRESSURE
- FLAT RAM NOSE - CAN BE EASILY CHANGED TO ALLOW THE USER TO ADAPT THE
PRESS TO A SPECIFIC JOB
- LOW PRESSURE - HYDRAULIC SYSTEM MAINTAINS LOWER OIL TEMPERATURES,
RESULTING IN HIGHER EFFICIENCY AND SAFER OPERATION
- ALL HYDRAULIC AN MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY, AND
AVAILABLE THROUGHOUT NORTH AMERICA
- OPTIONAL MOVEABLE PEDESTAL C/W HEIGHT ADJUSTMENT FOR EASE AND COMFORT OF
OPERATOR
