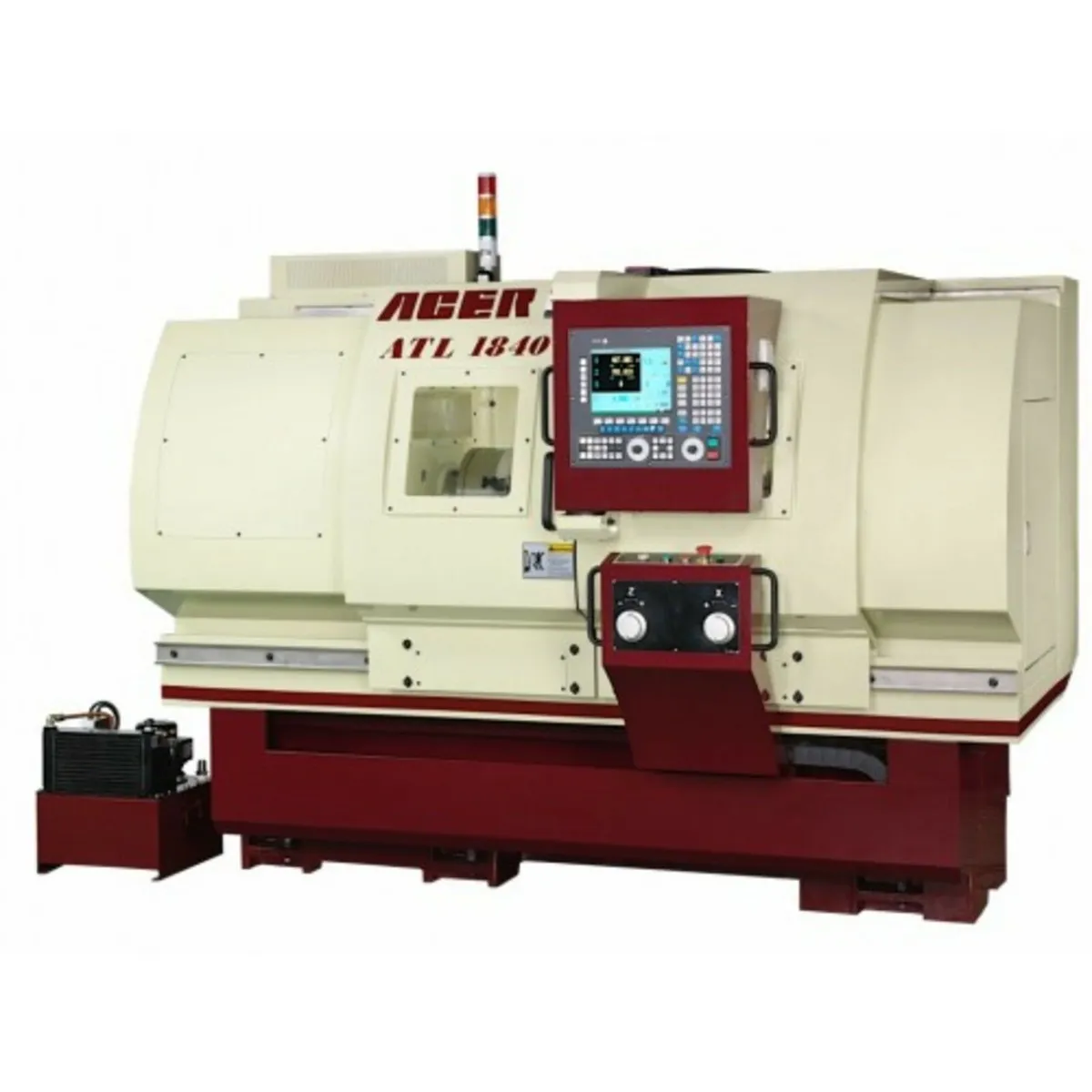

ACER ATL 1840E FLAT BED CNC TEACH LATHE

FEATURES:
* 10 HP SINGLE SPEED SPINDLE MOTOR FOR 3 PHASE 60 HZ WIRING
* HARDENED AND GROUND MEEHANITE CASTING BEDWAY
* HARDENED AND GROUND GEARS AND SPINDLE
* 2 GEAR RANGES: LOW - 60 - 6,000 RPM; HIGH - 601 - 3,000 RPM
* D1-6 CAMLOCK WITH 2.2" SPINDLE BORE
* "FAGOR" 8055 i/A-TC CONTROL
* CONSTANT SURFACE SPEED
* MANUAL - TEACH - CNC MODES
* DUAL MPG HANDWHEEL
* C3 BALL SCREW ON X-AXIS & C5 BALL SCREW ON Z-AXIS
* LASER CALIBRATION ON ALL AXES

SPECIFICATIONS:
WORKING CAPACITY:
SWING OVER BED.......................................... 18.11"
SWING OVER CROSS SLIDE.................................. 9.06"

MAX. CUTTING LENGTHS:
4-WAY TOOL POST / H4 ELECTRIC TURRET; SPINDLE W / 3
JAW CHUCK CENTER TO CENTER............................. 30.71"
V8 ELECTRIC TURRET: SPINDLE W / 3 JAW CHUCK TO CENTER... 27.56"
CENTER TO CENTER........................................ 35.43"

MAX. CUTTING DIAMETERS:
4-WAY TOOL POST / H4 ELECTRIC TURRET.................... 18.11"
V8 ELECTRIC TURRET...................................... 18.11"

MAX. WEIGHT LOADING BETWEEN CENTER TO CENTER............ 1254 LBS
CENTER HEIGHT........................................... 9.06"
WIDTH OF BED............................................ 11.81"

HEADSTOCK & MAIN SPINDLE:
RANGE OF SPINDLE SPEEDS:
HIGH.................................................... 601 - 3000 RPM
LOW..................................................... 60 - 600 RPM
SPINDLE NOSE; INTERNAL TAPER............................ A1-6 1:20
SPINDLE BORE............................................ 2.20"

CROSS-SLIDE & CARRIAGE:
CROSS SLIDE TRAVEL (X-AXIS)............................. 11.02"
LONGITUDINAL TRAVEL (Z-AXIS)............................ 31.89"
AC SERVO (X AND Z-AXES)................................. 6.3 NM
DIAMETER OF BALL SCREW (X-AXIS)......................... 0.98" P5 C3
DIAMETER OF BALL SCREW (Z-AXIS)......................... 1.57" P10 C5
RAPID TRAVEL SPEED (X-AXIS)............................. 196.85 IPM
RAPID TRAVEL SPEED (Z-AXIS)............................. 275.59 IPM

TURRET:
TOOL STATION - MANUAL 4 WAY POST ELECTRIC H4 TURRET ELECTRIC V8 TURRET
SIZE OF CUTTING TOOL .98" .98" .79"
BORING BAR DIAMETER .98"
TAILSTOCK:
QUILL DIAMETER.......................................... 2.28"
QUILL TRAVEL............................................ 6.69"
QUILL TAPER............................................. MT #4
MOTOR:
MAIN SPINDLE............................................ 10 HP
FORCED LUBE PUMP FOR HEADSTOCK.......................... 1/4 HP
COOLANT PUMP............................................ 1/6 HP

TANK CAPACITY (APPROX.):
COOLANT TANK W/ CHIP TRAY (OPT.)........................ 12.42 GAL.

MEASUREMENTS:
WEIGHT (NET / GROSS).................................... 4620 / 5500 LBS
PACKING DIMESIONS (L x W x H)........................... 90.2" x 57.9" x 67"

STANDARD ACCESSORIES (INCLUDED):
HALOGEN WORK LIGHT COOLANT SYSTEM
TOOL BOX WITH TOOLS AUTOMATIC LUBRICATION SYSTEM
FULLY ENCLOSED SPLASH GUARD MANUAL TAILSTOCK

CONTROL CAPABILITIES:
USE AS A DRO FOR MANUAL MODE POWERFUL CNC FULL AUTO MODE
NO PROGRAMMING EXPERIENCE REQUIRED ELECTRIC HANDWHEEL FOR SEMI-AUTO MODE
PROGRAM IN TEACH MODE CONVERSATIONAL OR G-CODE PROGRAMMING
PROGRAM W/ CANNED CYCLES MINIMUM SET-UP TIME

PRICE:
ACER ATL 1840E FLAT BED CNC TEACH LATHE.......... $49,820.00

OPTIONAL ACCESSORIES:
8" 3-JAW CHUCK (D1-6) W/ DIRECT MOUNT................... 450.00
10" 3-JAW INDEPENDENT CHUCK (D1-6) W/ DIRECT MOUNT...... 550.00
12" 4-JAW INDEPENDENT CHUCK............................. 700.00
STEADY REST W/ ROLLERS (20 - 160mm)..................... 450.00
FOLLOW REST (25 - 90mm)................................. 300.00
FACE PLATE (14")........................................ 500.00
"ALORIS" TOOL POST & 4-HOLDER SET (#3 - BS)............. 1,000.00
"ALORIS" TOOL POST & 6-HOLDER SET (#3 - SET)............ 1,300.00
"DORIAN" TOOL POST & 4-HOLDER SET....................... 1,000.00
FOUR WAY TOOL POST...................................... 500.00
H4 ELECTRIC TOOL POST (C6140)........................... 4,200.00
ON-SITE TRAINING (ACCOMIDATIONS EXTRA).................. 800.00/ DAY
