THE PACKAGE INCLUDES:

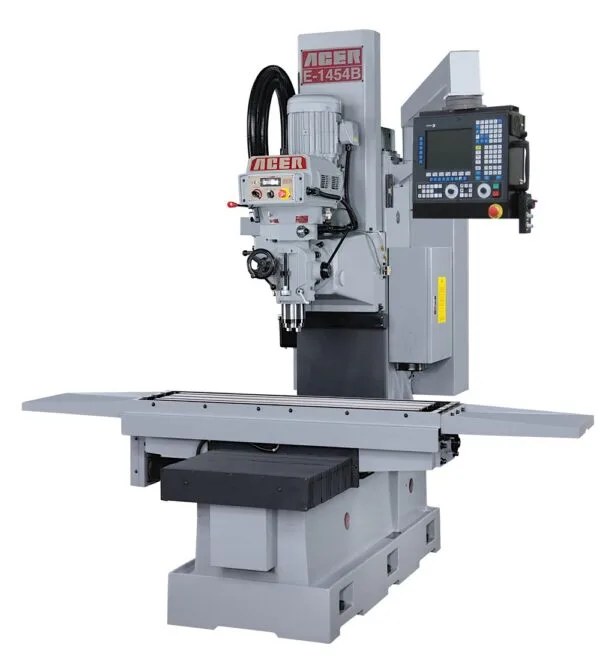

* ACER 1454E "SWIVEL HEAD" BED-MILL
* "FAGOR" 8055i/FL-MC 3 OR 4-AXIS CNC CONTROL
* AUTO LUBE SYSTEM
* C5 BALL SCREWS AND DOUBLE-END THRUST BEARING SET

ULTRA HIGH QUALITY ACER E-MILL MILLING MACHINE:

* SPINDLE MOTOR: 5HP INVERTER MOTOR
* INFINITE 0 - 4,500 RPM SPEED
* "TOSHIBA" VECTOR TYPE FREQUENCY INVERTER
* PRECISION 4" DIAMETER HARD CHROMED QUILL AT HRC 62 DEGREES
SPECIFICATIONS:
*HRC 52 DEGREE HARDENED AND GROUND TABLE
*TURCITE-B COATED SLIDEWAY AND GIBS TO PROLONG MACHINE LIFE
*PRECISION CAT# 40 SPINDLE W/ ABEC-7 BEARINGS
*MEEHANITE CASTING
*AUTOMOTIVE PAINT
*RUGGED 14" X 54" TABLE SIZE
*1" DIAMETER BALL SCREWS WITH CASTED MOUNTING BRAKCETS
*HARDENED AND GROUND X,Y, & Z-AXES AND TABLE SURFACES TO HRC 52 DEGREES
*X,Y,Z TRAVEL: 40" X 22.44" X 26.77"
*MAX. LOAD ON TABLE: 1,960 LBS.
*MACHINE WEIGHT: 6,336 LBS. GROSS
FAGOR 8055i/FL-MC 3 OR 4-AXIS CONTROL SOFTWARE FEATURES:

* INTERACTIVE ICON BASED CONVERSATIONAL PROGRAMMING SYSTEM
* ONE-SCREEN - ONE OPERATION, FILL IN THE BLANKS & PRESS CYCLE TO START
* NO LIMIT TO THE NUMBER OF PROGRAMS IN MEMORY
* BUILT-IN MINI CAD/CAM SYSTEM
* 11" COLOR TFT LCD SCREEN
* NUMEROUS CANNED CYCLES IN CONVERSATIONAL AN G-CODE
* (3) 31 IN/LB AC BRUSHLESS SERVO MOTORS & DRIVES
* FLASH MEMORY (1 MB FLASH RAM / 512 MB CF); 2GB CF OPTIONAL (POR)
* USB MEMORY PORT STANDARD; ETHERNET OPTIONAL (POR)
* WINDNC (DXF CONVERTER) AND ENGRAVING OPTIONAL (POR)
* SMART Z-AXIS QUILL FOR CNC AND MANUAL MODE WITH SALE-FED DRO FEEDBACK
OPTIONAL (POR)
* FULL CNC PACKAGE INCLUDES BALL SCREWS AND MOTOR BRACKETS FOR ALL AXES
* "FAGOR" 8055i/FL-MC CNC'S GIVE YOU 4TH AXIS CAPABILITY OUT OF THE BOX

SPECIFICATIONS:
HEAD MOVEMENT............................................... SWIVEL
SPINDLE:
QUILL DIAMETER.............................................. 4"
QUILL TRAVEL................................................ 5"
SPINDLE SPEED............................................... 0 - 4,500 RPM
SPINDLE MOTOR............................................... 5 HP
TRAVEL:
X-AXIS MAX / RAPID FEED..................................... 40" / 200 IPM
Y-AXIS MAX / RAPID FEED..................................... 22.44" / 200 IPM
Z-AXIS MAX / RAPID FEED..................................... 26.77" / 200 IPM
SPINDLE NOSE TO TABLE....................................... 1" - 27.75"
SPINDLE CENTER TO COLUMN SURFACE............................ 21.3"
TABLE:
TABLE SIZE.................................................. 14" X 54"
TABLE LOAD.................................................. 1,960 LBS
APPROX GROSS WEIGHT......................................... 6,336 LBS
APPROX. PACKING DIMENSIONS.................................. 91" X 79" X 89"

CNC OPTIONAL ACCESSORIES:

PROGRAMMABLE RPM
MANUAL PULSE GENERATOR
REMOTE START/STOP SWITCH
HOME POSITION SWITCH FOR HOME & FIXTURE OFFSET
ONE DAY ON-SITE TRAINING (PER DAY + ACCOMIDATIONS EXTRA)

MACHINE OPTIONAL ACCESSORIES:

"MAXI-TORQUE-RITE" AUOT. AIR POWER DRAW BAR & SAFETY RING
INSTALLATION FEE FOR POWER DRAW BAR & SAFETY RING
12" ROTARY TABLE (VERTICAL & HORIZONTAL)
T-SLOT COVER
CHIP PAN: 56" (L) X 57" (W) X 8" (H)
REAR SPLASH GUARD SET (RIGHT & LEFT)
TABLE GUARD FOR 14" X 54" TABLE
CLAMPING KITS (52 PCS)
6" MILLING VISE
COOLANT SYSTEM
INSTALLATION FEE FOR INTEGRATING COOLANT SYS TO CNC CONTROL
8" ROTARY TABLE W/ INTEGRATED 4-AXIS DRV & MOTOR (SPCL. ORDER)
TAILSTOCK FOR ROTARY TABLE (SPCL. ORDER)
UPGRADE FREQUENCY INVERTER (440V / 3-PH)
UPGRADE TO TELESCOPIC STEEL WAY COVER
HALOGEN OR LED L-95 WORK LIGHT

PRICE:
ACER SWIVEL HEAD BED-MILL 1454E W/ 8055 3-AXIS CNC CONTROL
ACER SWIVEL HEAD BED-MILL 1454E W/ 8055 4-AXIS CNC CONTROL

*** ABOVE PRICES ARE BASED ON PORT OF ENTRY
*** MACHINE IS SUBJECT TO OCEAN FRIEGHT SURCHARGE
*** PRICES AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
*** MANUFACTURER RESERVES THE RIGHTS TO MODIFY THE DESIGN WITHOUT NOTICE.

PAYMENT TERMS:

30% DOWN WITH PURCHASE ORDER
BALANCE DUE PRIOR TO SHIPPING OR NET 30 UPON CREDIT APPROVAL

NOTE: PLEASE ALLOW 2-4 WEEKS TO INSTALL AND TEST RUN THE MACHINE AFTER RECEIVING ORDER AND DOWN PAYMENT
