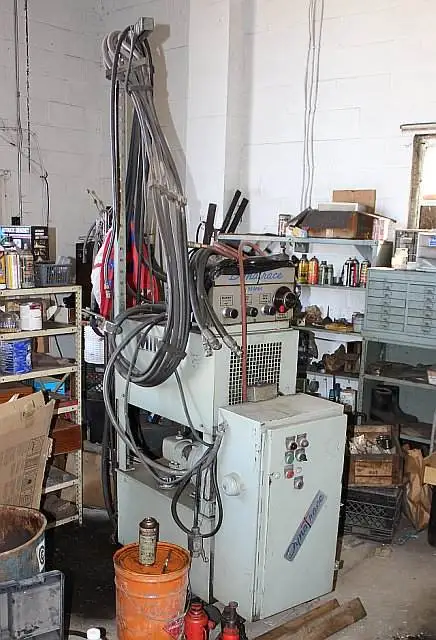

MIMIK 180A, DYNATRACE, HYDRAULIC TRACER UNIT
CONSISTS OF THE FOLLOWING PARTS AND SYSTEMS:
HYDRAULIC DRIVE UNITS (MOTOR, GEARBOX AND ELECTRICAL CLUTCH) FOR
VERTICAL AND HORIZONTAL SLIDES
180 A TRACER VALVE
SWIVELING VALVE ARM
TEMPLATE RAIL AND MOUNTING BRACKET
HYDRAULIC CONTROL CONSOLE WITH 8 MODE SELECTOR, AND TRACE & FEED
RATE CONTROLS
HYDRAULIC POWER UNIT
ELECTRICAL PANEL
ELECTRICAL REQUIREMENTS: 220/440/3/60
EQUIPPWD WITH:
20 GALLON RESERVOIR WITH 12 GALLON PER MINUTE VARIABLE DELIVERY PUMP,
FILTERS AND PRESSURE GAUGE
SPECIFICATIONS SUBJECT TO VERIFICATION
